Поз.
Артикул
Описание

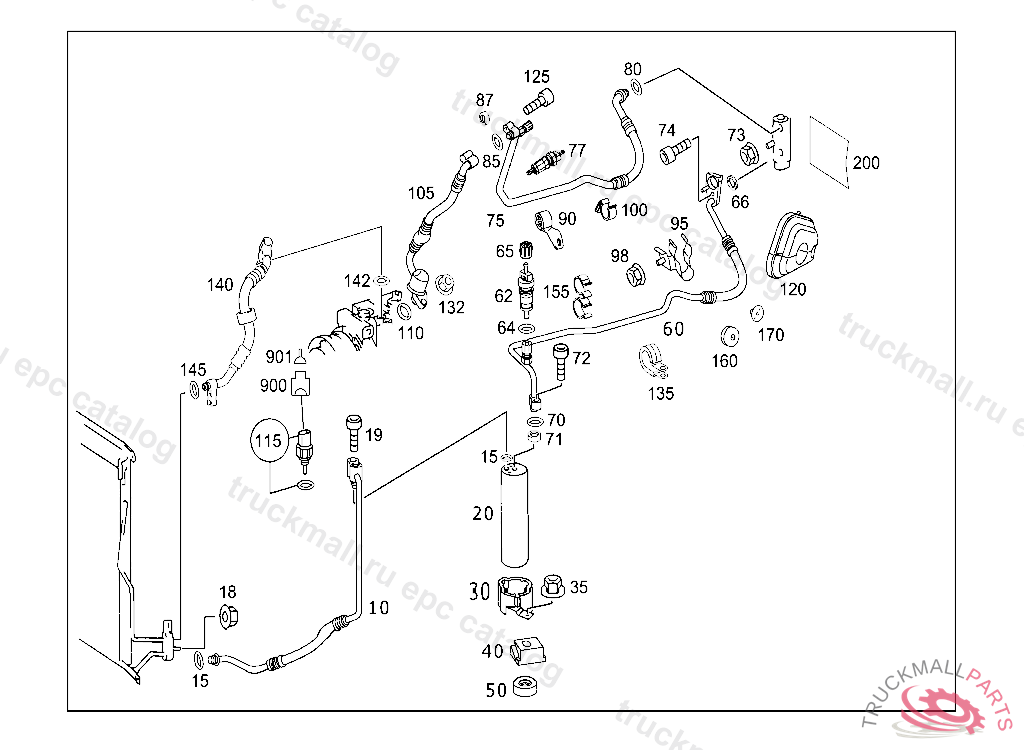

10
PIPELINE FROM CONDENSER TO LIQUID TANK, F 10996620050623806
15
O-RING. SEAL RING9.5 X 2.5
18
NUT , Replaced By: N913023006001
19
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
20
DASHPOT
30
BRACKET LIQUID TANK
35
NUT , Replaced By: N913023006001
40
PAD AT BRACKET
50
PAD BRACKET TO BODY
60
PIPELINE REFRIGERANT LINE FROM LIQUID RESERVOIR TO EXPANSION VALVE
60
PIPELINE REFRIGERANT LINE FROM LIQUID RESERVOIR TO EXPANSION VALVE
62
VALVE INSERT TO REFRIGERANT LINE OF COMPRESSOR TO CONDENSER
64
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
65
CAP
66
O-RING. SEAL RING9.5 X 2.5
70
O-RING. SEAL RING9.5 X 2.5
71
GUIDE PRESSURE LINE TO CONDENSER
72
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
73
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
74
HEXALOBULAR BOLT. SCREW BRACKET TO CHARGE AIR DISTRIBUTOR LINE M 6X20
75
PIPELINE FROM EXPANSION VALVE SEPARATION POINT, F 10996620050623806 F 16464420100531
75
PIPELINE FROM EXPANSION VALVE SEPARATION POINT, F 10996620050623806 F 16464420100531
80
SEAL RING HOSE TO CONDENSER 14 MM
85
SEAL RING SUCTION LINE 13.7X2.5 MM, Replaced By: A0139974745
90
CLAMPING PIECE FROM EXPANSION VALVE SEPARATION POINT
95
BRACKET A/C LINES TO PARTITION WALL
98
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
100
BRACKET RETURN TO RADIATOR TANK
105
PIPELINE SEPARATION POINT TO COMPRESSOR
110
SEAL RING
115
PRESSURE SENSOR
115
PRESSURE SENSORM 10, Replaced By: A0045429018
115
PRESSURE SENSORM 10, Replaced By: A2110000283
120
GROMMET IN PARTITION WALL FOR A/C LINES
132
NUT , Replaced By: N913023006001
140
PIPELINE FROM COMPRESSOR TO CONDENSER
142
SEAL RING FROM LIQUID TANK TO T-FITTING
145
O-RING. SEAL RING9.5 X 2.5
160
GROMMET MOUNTING, REFRIGERANT LINE
170
FASTENER BUTTON AT SOLENOID VALVE,A 258245
200
COVER EXPANSION VALVE
900
CLUTCH. PIN BUSHING HOUSING SIREN
900
SOCKET HOUSING. PIN BUSHING HOUSING POLLUTANT SENSOR, A 698508 X 012426 EXEPT FOR VEHICULES WITH CODE 808 ALSO INSTALLED IN VEHICLE TO A 698507, X 012425 WITH CODE 809
901
GASKET YELLOW 0.2-0.5MM2,126373
901
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
