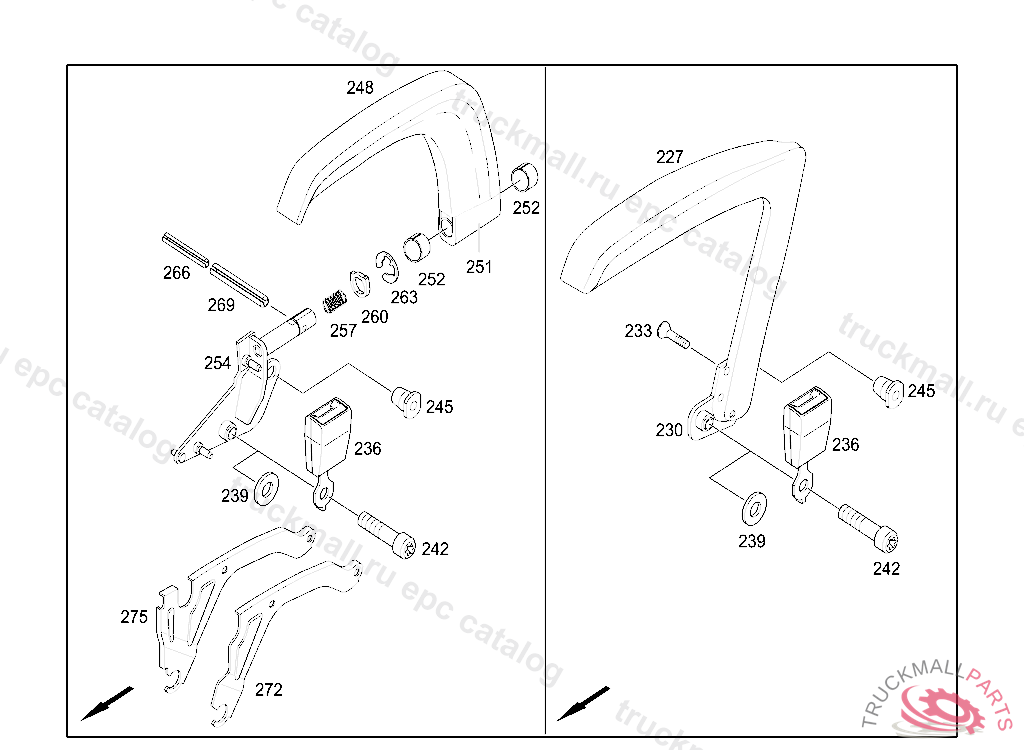

O350 TOURISMO-SHD O 403-SHD EURO2 - 613.385 - 97 SEAT ACCESSORIES
Поз.
Артикул
Описание
227
PAD ON SIDE OF WALL,RIGHT
227
PAD ON SIDE OF WALL,LEFT
230
PLATE ON SIDE OF WALL,LEFT
230
PLATE ON SIDE OF WALL,RIGHT
233
SCREW
236
FASTENER
239
WASHER
239
WASHER HYDRAULIC CYLINDER TO ROCKER ARM
242
SCREWM10X32MM
245
PIN
248
ARMREST LESS COVER LEFT
248
ARMREST LESS COVER RIGHT
251
CAP RIGHT
251
CAP LEFT
252
BUSHING
254
SUPPORT RIGHT
254
SUPPORT LEFT
257
SPRING
260
BUSHING
263
LOCK PLATE
266
ROLL PIN3,5 X 22
269
ROLL PIN6X22MM
