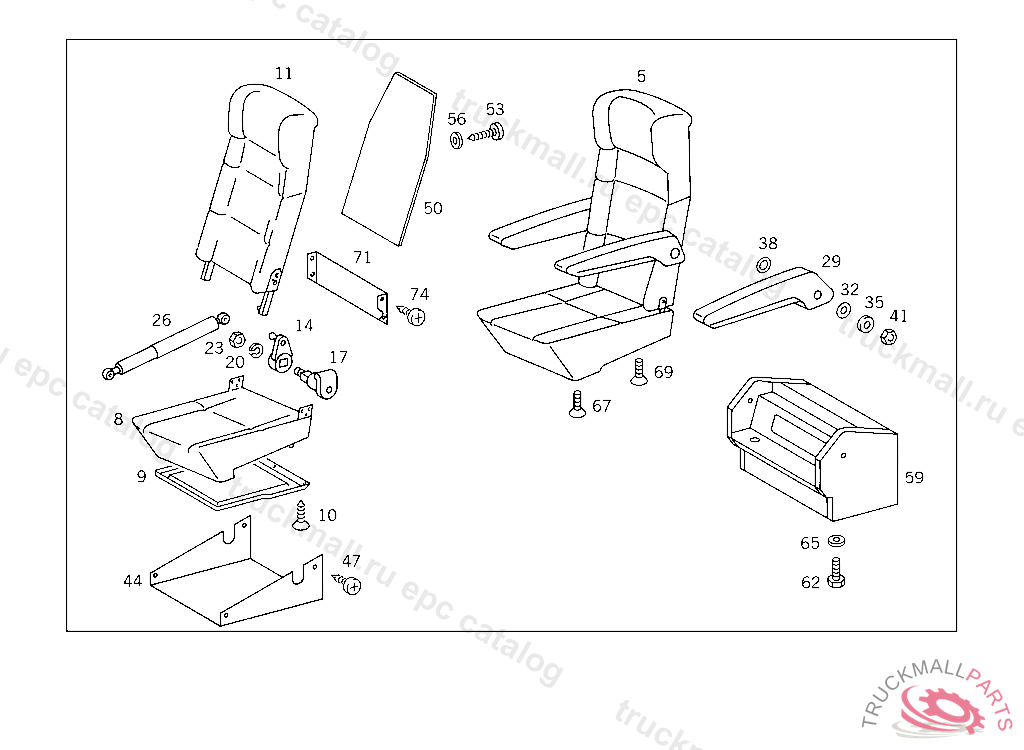

O350 TOURISMO-SHD O 403-SHD EURO2 - 613.385 - 91 FRONT SEATS
Поз.
Артикул
Описание
5
FOLDING SEAT (CO-DRIVERS SEAT), DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
8
SEAT CUSHION
9
PANELLING
10
SHEET METAL SCREW
11
BACKREST
14
LEVER
17
SUPPORT RIGHT
17
SUPPORT LEFT
20
LOCK WASHER RAIL TO BATTERY SUPPORT
23
NUT
26
SPRING
29
FOLDING ARMREST RIGHT
29
FOLDING ARMREST LEFT
32
WASHER
35
WASHER
38
WASHER
38
WASHER
41
NUT , Replaced By: N308675014001
41
NUT JOINT TO BRACKET
41
HEXAGON NUT
44
PANELLING
47
SCREW
50
PANELLING
53
SHEET METAL SCREW
56
WASHER
59
CONSOLE CO-DRIVER'S SEAT
62
SCREW , Replaced By: N304017010043
65
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
65
WASHER , Replaced By: N009021010209
65
WASHER BRACKET TO COVERING
67
SCREW
69
SCREWM 8 X 25
71
COVERING
74
SCREW
