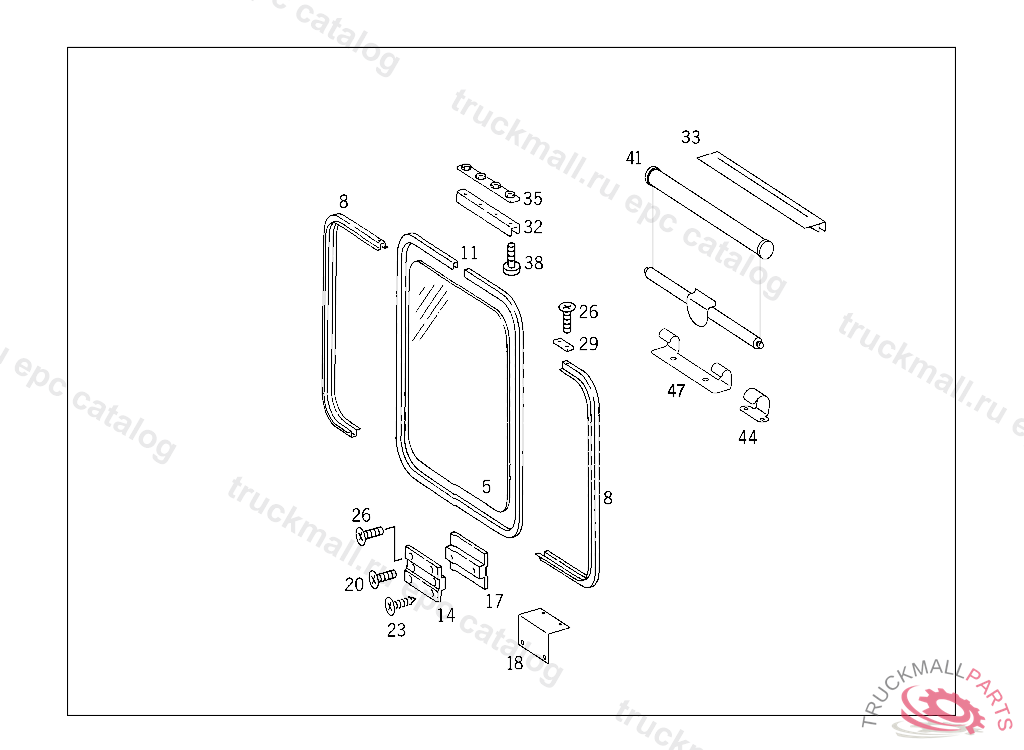

Поз.
Артикул
Описание
5
GLASS PANE PARTITION PANE,232870
5
GLASS PANE PARTITION PANE,232871
8
FRAME ,232870
8
FRAME ,232871
11
RUBBER MOULDING , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
14
BRACKET ,232870
17
BRACKET ,232870
18
BRACKET ,232871
20
SCREW , NOT USED
23
SHEET METAL SCREW AT AIR DUCT,FOR TEMPERATURE FEELER OPENING 3.5X13
26
SCREW
29
PLATE
32
BRACKET AT PARCEL RACK,232870
33
BRACKET AT PARCEL RACK,232871
35
PLATE
38
SCREW JUNCTION BOX TO BRACKET
41
ROLLER BLIND PARTITION PANE,232871
44
CLAMP
