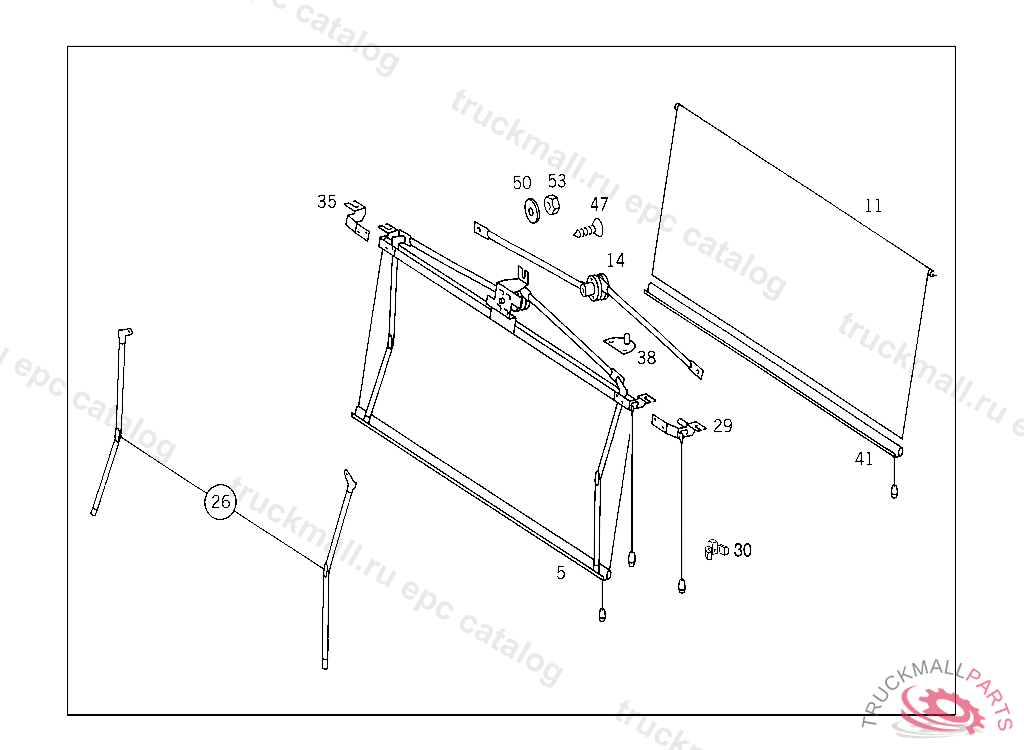

Поз.
Артикул
Описание
5
ROLLER BLIND MANUAL 830 MM
5
ROLLER BLIND MANUAL 650 MM
5
ROLLER BLIND , Replaced By: A6138100920
5
ROLLER BLIND , Replaced By: A6138100220
5
ROLLER BLIND , Replaced By: A6138100320
11
ROLLER BLIND
14
LINKAGE
26
LEVER
26
LEVER
29
END PIECE LEFT
29
LEVER
30
BRACKET
35
END PIECE RIGHT
38
STOP
41
GUIDE
47
SCREW LOCKING MECHANISM
47
TAPPING SCREW SIDE REFLECTORS,K 057592
50
WASHER COMPRESSED AIR LINE TO BRACKET
50
WASHER , Replaced By: N009021006208
53
NUT CLAMP TO BRACKET
53
NUT , Replaced By: N913023006001
999
STOP
999
STOP
999
LEVER
