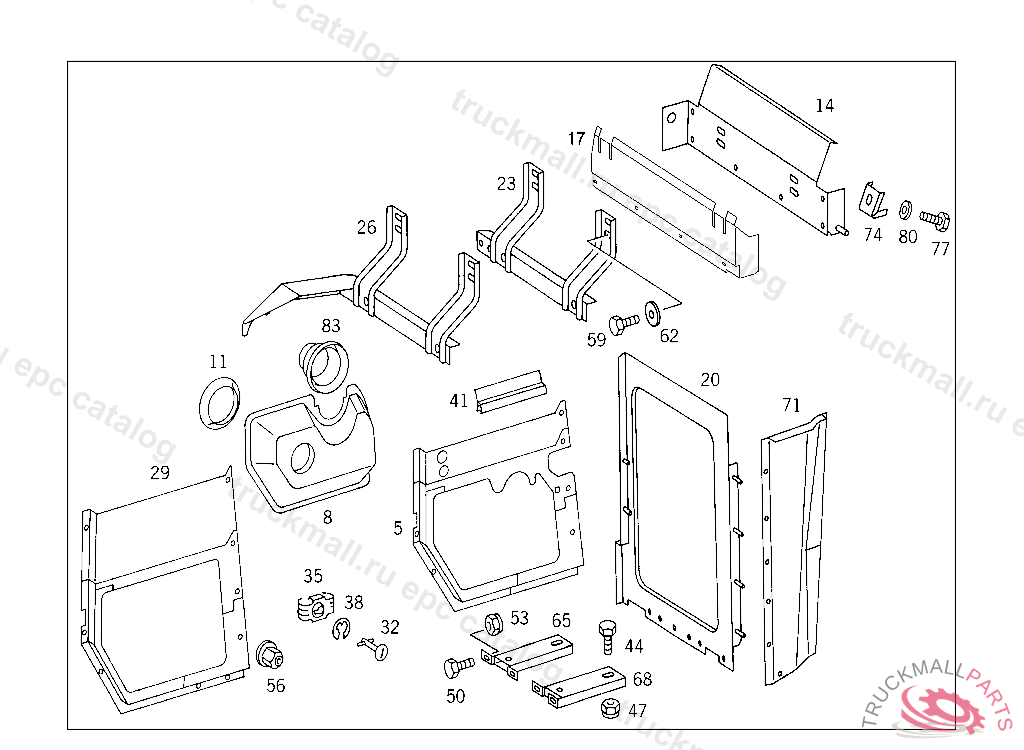

Поз.
Артикул
Описание
5
FRAME
8
COVERING
11
GROMMET , TO BE ADAPTED DURING ASSEMBLY
14
COVERING TOP
20
FRAME
20
COVERING
20
FRAME RADIATOR PARTITION PANEL,221853
23
SUPPORT TOP
26
SUPPORT TOP
29
FRAME
32
FASTENER
35
FASTENER
38
WASHER
41
RUBBER SEAL ,077671 ORDER BY THE METER
41
SEALING STRIP SEAL TO BODY, ORDER BY THE METER
44
SCREW , Replaced By: N304017010043
47
NUT BRACKET TO CROSS MEMBER
50
SCREW BRACKET TO CAB REAR PANEL M 8X20
53
NUT
56
NUT COVERING TO CAB FIRE WALL
59
HEX. HEAD SCREW. SCREW ELECTRIC CABLE TO SIDE MEMBER, 032,033,040,041,132,133,140,141 FROM CAB 1606715
62
WASHER BRACKET TO COVERING
65
CONSOLE BOTTOM
65
CONSOLE INSIDE
68
CONSOLE BOTTOM
68
CONSOLE OUTSIDE
71
COVERING
71
COVERING ,221853
74
SUPPORT RADIATOR TO SUBSTRUCTURE
77
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
80
WASHER RADIATOR TO RUBBER MOUNTING
80
WASHER GROUND CABLE
83
GROMMET
