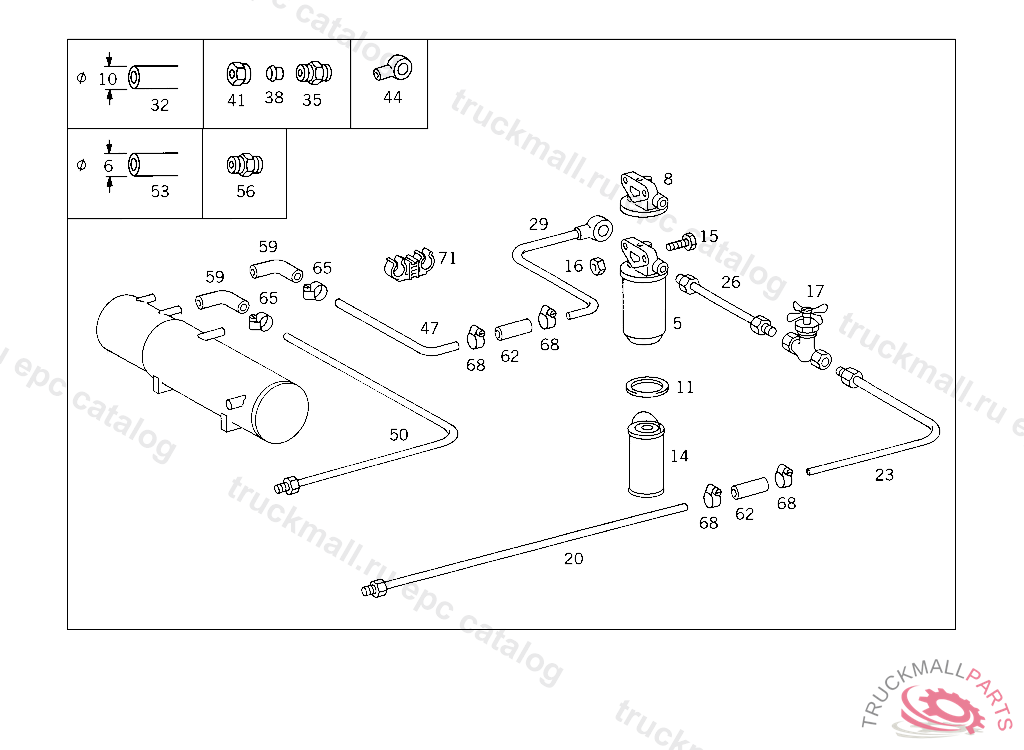

Поз.
Артикул
Описание
5
FILTER FUEL
8
FILTER HEAD
11
SEAL RING ,D 031246
14
FILTER ELEMENT , Replaced By: A3524700092
15
SCREW RUBBER MOUNTING TO CONSOLE
16
NUT STRAP TO BRACKET
17
VALVE SHUT-OFF COCK A 8
20
PIPE LINE
23
PIPE LINE ,224119
23
PIPE LINE ,224118
26
PIPE LINE
29
PIPE LINE ,224118
29
PIPE LINE ,224119
32
LINE FEED & RETURN 10X1 MM, LENGTH AVAILABLE: 3000 MM
35
FITTING
38
BALL-TYPE NIPPLE. SEAL CONE OIL LINES
41
UNION NUT FUEL HOSE
44
BANJO UNION
47
PIPE LINE ,226360
47
PIPE LINE ,226361
50
PIPE LINE ,226361
50
PIPE LINE ,226360
53
LINE EXHAUST BRAKE, LENGTH AVAILABLE: 3000 MM
56
FITTING LEAK LINE TO CYLINDER HEAD
59
HOSE , Replaced By: A3578320723
59
HOSE AT CYLINDER
62
GUMMISCHLAUCH 9. HOSE AT SENDER UNIT
65
CLAMP HOSE TO FITTING
68
CLAMP FROM FUEL FILTER TO FUEL TANK
71
HOSE CLAMP. CONNECTOR
