Поз.
Артикул
Описание

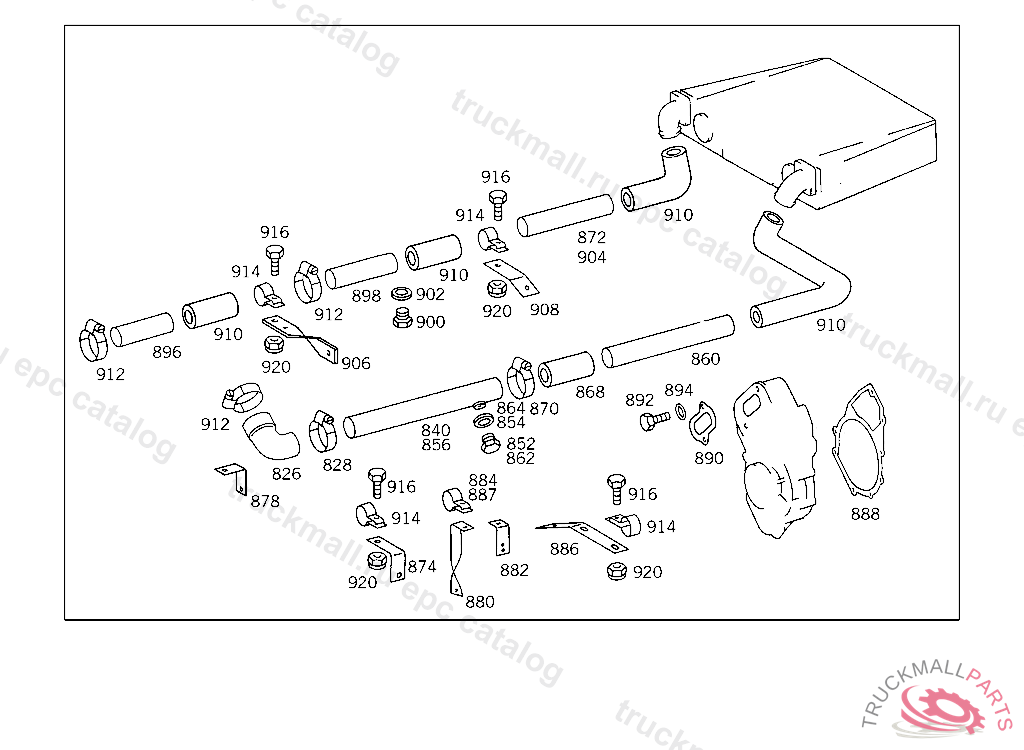

826
HOSE FEED AND RETURN LINE CONNECTION
826
HOSE , Replaced By: A6175011782
828
CLAMP HOSE TO RETARDER 60-80X13 MM
828
CLAMP , Replaced By: N000000000673
828
CLAMP HOSE FASTENING 50-70X13 MM
828
CLAMP , Replaced By: N000000000672
840
COOLING WATER PIPE FEED
840
COOLING WATER PIPE FEED LINE TO ENGINE
840
LINE FEED
840
LINE ENGINE,LEFT
852
SCREW PLUGROCKINGER,TYP 59 U150
852
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
854
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
856
COOLING WATER PIPE FRONT LEFT
860
LINE FEED
860
LINE FEED, FROM HOSE TO HOSE
860
COOLING WATER PIPE CENTRAL LEFT
860
COOLING WATER PIPE CENTRAL LEFT
862
SCREW PLUGROCKINGER,TYP 59 U150
862
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
864
SEAL RING LINE CONNECTION
868
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
868
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
870
CLAMP HOSE TO RETARDER 60-80X13 MM
870
CLAMP , Replaced By: N000000000673
870
CLAMP HOSE FASTENING 50-70X13 MM
870
CLAMP , Replaced By: N000000000672
872
LINE RETURN, FROM HOSE TO HOSE
872
COOLING WATER PIPE , Replaced By: A6995003989
874
BRACKET FRONT LEFT
874
BRACKET CABLE HARNESS MOUNTING
874
BRACKET CABLE HARNESS MOUNTING
874
BRACKET CABLE HARNESS MOUNTING
874
BRACKET , Replaced By: A6224760136
874
BRACKET , Replaced By: A6255042340
878
BRACKET FUEL LINES TO TRANSMISSION
878
BRACKET , Replaced By: A6205240340
880
BRACKET , Replaced By: A3184924241
880
BRACKET HAND PUMP
880
BRACKET FEED LINE TO THERMOSTAT, TO BE ADAPTED DURING ASSEMBLY
882
BRACKET HAND PUMP
884
CLAMP LINE MOUNTING
884
CLAMP , Replaced By: A9424310043
884
CLAMP , Replaced By: N000000001641
886
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
886
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
886
BRACKET , Replaced By: A3224923319
886
BRACKET CENTRAL FRONT
886
BRACKET CENTRAL FRONT
886
BRACKET , Replaced By: A3604921719
887
CLAMP LINE MOUNTING
887
CLAMP , Replaced By: A9424310043
887
CLAMP , Replaced By: N000000001641
888
GASKET WATER PUMP
888
GASKET , Replaced By: A4422010080
890
GASKET OUTLET TO ENGINE
890
GASKET , Replaced By: A4422010780
892
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
892
SCREW , Replaced By: N304017008028
894
SEAL RING AT WATER PUMP
894
SEAL RING , Replaced By: A0249972848
894
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0209971148
896
HOSE RETURN
898
LINE RETURN
898
LINE RETURN
898
LINE ENGINE,RIGHT
900
SCREW PLUGROCKINGER,TYP 59 U150
900
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
902
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
902
SEAL RING LINE CONNECTION
904
LINE RETURN, FROM HOSE TO HOSE
904
COOLING WATER PIPE , Replaced By: A6995003989
904
COOLING WATER PIPE ENGINE,RIGHT
906
BRACKET , Replaced By: A3224923319
906
BRACKET , Replaced By: A3224923319
906
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
908
BRACKET , Replaced By: A3604921719
908
BRACKET CENTRAL FRONT
908
BRACKET CENTRAL REAR
910
HOSE , Replaced By: N900271050012
910
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
910
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
910
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
912
CLAMP , Replaced By: N000000000672
912
CLAMP HOSE FASTENING 50-70X13 MM
914
CLAMP , Replaced By: N000000001641
914
CLAMP , Replaced By: A9424310043
914
CLAMP LINE MOUNTING
916
SCREW , Replaced By: A4609900601
916
SCREW EXHAUST PIPE TO BRACKET
920
NUT , Replaced By: N304032008006
920
NUT
999
RECEPTACLE SILICONE GREASE
999
BRACKET OIL LINE MOUNTING
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR,5 534803
999
HOSE , Replaced By: A3635060235
999
LOCKING CAP INTERMEDIATE PIPE TO PARTICLE FILTER
999
HOSE FROM FLANGE TO HEATING PIPE
999
HOSE CONNECTION OF COOLING WATER LINES
999
BRACKET PIPE ELBOW
999
LINE FEED
999
BRACKET FEED LINE TO ENGINE
999
COOLING WATER LINE FEED
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
SCREW , Replaced By: N304017006016
999
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW PUMP TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
CLAMP , Replaced By: N000000000667
