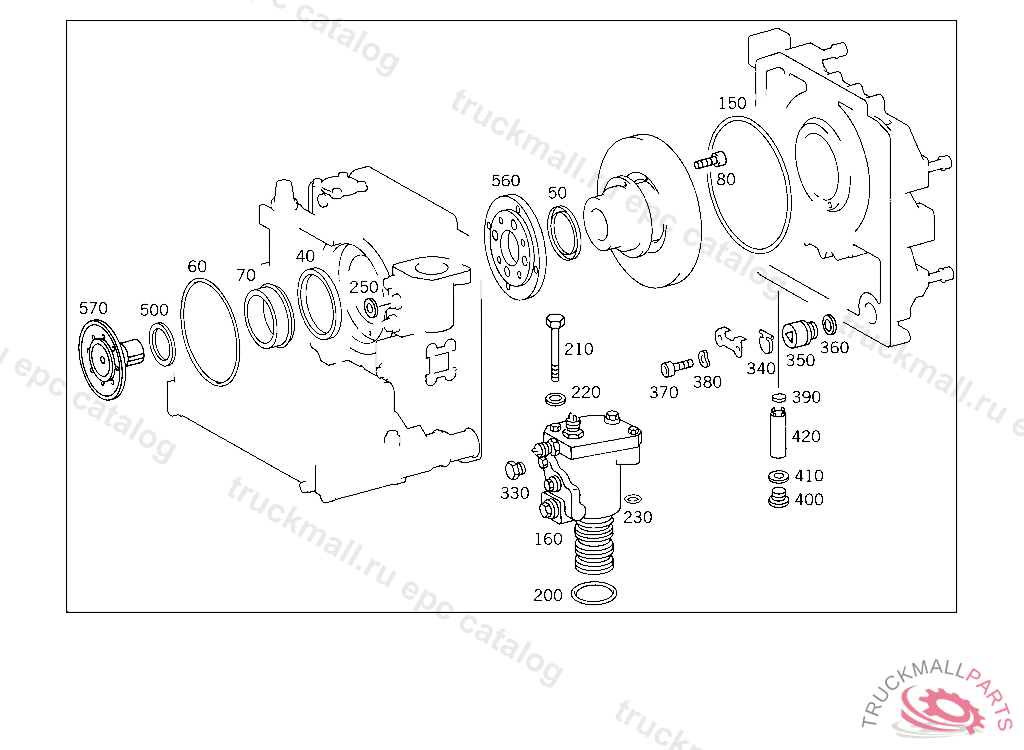

Поз.
Артикул
Описание
40
SEAL RING HOUSING 115X140X10 MM
50
SEAL RING HOUSING 120X112X4.5 MM
60
SEAL RING HOUSING 196.52X2.62 MM
70
RING ROTOR
80
SCREW FLANGE TO TRANSMISSION CASE COVER
150
SEAL RING CASE COVER 297X4 MM
150
SEAL RING95X4.5 MM
160
VALVE CONTROL UNIT
200
SEAL RING CONTROL VALVE 60X4 MM
210
SCREWM 8X40
220
WASHER , Replaced By: N000125008443
220
WASHER EXHAUST MUFFLER TO STRAP
230
SEAL RING CONTROL VALVE 10X3 MM
230
SEAL RINGA 26X34 MM
250
SEAL RING LOCKING VALVE 22X29 MM
330
SCREW PLUGM 12X1.5
340
COVER (HINGED COVER)
350
VALVE
360
SEAL RING40X47 MM
370
SCREWM 10X18
370
SCREWM 6X16
370
SCREW , Replaced By: A1249900520
370
SCREWM 6X25
380
SPRING WASHER LICENSE PLATE TO BRACKET
390
GASKET LOCKING VALVE 15X2 MM
400
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
400
SCREW PLUG , Replaced By: N000908022011
410
SEAL RING LOCKING VALVE 22X29 MM
420
BRACKET LOCKING VALVE
500
SEAL RING62X4 MM
560
FLANGE
570
FLANGE
999
BRACKET
999
SCREW ON TRANSMISSION END
999
SENDER UNIT PRESSURE SWITCH
999
SENDER UNIT6 BAR
999
CONNECTOR , Replaced By: A6205010223
999
NUT VIBRATION ABSORBER TO CONSOLE
999
SCREW CENTRAL LOCK TO CAB M 10X16
999
FITTED WASHER AS REQUIRED 18X25X1.0 MM
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
