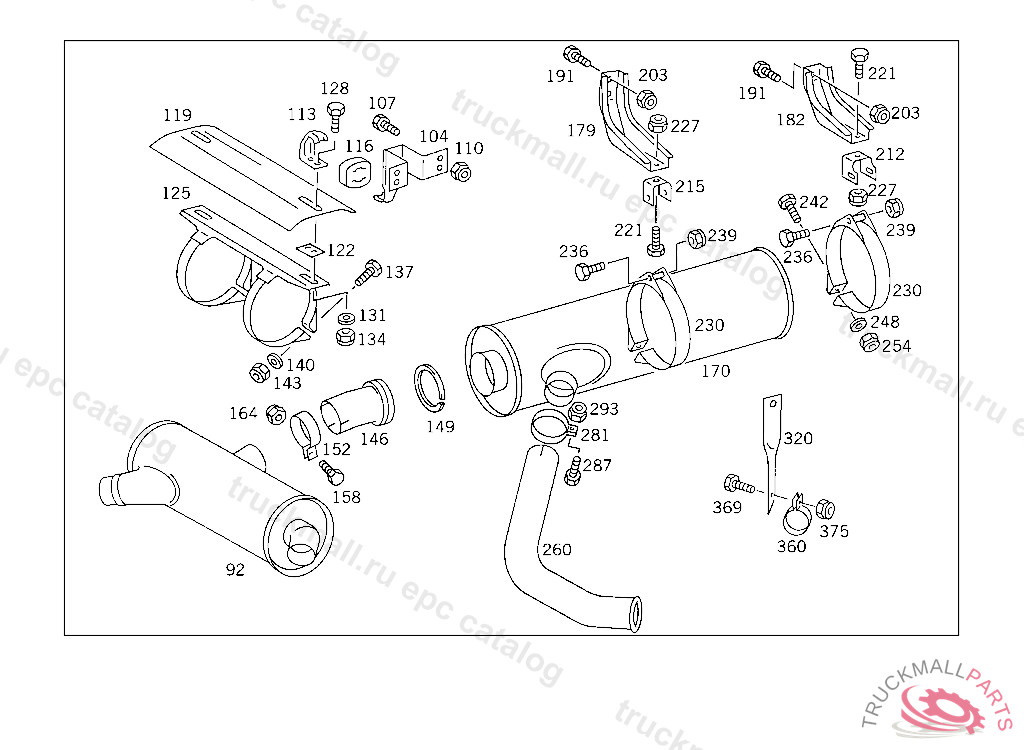

Поз.
Артикул
Описание
92
EXHAUST MUFFLER FRONT,5 193594
104
SUPPORT PARTICLE FILTER,FRONT
107
SCREW , Replaced By: N308676014020
107
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
107
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
110
NUT , Replaced By: N910113014001
110
NUT BRACKET TO SIDE MEMBER
113
BRACKET PARTICLE FILTER
116
DAMPING PAD PARTICLE FILTER
119
PROTECTIVE PLATE EXHAUST MUFFLER SUSPENSION,5 129244
125
SUPPORT FRONT EXHAUST MUFFLER,5 193594
128
SCREW , Replaced By: N304017008021
128
SCREW PIPE CLAMP
131
WASHER , Replaced By: N000125008443
131
WASHER EXHAUST MUFFLER TO STRAP
134
NUT , Replaced By: N913004008001
134
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
134
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
137
SCREW , Replaced By: N304017008042
137
SCREW SHOCK ABSORBER TO CONSOLE
140
WASHER , Replaced By: N000125008443
140
WASHER EXHAUST MUFFLER TO STRAP
143
NUT , Replaced By: N913004008001
143
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
143
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
146
EXHAUST PIPE FRONT AND REAR EXHAUST MUFFLERS,5 129244
149
SEAL RING ,5 193594
152
CLAMP EXHAUST PIPE
158
SCREW END PIECE TO EXHAUST PIPE M 10X25
164
NUT , Replaced By: N910113010000
164
NUT STRAP TO BRACKET
170
EXHAUST MUFFLER REAR
170
EXHAUST MUFFLER , Replaced By: A6234900101
170
EXHAUST MUFFLER REAR
179
CONSOLE REAR EXHAUST MUFFLER 178 MM
182
CONSOLE REAR EXHAUST MUFFLER 132 MM
191
SCREW , Replaced By: N308676012026
191
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
203
NUT SUPPORT TO SIDE MEMBER
215
BRACKET EXHAUST MUFFLER
221
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
227
NUT , Replaced By: N910113010000
227
NUT STRAP TO BRACKET
230
STRAP EXHAUST MUFFLER TO BRACKET
236
SCREW STRAP TO BRACKET
239
NUT , Replaced By: N910113010000
239
NUT STRAP TO BRACKET
242
SCREW EXHAUST MUFFLER TO STRAP
248
WASHER , Replaced By: N000125008443
248
WASHER EXHAUST MUFFLER TO STRAP
254
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
254
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
254
NUT , Replaced By: N913004008001
260
REAR EXHAUST PIPE
281
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
287
SCREW BRACKET TO SIDE MEMBER
287
SCREW , Replaced By: N304017010002
293
NUT STRAP TO BRACKET
293
NUT , Replaced By: N910113010000
320
BRACKET REAR EXHAUST PIPE,5 193594
360
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
360
CLAMP , Replaced By: N071555100501
369
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
369
SCREW , Replaced By: N304017008027
375
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
375
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
375
NUT , Replaced By: N913004008001
999
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
