Поз.
Артикул
Описание

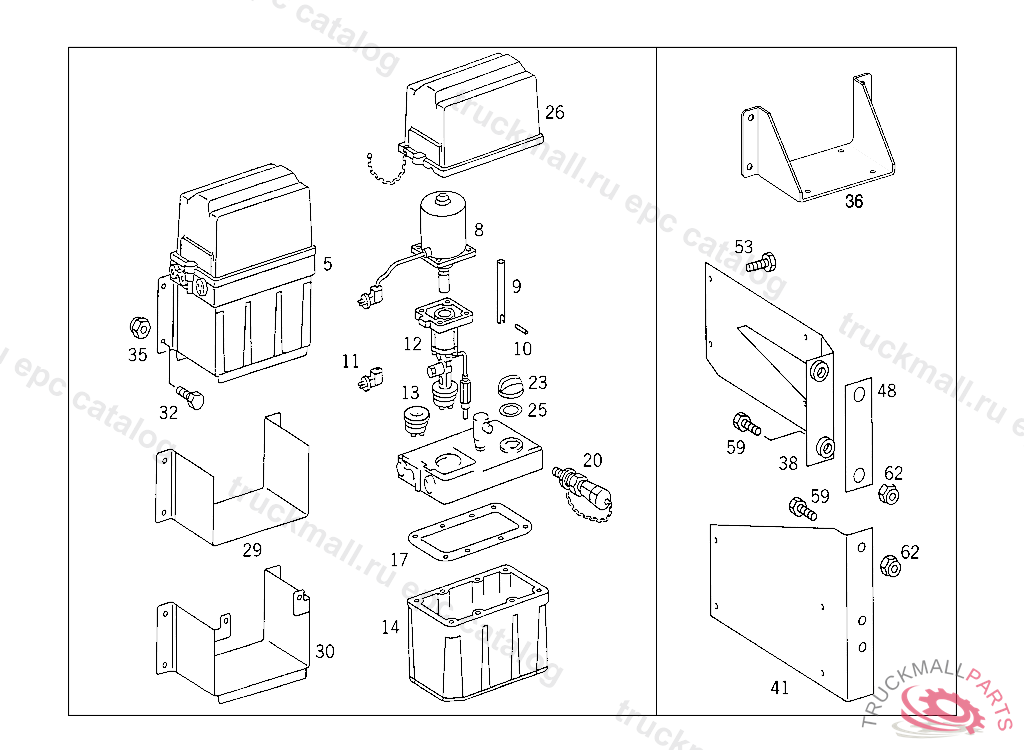

5
PUMP WITH FILLER CAP BEKA-MAX
5
PUMP , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0005719501
8
ELECTRIC MOTOR , Replaced By: A0005402488
8
ELECTRIC MOTORBEKA-MAX,TO 000 571 46 01, 54 01
9
SHAFT
9
SHAFT , Replaced By: A0005710135
10
CLAMPING PIN2X12 MM
11
PLUG NOT CONFORMING TO DANGEROUS GOODS TRAFFIC REGULATIONS (GGVS)
12
SUCTION PIPE WITH GEARED PUMP BEKA-MAX,TO 000 571 4601, 5401
12
SUCTION PIPE , Replaced By: A0005700256
13
PUMP WITH GEAR BEKA-MAX
13
PUMP , Replaced By: A0005719401
14
RESERVOIR , Replaced By: A0005700204
14
RESERVOIR PUMP BEKA-MAX
17
SEAL RING , Replaced By: A0005710780
17
GASKETBEKA-MAX
20
VALVE , Replaced By: A0005711614
20
VALVE GREASE FILLING BEKA-MAX
23
COVER GREASE FILLING
25
GASKET
25
GASKET , Replaced By: A1020180380
26
COVER , Replaced By: A0005711703
26
COVER PUMP BEKA-MAX
29
RETAINING PLATE PUMP VOGEL,TO 000 571 54 01, 49 01, 53 01
29
RETAINING PLATE , Replaced By: A0005710316
30
RETAINING PLATE PUMP VOGEL,TO 000 571 54 01,70 01
30
RETAINING PLATE PUMP BEKA-MAX,TO 000 571 54 01,70 01
32
SCREW CLAMP TO BRACKET,5 597426
32
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
32
SCREW BRACKET TO CROSS MEMBER M 8X45
32
SCREW , Replaced By: N910142008009
32
SCREW , Replaced By: N910142008001
32
SCREW BRACKET TO BRACKET
35
NUT BRACKET TO BRACKET
38
CONSOLE CENTRAL LUBRICATION PUMP
41
CONSOLE CENTRAL LUBRICATION PUMP
53
SCREW , Replaced By: N910105010011
53
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
59
SCREW TRAILER COUPLING TO REAR CROSS MEMBER M 16X60
62
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
