Поз.
Артикул
Описание

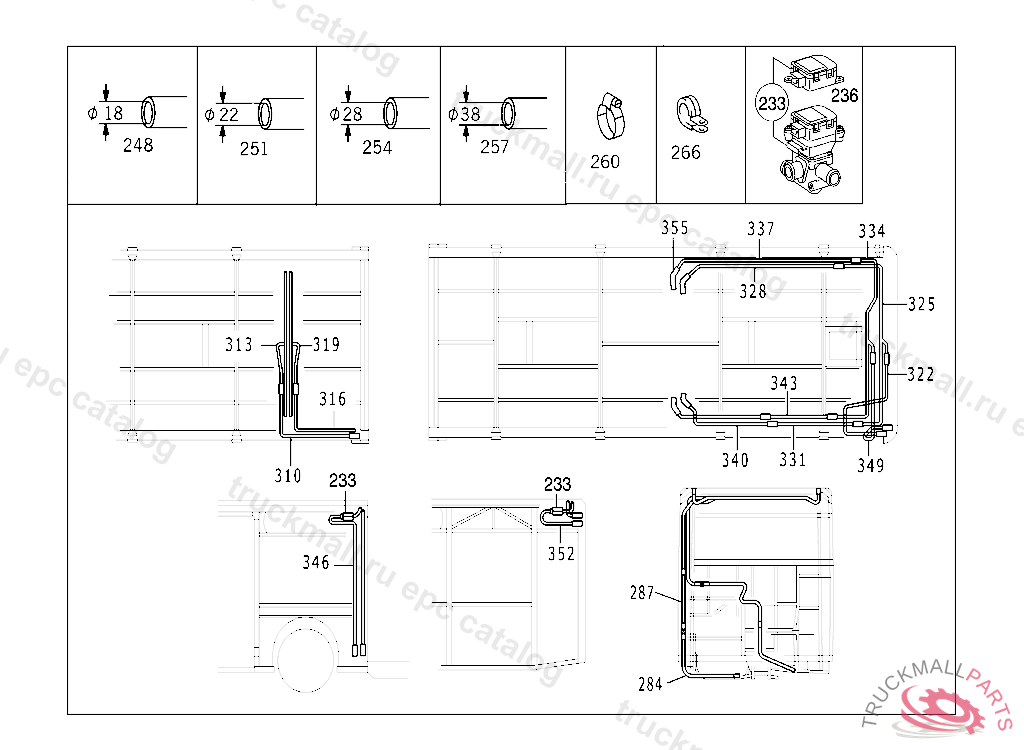

233
VALVE THREE-WAY VALVE
233
VALVE 2/2 -WAY VALVE
233
VALVE THREE-WAY VALVE, Replaced By: A0048301684
233
VALVE 2/2 -WAY VALVE, Replaced By: A0048301884
233
VALVE , Replaced By: A0038305684
233
VALVE , Replaced By: A0038305784
236
ELECTRIC MOTOR , Replaced By: A0068207842
236
SERVO-D.C. W.GEARBOX
248
INSULATION DIA., 18MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
248
HOSE
248
HOSE18X27X80MM, TO BE ADAPTED DURING ASSEMBLY
248
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
248
HOSE SILICONE 18 X 27 X 275 MM, TO BE ADAPTED DURING ASSEMBLY
251
HOSE AT CYLINDER
251
INSULATION DIA., D22MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
251
HOSE SILICONE 22 X 31 X160 MM, TO BE ADAPTED DURING ASSEMBLY
251
HOSE AIR COMPRESSOR CONNECTION 240 MM, ORDER BY THE METER
251
HOSE SILICONE 22 X 31 X 100 MM, TO BE ADAPTED DURING ASSEMBLY
254
HOSEA28, B37, L100
254
HOSE FROM WATER PUMP TO EXPANSION TANK 28X37X80,5 022370 ORDER BY THE METER
254
INSULATION DIA., 28MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
257
HOSE CONNECTION OF OIL FILLER PIPES, ORDER BY THE METER
257
HOSEA38, B50, L100
260
CLAMP29.5-31 MM
260
CLAMP HOSE FASTENING 50-70X13 MM
260
CLAMP
260
CLAMP25-40X13 MM
260
CLAMP26-27.5 MM
260
CLAMP35.6-37.3 MM
260
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
260
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
266
CLAMP LINE MOUNTING
266
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
266
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
266
CLAMP , Replaced By: A3829950101
266
CLAMP CABLE HARNESS MOUNTING
266
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
266
CLAMP PIPE ON FAN SHROUD
266
CLAMP SAFETY VALVE AT BRACKET
266
CLAMP
266
CLAMP BRAKE HOSE BRACKET
266
CLAMP DELIVERY AND SUCTION LINES TO FRAME
266
CLAMP COOLING WATER HOSES
284
PIPE LINE ENGINE COMPARTMENT
287
PIPE LINE ENGINE COMPARTMENT
310
PIPE LINE FEED 1580 MM
313
PIPE LINE FEED TO ROOF MOUNTED HEAT EXCHANGER
316
PIPE LINE BEHIND CENTRAL AXLE
319
PIPE LINE BEHIND CENTRAL AXLE
322
PIPE LINE BEHIND REAR AXLE
325
PIPE LINE BEHIND REAR AXLE
328
PIPE LINE BEHIND REAR AXLE
331
PIPE LINE BEHIND REAR AXLE
334
PIPE LINE BEHIND REAR AXLE
337
PIPE LINE BEHIND REAR AXLE
340
PIPE LINE BEHIND REAR AXLE
343
PIPE LINE BEHIND REAR AXLE
346
PIPE LINE BEHIND REAR AXLE
349
PIPE LINE BEHIND REAR AXLE
352
PIPE LINE BEHIND REAR AXLE
355
HOSE CONNECTION TO HEATER UNIT 18 X 27 MM
999
PIPE LINE
999
PIPE LINE RETURN
999
PIPE LINE FEED, HEATER ON THE BEHIND FRONT AXLE
999
CAP EXPANSION TANK
