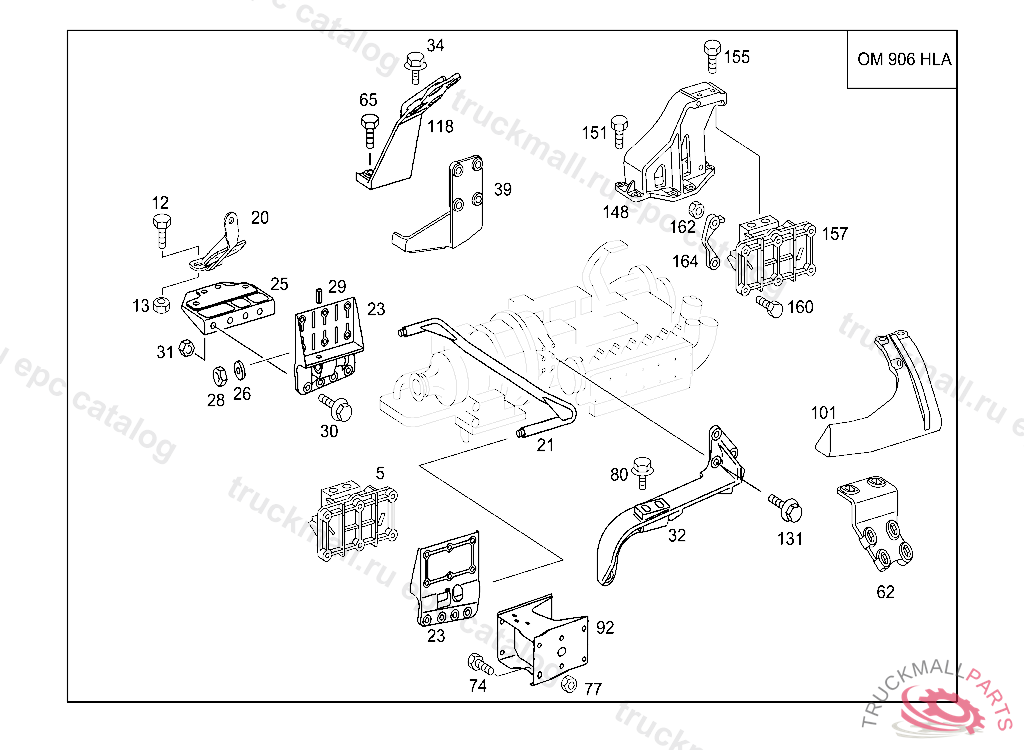

Поз.
Артикул
Описание
5
RUBBER MOUNTING LEFT
5
RUBBER MOUNTING
5
RUBBER MOUNTING WITH AIR CONDITIONER OM 906, Replaced By: A6282401817
5
RUBBER MOUNTING RIGHT OM 457
5
RUBBER MOUNTING , Replaced By: A6282402417
5
RUBBER MOUNTING , Replaced By: A6282402317
5
RUBBER MOUNTING , Replaced By: A6282402017
5
RUBBER MOUNTING , Replaced By: A6282401717
5
RUBBER MOUNTING RIGHT
5
RUBBER MOUNTING LEFT OM 457 / OM 906
12
HEXAGON HEAD BOLT SUPPORTING ARM TO BELL HOUSING M18X1.5X60
12
HEXAGON HEAD BOLT BEARING BRACKET TO FRAME M18X1.5X60, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
13
NUT TRAILER COUPLING TO FRONT CROSS MEMBER M18X1.5
13
NUT RETARDER HOUSING TO TRANSMISSION CASE
20
REINFORCEMENT RIGHT OM 906 HLA
20
REINFORCEMENT RIGHT OM 906 HLA
20
REINFORCEMENT RIGHT OM 457
20
REINFORCEMENT RIGHT OM 457
21
BEARING TUBEOM 906
23
BEARING BRACKETOM 457
25
SUPPORTOM 906
26
WASHER DIA., 56
28
NUT
29
ROLL PIN
30
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M16 X 1.5 X 50
30
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X50
31
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
31
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
32
ENGINE SUPPORT LEFT OM 906 HLA , ZF
34
HEXAGON HEAD BOLT STEERING BRACKET TO FRAME M18X1.5X50
34
HEXAGON HEAD BOLT AT FRAME, REAR M16X1.5X40
34
HEXAGON HEAD BOLT SUPPORTING ARM TO ENGINE REAR MOUNTING M18X1.5X50
34
SCREW GUSSET PLATE TO CROSS MEMBER M16 X 1.5 X 40
39
ENGINE SUPPORT RIGHT OM 906
62
ENGINE SUPPORT TRANSMISSION VOITH,OM 906
65
HEXAGON HEAD BOLT ENGINE MOUNTING TO CONSOLE M18X1.5X55
65
HEXAGON HEAD BOLT CROSSMEMBER AND BEARING BRACKET TO FRAME M18X1.5X40
65
HEXAGON HEAD BOLT MOUNTING, TORSION BAR, ON SIDE MEMBER M18X1.5X45
65
HEXAGON HEAD BOLT REAR AXLE SHAFT TO HUB M18X1.5X40
65
HEXAGON HEAD BOLT. SCREW PLATE TO SIDE MEMBER M18 X 1.5 X 45
65
HEXAGON HEAD BOLT BRACKET MOUNTING LEFT & RIGHT M18X1.5X55
74
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
74
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
77
NUT SUPPORT TO FRAME
77
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
80
HEXAGON HEAD BOLT. SCREW SUPPORTING ARM TO ENGINE REAR MOUNTING M 18X1.5X80
80
HEXAGON HEAD BOLT TOWING EYE TO FRAME M18X1.5X80
80
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
80
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
92
CONSOLE VEHICLE WIDTH 2550 MM
101
ENGINE SUPPORT LEFT SUPPORTING ARM OM 906
118
ENGINE SUPPORT RIGHT OM 906
118
ENGINE SUPPORT RIGHT SUPPORTING ARM OM 457
131
HEXAGON HEAD BOLT AT FRAME, REAR M16X1.5X40
131
SCREW GUSSET PLATE TO CROSS MEMBER M16 X 1.5 X 40
148
ENGINE SUPPORTOM 457 / OM 906
151
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X50
151
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
151
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
151
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
151
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
151
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
155
HEXAGON HEAD BOLT MOUNTING, TORSION BAR, ON SIDE MEMBER M18X1.5X45
155
HEXAGON HEAD BOLT. SCREW PLATE TO SIDE MEMBER M18 X 1.5 X 45
155
HEXAGON HEAD BOLT. SCREWM18X1.5X30
157
RUBBER MOUNTING
157
RUBBER MOUNTING TOP OM 457
157
RUBBER MOUNTING , Replaced By: A6282401817
157
RUBBER MOUNTING , Replaced By: A6282401717
160
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
160
SCREW. HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X35,V 207570
160
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
160
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
160
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
160
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
162
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
162
NUT SUPPORT TO FRAME
164
LOCK , Replaced By: A6282420135
164
FASTENING PLATE
999
RUBBER MOUNTING RIGHT OM 457 HLA
