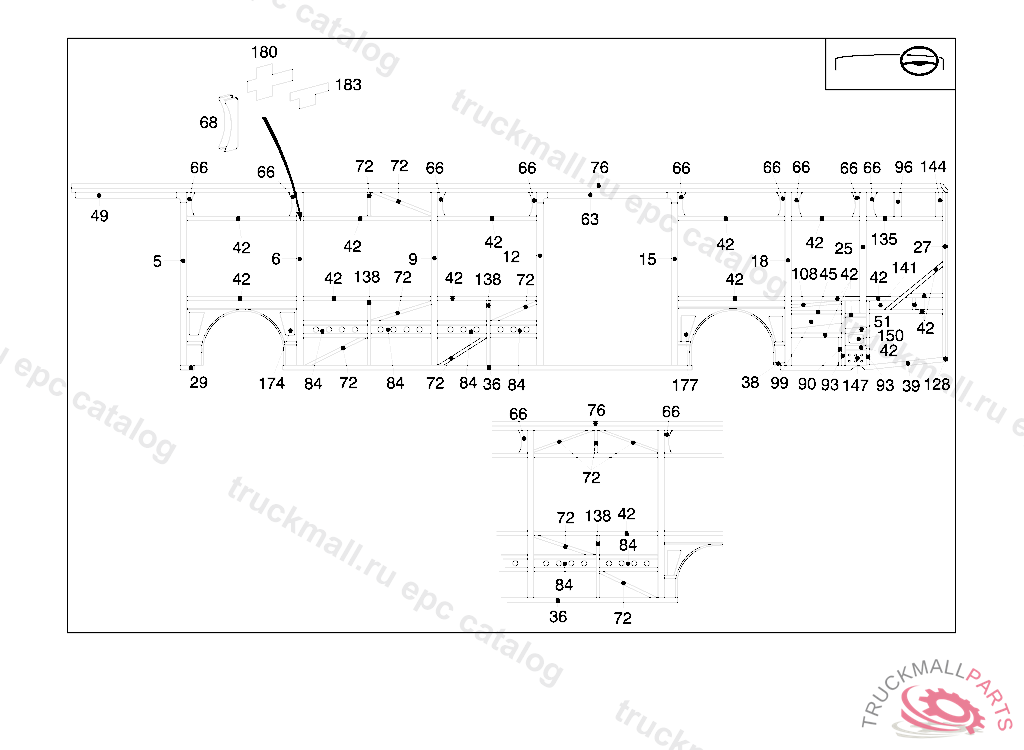

O 530 NUE3 EURO 3 - 628.047 - 63 SIDE PANELS
Поз.
Артикул
Описание
5
PILLAR
6
PILLARNO. 2
6
PILLARNO. 2
9
PILLAR PART
12
PILLAR
12
PILLAR
15
PILLAR
15
PILLAR
18
PILLARNO. 4
25
PILLAR PART
27
PILLAR PART REAR END
29
SUPPORT
36
SUPPORT BOTTOM
38
SUPPORT BOTTOM
39
SUPPORT WITH CUTOUT
39
SUPPORT WITHOUT CUTOUT
42
BEAM. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
45
SUPPORT
49
FRAME FRONT DOOR
51
PILLAR PART , TO BE ADAPTED DURING ASSEMBLY
63
FRAME DOOR,TOP
66
REINFORCEMENT TOP
68
REINFORCEMENT
72
RECTANGULAR TUBE. CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY
76
SUPPORT TOP
84
WEB
84
PART NAME MISSING. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
90
STRUT , TO BE ADAPTED DURING ASSEMBLY
93
PILLAR PART
96
FRAME
99
WEB
108
SUPPORT. RECTANGULAR TUBE50X40X2X1480MM, TO BE ADAPTED DURING ASSEMBLY
128
PLATE
135
SUPPORT
138
PILLAR PART
141
WEB
144
COVERING
147
PLATE
150
REINFORCEMENT
177
PANELLING
180
CONSOLE
183
PLATE
