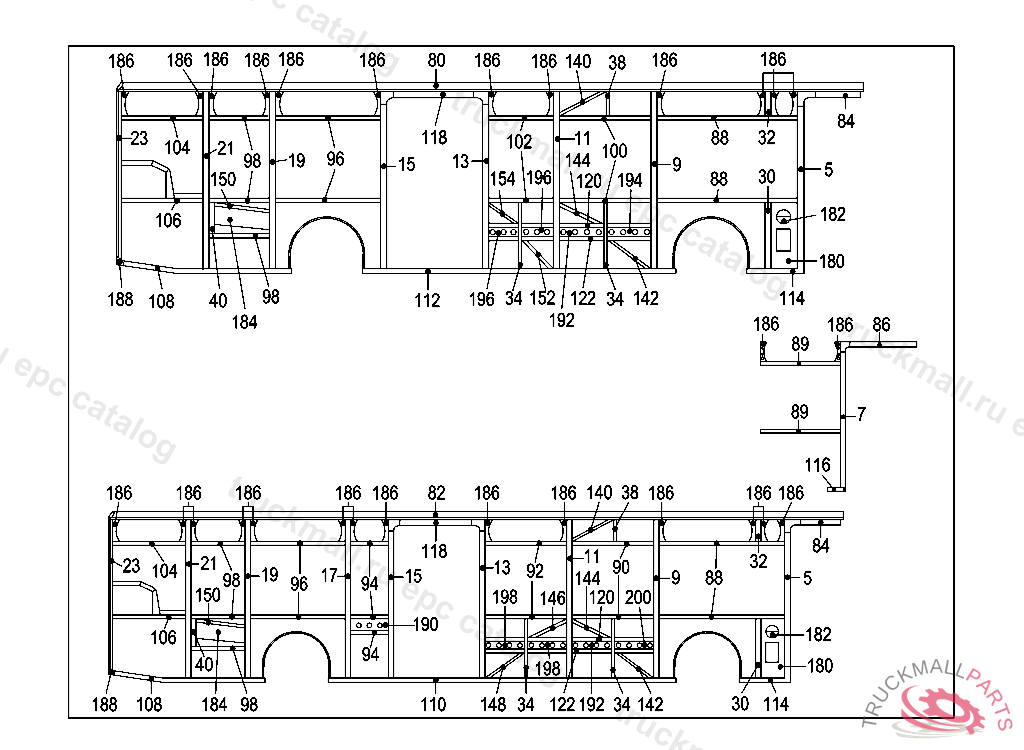

O 530 NUE3 EURO 3 - 628.047 - 63 SIDE PANELS
Поз.
Артикул
Описание
5
PILLAR
7
PILLARNO. 1 + 5
9
PILLARNO. 2
11
PILLAR PART
13
PILLARNO. 2 + 3
15
PILLAR
19
PILLARNO. 4
21
PILLAR
23
PILLAR PART
30
PILLAR PART
32
PILLAR PART
34
PILLAR PART
38
STRUT
40
CONSOLE
80
SUPPORT , Replaced By: A6286304739
80
ROOF RACK
84
FRAME FRONT DOOR
86
FRAME FRONT DOOR
88
BEAM. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
89
SUPPORT
96
SUPPORT
98
SUPPORT60 X 50 X 2 X 900, TO BE ADAPTED DURING ASSEMBLY
100
SUPPORT
102
SUPPORT
104
SUPPORT60 X 50 X 2 X 1190 MM, TO BE ADAPTED DURING ASSEMBLY
106
FRAME PART
108
SUPPORT
112
SUPPORT
114
SUPPORT BOTTOM
116
SUPPORT BOTTOM
118
FRAME DOOR,TOP
120
SUPPORT
122
SUPPORT
140
STRUT
142
STRUT
144
STRUT
150
SUPPORT50 X 40 X 2 X 839 MM, TO BE ADAPTED DURING ASSEMBLY
152
STRUT
154
STRUT
180
WEB
182
ANGLE FRONT RIGHT, Replaced By: A6286320313
184
WEB
186
REINFORCEMENT TOP
188
PLATE
192
WEB
194
SUPPORT
196
SUPPORT
