Главная
›
Mercedes
›
BUS
›
CITARO 12M 3-TUERER
›
628.052
›
47 FUEL SYSTEM
›

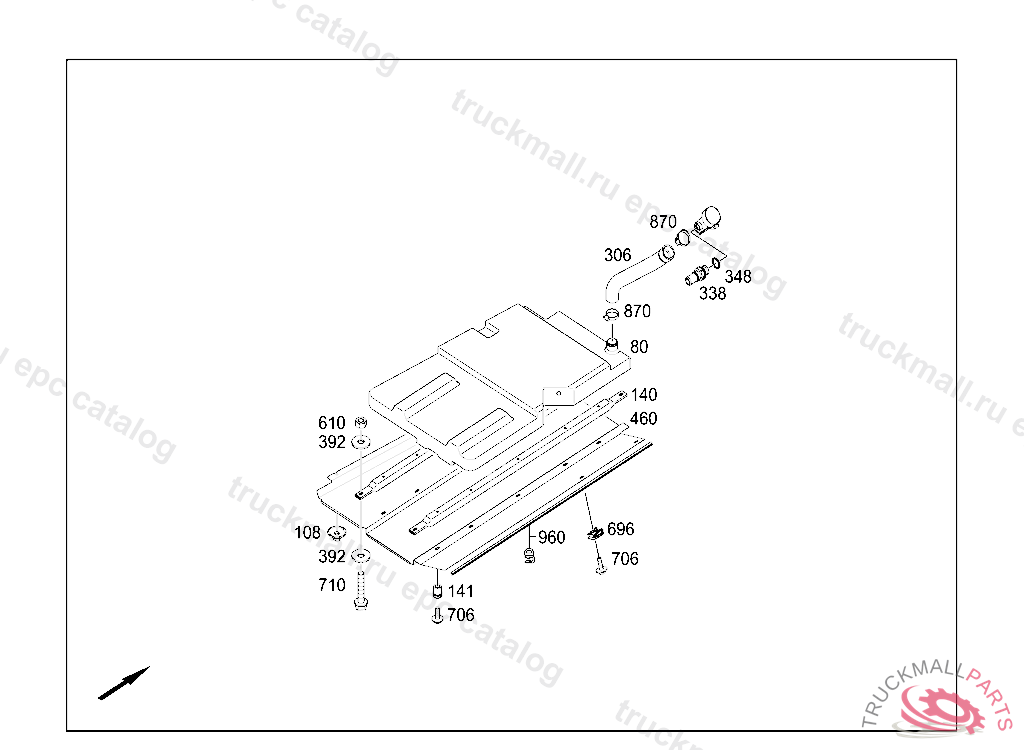

190 FUEL TANK AND FUEL-OIL TANK IL. 2
Mercedes N910105010002 - Болт м10х35
CITARO 12M 3-TUERER 628.052
47 FUEL SYSTEM - 190 FUEL TANK AND FUEL-OIL TANK IL. 2
Поз.
Артикул
Описание
80
A6284701704
FUEL TANK COMPLETE
80
A6284703304
FUEL TANK
80
A6284702304
FUEL TANK COMPLETE
108
A1249920130
SNAP FASTENER FUEL TANK MOUNTING
140
A6284700742
SUPPORT COMPLETE
141
A0009845221
RIVETED NUT
306
A6284761026
HOSE
338
A6284710084
FITTINGG 1/2
348
N000000001085
SEALING RING. SCREW TO PLUG LONGITUDINAL OIL DUCT,FAN SIDE
392
N000000003333
WASHER BRACKET TO FUEL TANK SUPPORT
460
A6284700947
HEAT SHIELD
460
A6284711387
COVERING
610
N304032010002
NUT
696
A0049941645
LOCK NUT. SPRING NUT MOUNTING PARTS
706
N910105006002
HEXAGON HEAD BOLT
706
N914007006065
COMBINATION BOLT. SCREW-AND-WASHER ASSEMBLYM6X20
710
N910105010002
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
870
N000000000672
CLAMP HOSE FASTENING 50-70X13 MM
960
A6289850062
EDGE TRIM , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
