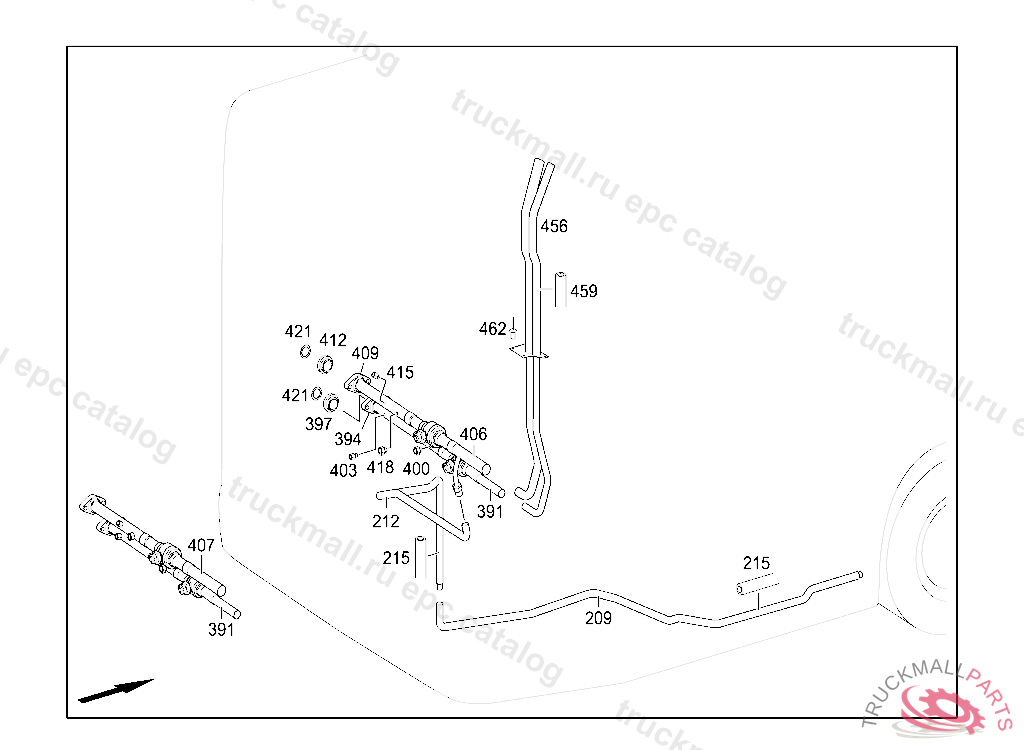

CITARO 12M 3-TUERER - 628.052 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
209
212
215
INSULATING HOSE22X32MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
391
394
FLANGE
397
FITTING
400
PIPE SOCKET
403
PIPE SOCKET
406
407
409
FLANGE THREADED D36MM
412
FITTING
415
PIPE SOCKET
418
PIPE SOCKET
421
GASKET34X42 MM
456
459
INSULATING HOSE36,5X47MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
459
INSULATING HOSE. HOSE INSULATION ID12 MM / AD20 MM, ORDER BY THE METER
459
INSULATING HOSE28MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
462
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
999
CLEANER
