Mercedes A0085451326 - Корпус разъема

E 320 210.265 FROM MODELLJAHR CODE 800

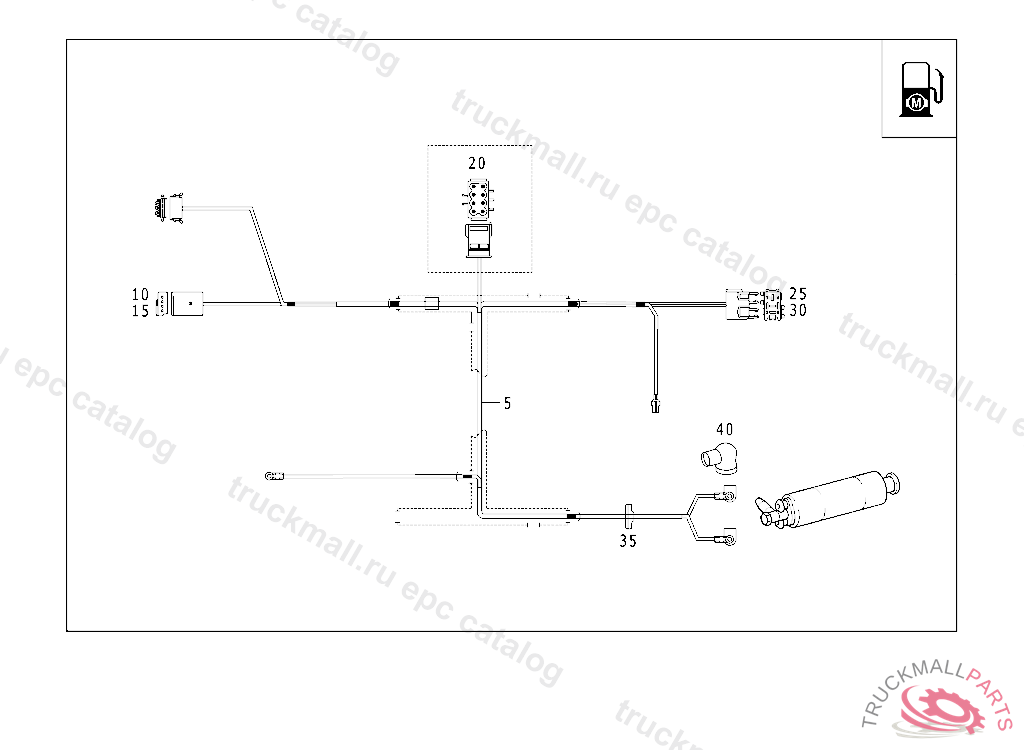

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 535 FUEL PUMP CABLE

Поз.
Артикул
Описание
5
A2105408735
ELECTRIC CABLE FUEL PUMP, A 698508 X 012426 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE TO A 698507, X 012425 WITH CODE 809
10
A0085455526
CONTACT BUSHINGR 27, 0.75 MM2
10
A0005404605
REP.SET CONTACT0.75 MM2 MQS, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
15
A0085455226
CONTACT SPRING FUSE BOX, Replaced By: A0005406905
15
A0005406905
REP.SET CONTACT0.5-1.0 MM2
20
A0335452028
PLUG PIN DOOR SEPARATION POINT 1,0-2,5 MM2
25
A0085451326
PLUG HOUSING
30
A0045455326
FLAT PIN BUSHING
30
A0045455226
CONTACT SPRING1-2.5 MM2
35
A1119971481
GROMMET ENGINE COMPARTMENT LAMP
40
A1239971681
GROMMET
