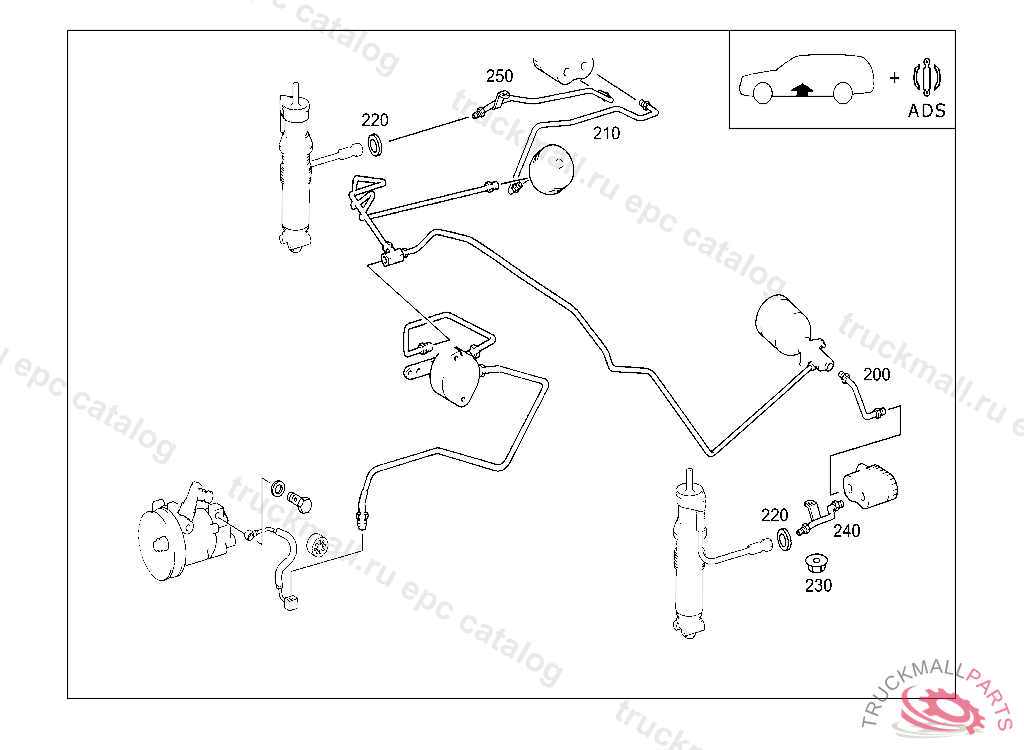

E 320 - 210.265 FROM MODELLJAHR CODE 800 - 32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM

  • Поз.
    Артикул
    Описание
  • 200
    LINE FROM DAMPING VALVE TO HYDROPNEUMATIC SPRING LEG,REAR LEFT
  • 210
    LINE FROM DAMPING VALVE TO HYDROPNEUMATIC SPRING LEG,REAR RIGHT
  • 220
    SEAL RING LINE CONNECTION
  • 230
    HEXAGON NUT W COLLAR BRACKET MOUNTING
  • 240
    LINE FROM SPRING LOAD ACCUMULATOR TO LEFT HYDROPNEUMATIC SPRING LEG
  • 250
    LINE FROM SPRING LOAD ACCUMULATOR TO RIGHT HYDROPNEUMATIC SPRING LEG
