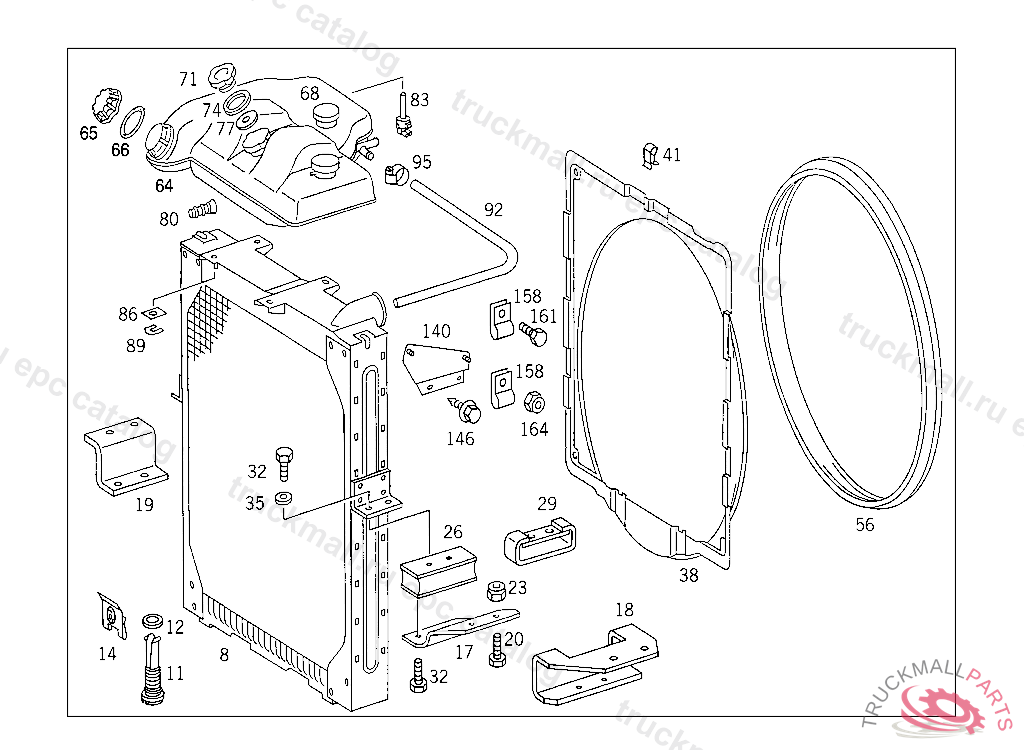

Поз.
Артикул
Описание
11
SCREW WATER DRAIN
14
LOCK
17
SUPPORT RADIATOR,RIGHT,K 096750
17
SUPPORT RADIATOR,RIGHT,K 096749
17
SUPPORT RADIATOR,LEFT,K 096750
17
SUPPORT RADIATOR,LEFT,K 096749
20
SCREW SUPPORT TO SIDE MEMBER
20
SCREW , Replaced By: N000961012025
23
NUT SUPPORT TO SIDE MEMBER
29
RUBBER MOUNTING RADIATOR
32
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
32
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
32
SCREW , Replaced By: N304017010028
35
WASHER RADIATOR TO RUBBER MOUNTING
35
WASHER , Replaced By: N000125010532
38
FAN SHROUD RADIATOR
41
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
56
BOOT FAN SHROUD TO FAN RING
56
BOOT , Replaced By: A6775050386
64
TANK COOLING WATER EXPANSION
65
RADIATOR CAP FILLER NECK
65
RADIATOR CAP , Replaced By: A0005016415
66
SEAL RING
68
RADIATOR CAP
71
RADIATOR CAP CENTRAL
71
RADIATOR CAP CENTRAL
74
GASKET O.D., 52 MM
77
GASKET O.D., 37 MM
80
DRAIN PIPE
83
SENDER UNIT COOLING WATER LEVEL INDICATOR
86
PLATE FROM EXPANSION TANK TO RADIATOR 48X40 MM
86
PLATE FROM EXPANSION TANK TO RADIATOR 40X40 MM
89
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
89
BRACKET. LOCK , Replaced By: A6525040038
92
HOSE FROM EXPANSION TANK TO RADIATOR
95
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
95
CLAMP , Replaced By: N916017011001
158
CLAMP GUIDE TUBE TO RADIATOR & CHARGE AIR ELBOW
161
SCREW PUMP TO BRACKET
161
SCREW , Replaced By: N304017006016
164
NUT PUMP TO BRACKET
164
NUT , Replaced By: N913004006001
