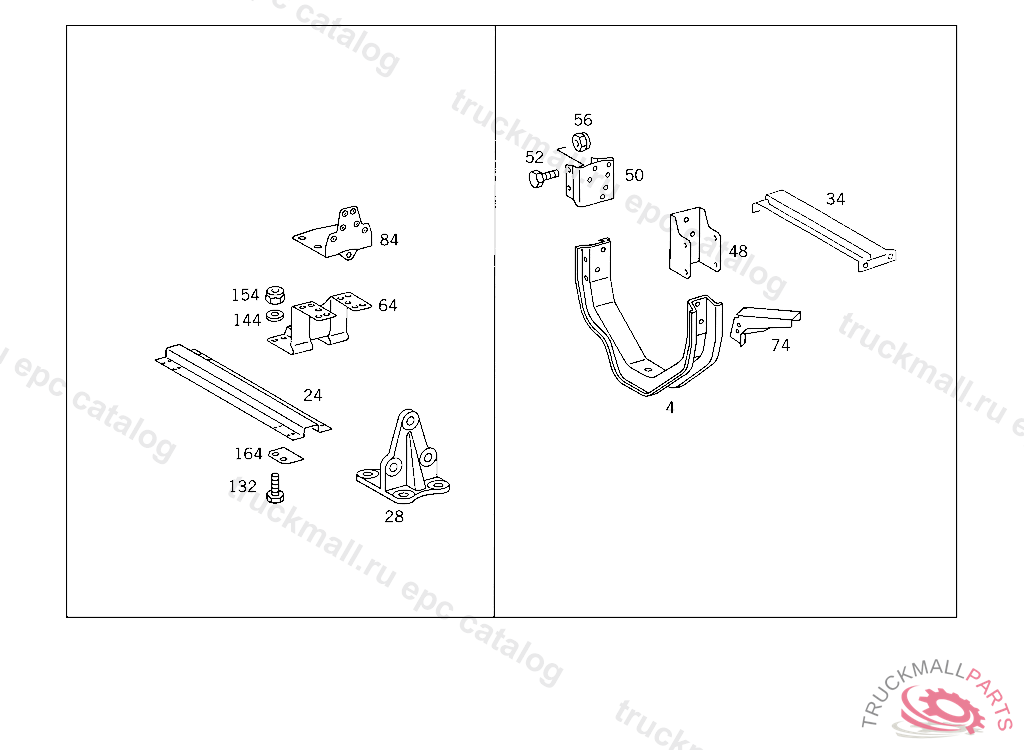

Поз.
Артикул
Описание
4
CROSS MEMBER TRANSMISSION MOUNTING, TO BE ADAPTED DURING ASSEMBLY
24
CROSS MEMBER , Replaced By: A6993122610
24
CROSS MEMBER TRANSMISSION MOUNTING
24
CROSS MEMBER , Replaced By: A6993122610
24
SUPPORT TRANSMISSION MOUNTING
28
BEARING BRACKET TRANSMISSION MOUNTING
28
BEARING BRACKET TRANSMISSION MOUNTING
34
SUPPORT TRANSMISSION MOUNTING, TO BE ADAPTED DURING ASSEMBLY
48
CONSOLE CROSS MEMBER TO SUPPORT
48
CONSOLE CROSS MEMBER TO SUPPORT
50
CONSOLE CROSS MEMBER TO RIGHT SIDE MEMBER
50
CONSOLE CROSS MEMBER TO RIGHT SIDE MEMBER
52
SCREW CONSOLE TO CROSS MEMBER
56
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
56
NUT , Replaced By: N910113012003
64
BRACKET TRANSMISSION MOUNTING
64
BRACKET , Replaced By: A6993124040
74
CONSOLE RIGHT
74
CONSOLE LEFT
84
FRONT SPRING BRACKET LEFT AND RIGHT, TO BE ADAPTED DURING ASSEMBLY
132
SCREW STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
132
SCREW BRACKET TO SIDE MEMBER
132
SCREW BRACKET TO SIDE MEMBER
144
WASHER CROSS MEMBER TO SUPPORT
144
WASHER CROSS MEMBER TO SUPPORT
144
WASHER CROSS MEMBER TO SUPPORT
154
NUT CONSOLE TO SUPPORT
154
NUT , Replaced By: N910113016001
154
NUT BRACKET TO SIDE MEMBER
154
NUT , Replaced By: N910113014001
164
SHIM CROSS MEMBER TO SUPPORT
