Поз.
Артикул
Описание

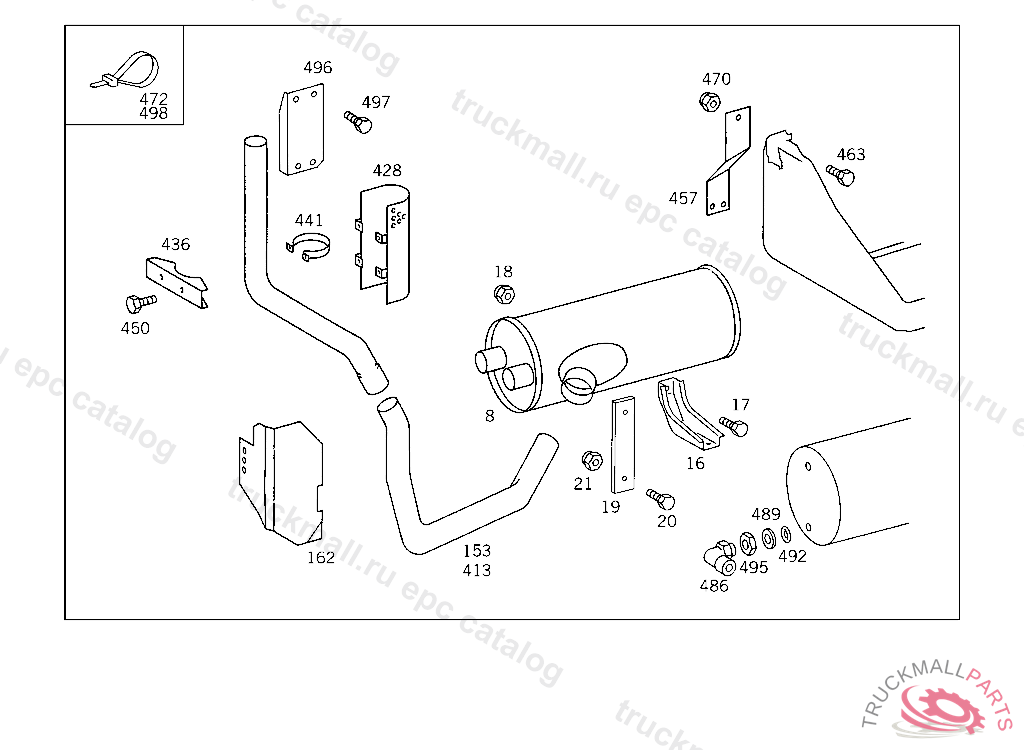

8
EXHAUST MUFFLER
8
EXHAUST MUFFLER
16
CONSOLE EXHAUST MUFFLER,FRONT
17
SCREW CONSOLE TO SIDE MEMBER
18
NUT SUPPORT TO SIDE MEMBER
19
BASE CONSOLE TO SIDE MEMBER
20
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER M 14X1.5X75
21
NUT STRAP TO BRACKET
21
NUT , Replaced By: N910113010000
153
REAR EXHAUST PIPE , Replaced By: A6454900621
153
REAR EXHAUST PIPE , Replaced By: A6554903821
153
REAR EXHAUST PIPE , Replaced By: A6554900921
153
REAR EXHAUST PIPE , Replaced By: A6554901821
153
REAR EXHAUST PIPE , Replaced By: A6554902221
153
REAR EXHAUST PIPE , Replaced By: A6554902921
153
REAR EXHAUST PIPE , Replaced By: A6554924505
153
EXHAUST PIPE FROM EXHAUST MUFFLER TO CAB REAR PANEL
153
REAR EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
153
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
153
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
153
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
153
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
153
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
153
REAR EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
153
REAR EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
153
EXHAUST PIPE FROM EXHAUST MUFFLER TO BRACKET AT SIDE MEMBER
153
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
153
REAR EXHAUST PIPE FROM EXHAUST MUFFLER TO BRACKET AT SIDE MEMBER
162
PROTECTIVE PLATE TAIL PIPE,BOTTOM, TO BE ADAPTED DURING ASSEMBLY
413
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
428
PROTECTIVE PLATE (HEAT SHIELD)
428
PROTECTIVE PLATE EXHAUST PIPE
428
BRACKET REAR EXHAUST PIPE
436
BASE PLATE HEAT SHIELD TO TAILPIPE
441
CLAMP EXHAUST PIPE TO BRACKET
450
SCREW BRACKET TO CROSS CONNECTION STRUT
450
SCREW , Replaced By: N304017008034
457
BRACKET , Replaced By: A6554313340
457
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
463
SCREW BRACKET TO FRAME SIDE MEMBER
463
SCREW END PIECE TO EXHAUST PIPE M 10X25
470
NUT STRAP TO BRACKET
470
NUT , Replaced By: N910113010000
472
LOOM TIE LINE MOUNTING
486
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
486
FITTING , Replaced By: A0009909171
489
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
489
THRUST RING CHECK VALVE TO AIR RESERVOIR
492
O-RING CHECK VALVE TO AIR RESERVOIR
495
NUT CHECK VALVE TO AIR RESERVOIR
496
BRACKET CONSOLE TO FENDER BRACKET
497
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
497
SCREW , Replaced By: N304017008018
497
SCREW SUPPORT TO FENDER
498
LOOM TIE LINE MOUNTING 280 MM
999
RUBBER BUFFER BRACKET TO SUPPORT
999
DAMPING PAD PARTICLE FILTER
999
BRACKET RUBBER BUFFER,5 129244
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
MOUNTING LEFT VIBRATION ABSORBER
999
BRACKET REAR EXHAUST PIPE TO BRACKET
999
BRACKET TAIL PIPE
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET EXHAUST MUFFLER
999
CONSOLE REAR EXHAUST MUFFLER 126 MM
999
CONSOLE REAR EXHAUST MUFFLER 276 MM
999
BRACKET ,5 535799, Replaced By: A6204925341
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
PROTECTIVE PLATE REAR EXHAUST PIPE
999
SUPPORT TAIL PIPE ON THE RIGHT
999
BRACKET TAIL PIPE ON THE RIGHT
999
BRACKET TAIL PIPE ON THE RIGHT
999
BRACKET , Replaced By: A6204925341
999
BRACKET REAR EXHAUST PIPE TO MUFFLER SUPPORT
999
REAR EXHAUST PIPE TAIL PIPE,5 535799
999
REAR EXHAUST PIPE TAIL PIPE,5 535799
999
END PIECE BEHIND CAB,UPWARD
999
REAR EXHAUST PIPE , Replaced By: A6254921114
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER ,5 518156
999
EXHAUST MUFFLER ,5 535800
999
BRACKET POSTERIOR MUFFLER TO SIDE MEMBER
999
BASE PLATE TAIL PIPES TO BRACKET,K 120829
999
BRACKET TAIL PIPE
999
BRACKET EXHAUST MUFFLER
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE REAR,K 002403
999
CLAMP TAIL PIPE TO BRACKET
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE REAR
999
CLAMP , Replaced By: A6454900341, +002A6244920053
999
PROTECTIVE PLATE (HEAT SHIELD)
999
EXHAUST PIPE REAR
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET TAIL PIPE TO APPARATUS SUPPORT
999
END PIECE TAIL PIPE
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
PROTECTIVE PLATE SCREENING PLATE,5 547064
999
END PIECE TAIL PIPE,5 756873
999
REAR EXHAUST PIPE ,5 444691
999
END PIECE , Replaced By: A6554922814
999
REAR EXHAUST PIPE BEHIND CAB,UPWARD
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER,5 557346
999
BRACKET TAIL PIPE
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
END PIECE ,K 005042
999
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6554922041
999
END PIECE
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,RIGHT
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
END PIECE BEHIND CAB,UPWARD
999
BRACKET , Replaced By: A6554922941
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE , Replaced By: A6554926905
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
999
BRACKET VERTICAL TAIL PIPE
999
REAR EXHAUST PIPE , Replaced By: A6554922914
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
999
BRACKET EXHAUST MUFFLER TO BRACKET
999
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE , Replaced By: A6554901021
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE TAIL PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE TAIL PIPE ON THE RIGHT
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
BASE PLATE TAIL PIPES TO BRACKET,K 120830
999
REAR EXHAUST PIPE TAIL PIPE TO EXHAUST MUFFLER
999
REAR EXHAUST PIPE TAIL PIPE TO EXHAUST MUFFLER
999
REAR EXHAUST PIPE AT MUFFLER,RIGHT
999
REAR EXHAUST PIPE AT MUFFLER,LEFT
999
REAR EXHAUST PIPE AT MUFFLER,RIGHT
999
REAR EXHAUST PIPE AT MUFFLER,LEFT
999
REAR EXHAUST PIPE TAIL PIPE
999
BRACKET TAIL PIPE,5 756872K 015412
999
REAR EXHAUST PIPE ,5 501689
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE (TAIL PIPE)
999
BRACKET TAIL PIPE
999
REAR EXHAUST PIPE ,5 501689, Replaced By: A6584920104
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW BRACKET TO SIDE MEMBER
