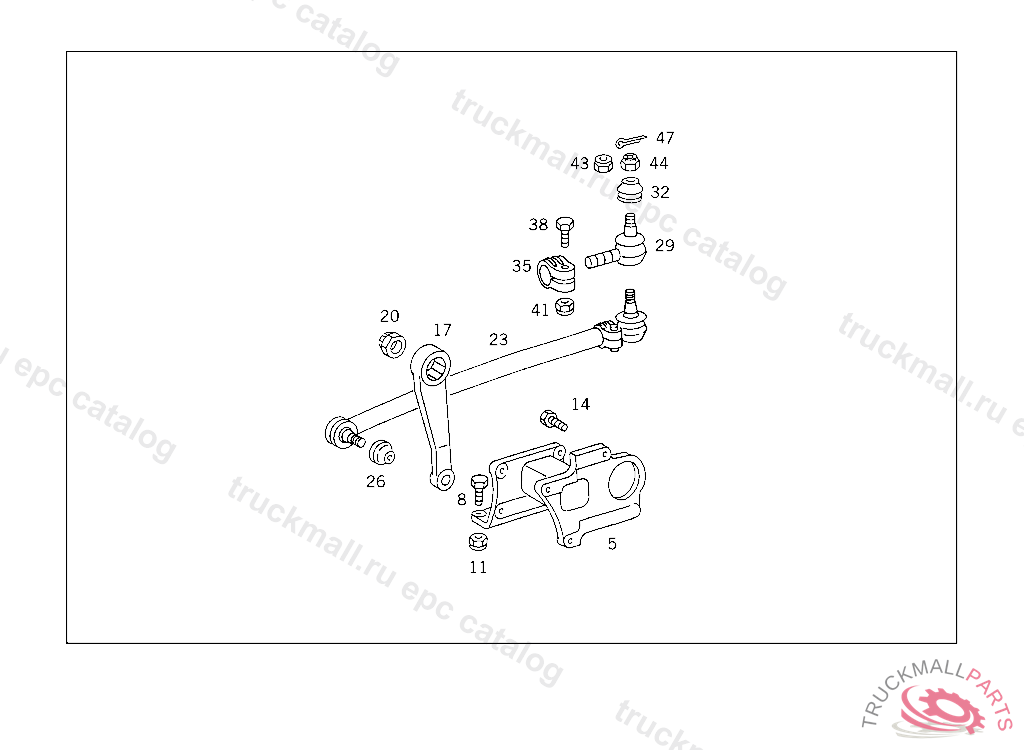

Поз.
Артикул
Описание
5
STEERING SUPPORT AT FRAME
5
STEERING SUPPORT STEERING TO FRAME, TO BE ADAPTED DURING ASSEMBLY
8
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
8
SCREW BRACKET TO REAR AXLE M 16X1.5X75
8
SCREW , Replaced By: N308676016004
11
NUT , Replaced By: N910113016001
11
NUT CONSOLE TO SUPPORT
14
SCREW , Replaced By: N308676016006
14
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
17
PITMAN ARM
20
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
23
DRAG LINKEHRENREICH
23
DRAG LINKEHRENREICH
23
DRAG LINKLEMFOERDER
23
DRAG LINKLEMFOERDER
23
DRAG LINK FROM PITMAN ARM TO FRONT AXLE I LEMFORDER,K 226467
23
DRAG LINK FROM PITMAN ARM TO FRONT AXLE I LEMFORDER,K 226467
26
BOOT DRAG LINK
29
DRAG LINK END R.H. THREAD EHRENREICH
29
DRAG LINK END , Replaced By: A0014600848
29
DRAG LINK END , Replaced By: A0014601248, +001A0019905451
29
DRAG LINK END , Replaced By: A0014607748
29
DRAG LINK END , Replaced By: A0014602248
29
DRAG LINK END , Replaced By: A0014602248
29
DRAG LINK END , Replaced By: A0014607748
32
BOOT DRAG LINK
35
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
35
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
35
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER, TO 002 460 14 05, 15 05,K 226468
38
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
38
SCREW , Replaced By: N308676012017
41
NUT , Replaced By: N910113012003
41
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
43
NUT DRAG LINK END M 24X1.5
44
NUT , Replaced By: N000937024002
44
NUT DRAG LINK TO LEVER
47
COTTER PIN DRAG LINK TO LEVER
999
DRAG LINK FROM PITMAN ARM TO FRONT AXLE I LEMFORDER,K 226468
999
DRAG LINK FROM PITMAN ARM TO FRONT AXLE I LEMFORDER,K 226468
999
DRAG LINK FROM PITMAN ARM TO FRONT AXLE I TRW,K 226468
999
DRAG LINK FROM PITMAN ARM TO FRONT AXLE I TRW,K 226468
999
STEERING SUPPORT AT FRAME
999
STEERING SUPPORT AT FRAME,5 963779655.490,492,494,496,590,591,593K 001113655.436,437,484,486,487,532,533,582,583
999
PITMAN ARM AT STEERING GEAR
999
FITTED SCREW , Replaced By: N000609020017
999
FITTED SCREW STEERING BRACKET TO FRAME
999
SCREW ENGINE SUPPORT TO BELL HOUSING M 16X68
999
SCREW STEERING SUPPORT TO FRAME
999
SCREW BRACKET TO REAR AXLE M 20X1.5X45
