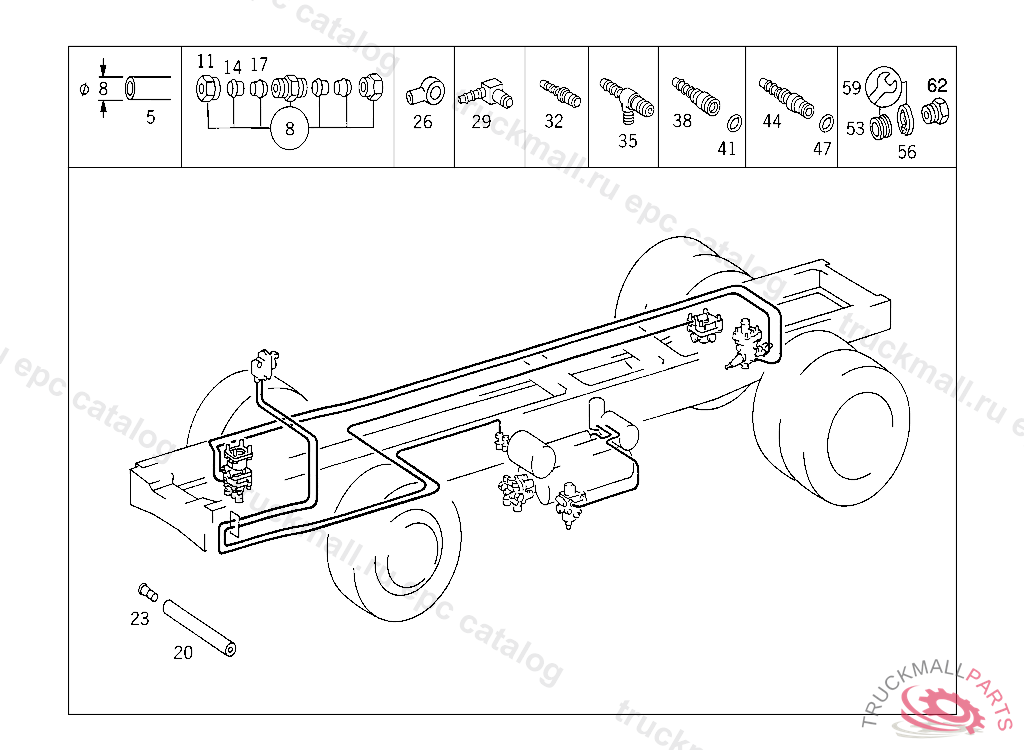

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT LINE CONNECTION
14
GLAND LINE CONNECTION
17
SLEEVE LINE CONNECTION
20
HOSE LEAK LINE, ORDER BY THE METER
23
SLEEVE LEAK LINE
26
BANJO UNION HEATING CONNECTION,K 169122
26
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
29
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
29
ELBOW FITTING , Replaced By: A0049905371
29
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
32
CONNECTOR HOSE WIDTH, 6 MM,TO M16
32
CONNECTOR , Replaced By: A0029905478
35
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
38
CONNECTOR HOSE WIDTH, / I.D., 6 MM
41
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
44
CONNECTOR DISTRIBUTOR TO CAB
47
SEAL RING
53
LOCK RING LINE CONNECTION
53
SEAL RING , Replaced By: A0009940747
56
LOCK , Replaced By: A0009945448
56
LOCK LINE CONNECTION
59
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
59
REPAIR KIT , Replaced By: A0309971748
62
SCREW. UNION SCREW , Replaced By: A0009973734
62
SCREW. UNION SCREW LINE CONNECTION
