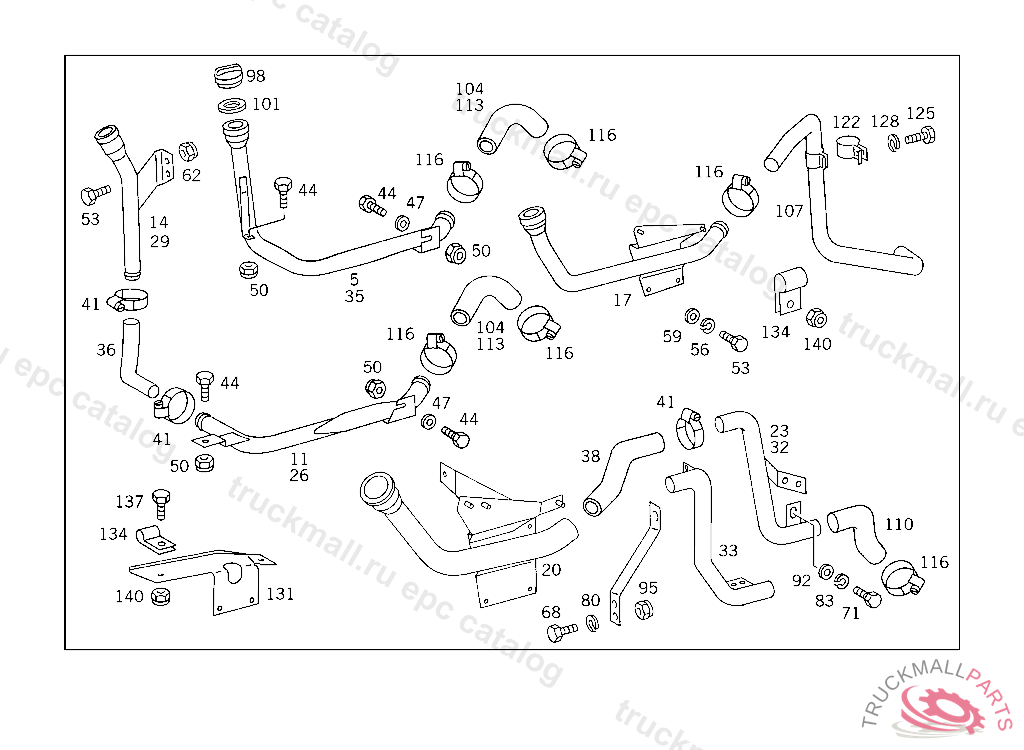

Поз.
Артикул
Описание
20
PIPE ELBOW (OIL FILLER PIPE)
32
PIPE ELBOW , Replaced By: A6565280209
33
PIPE (OIL FILLER PIPE)
38
HOSE CONNECTION OF OIL FILLER PIPES
41
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
41
CLAMP , Replaced By: N000000000671
68
SCREW LEVER TO ENGINE CONTROL SHAFT
71
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
71
SCREW , Replaced By: N304017008016
80
WASHER COMPRESSED AIR LINE TO BRACKET
83
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
92
WASHER EXHAUST MUFFLER TO STRAP
92
WASHER , Replaced By: N000125008443
95
NUT AT FILTER BRACKET
98
CAP OIL REFILLING
98
CAP OIL REFILLING
98
CAP OIL REFILLING
101
GASKET
101
GASKET , Replaced By: A1020180380
110
HOSE CONNECTION OF OIL FILLER PIPES
116
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
116
CLAMP , Replaced By: N000000000671
131
BRACKET OIL DIPSTICK GUIDE TUBE
134
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
137
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
137
SCREW , Replaced By: N304017008016
140
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
140
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
