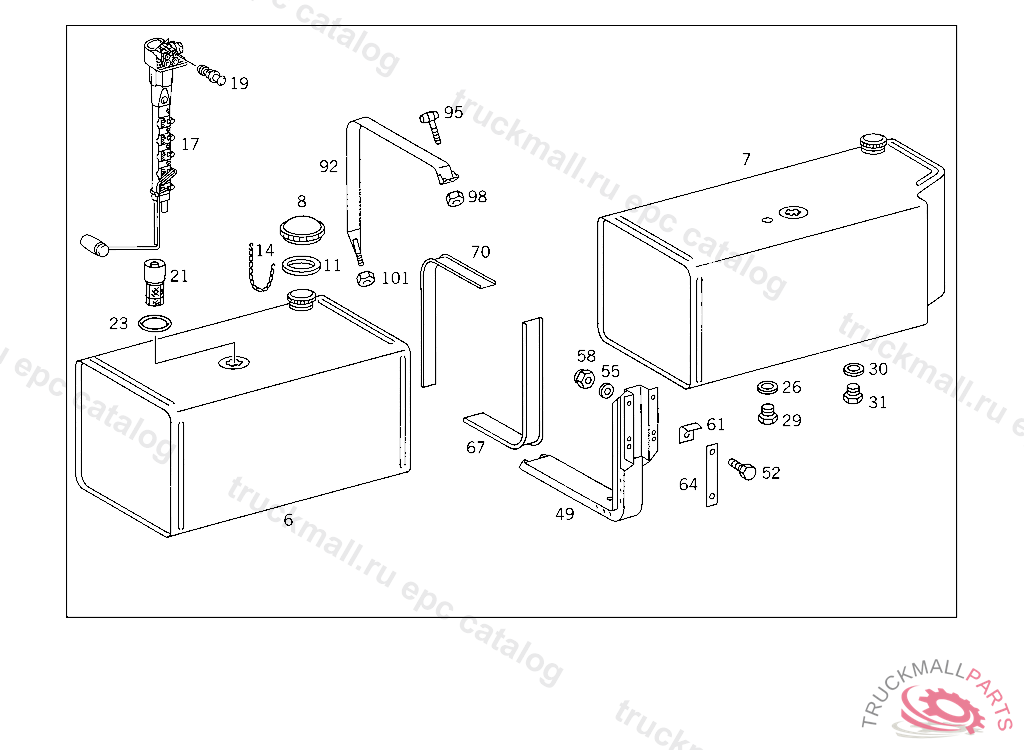

Поз.
Артикул
Описание
6
FUEL TANK400 L
6
FUEL TANK600 L
6
FUEL TANK ANGULAR, 400-LITER
7
FUEL TANK580 L
8
FILLER CAP
8
FILLER CAP , Replaced By: A0004700305
11
SEAL RING
14
CHAIN FILLER CAP
17
SENDER UNIT FUEL GAUGE,K 169123
17
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426717, +001A0005409917
17
SENDER UNIT , Replaced By: A0085428417
19
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
21
FUEL STRAINER FUEL TANK,K 169123
21
FUEL STRAINER FUEL TANK,K 169122
23
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
26
SEAL RING FUEL LINE TO FEED PUMP
29
SCREW PLUG FUEL TANK
29
SCREW PLUG , Replaced By: N007604014110
30
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
31
SCREW PLUG AT TANK
49
SUPPORT FUEL TANK,REAR
49
SUPPORT FUEL TANK,REAR
49
SUPPORT FUEL TANK,FRONT
49
SUPPORT FUEL TANK,FRONT
49
SUPPORT FUEL TANK,FRONT
49
SUPPORT FUEL TANK,REAR
49
SUPPORT FUEL TANK,REAR
49
SUPPORT FUEL TANK TO FRAME
49
SUPPORT FUEL TANK TO FRAME
49
SUPPORT FUEL TANK,FRONT
49
SUPPORT FUEL TANK,FRONT
52
SCREW SUPPORT TO TRANSMISSION M 16X1.5X65
52
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
52
SCREW , Replaced By: N308676016005
52
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
52
SCREW , Replaced By: N308676016004
52
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
52
SCREW , Replaced By: N308676016007
52
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
52
SCREW , Replaced By: N308676016006
55
WASHER SUPPORT TO SIDE MEMBER
55
WASHER SUPPORT TO SIDE MEMBER
55
WASHER TORSION BAR TO BEARING BRACKET
55
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
58
NUT CONSOLE TO SUPPORT
58
NUT , Replaced By: N910113016001
61
SHIM CROSS MEMBER AND STRUT TO SIDE MEMBER
64
SHIM SUPPORT TO FRAME 240X40X5 MM
67
PAD FUEL TANK TO CONSOLE
67
PAD FUEL TANK TO CONSOLE
70
PAD TANK TO CONSOLES
92
STRAP FUEL TANK TO CONSOLE
92
STRAP FUEL TANK TO SUPPORT
95
SCREW STRAP TO SUPPORT
95
SCREW , Replaced By: A6454750071
98
NUT BRACKET TO SIDE MEMBER,K 035196
98
NUT , Replaced By: N308673014001
101
NUT STRAP TO SUPPORT
999
WASHER SPARE WHEEL CARRIER
