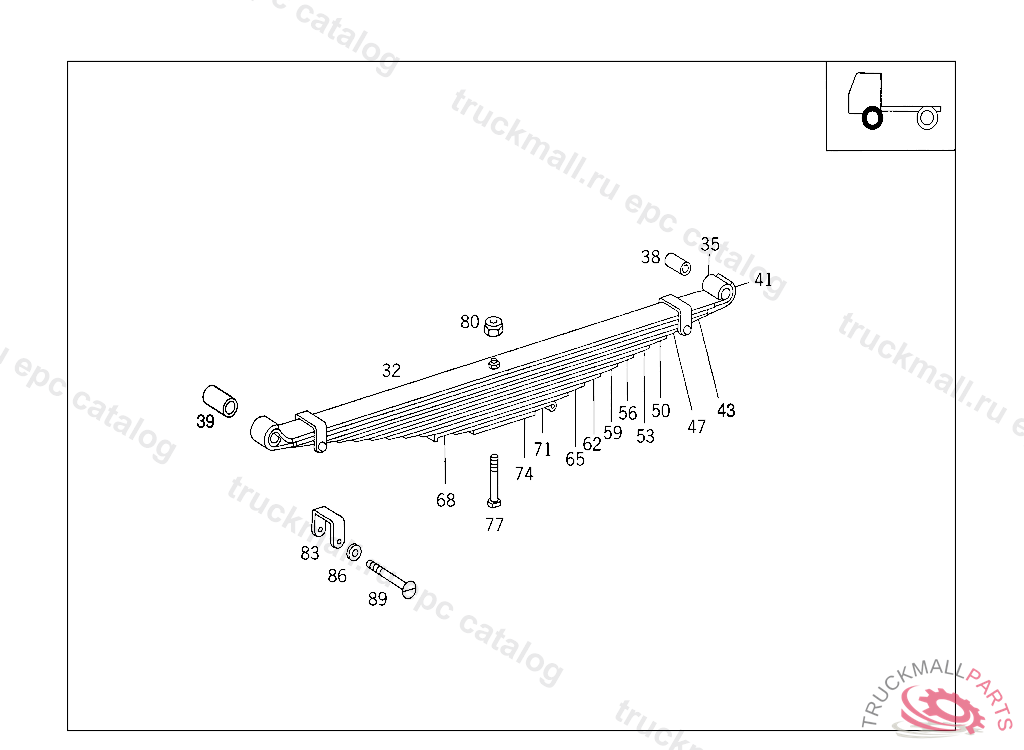

2044 - 656.190 - 32 SPRINGS AND SUSPENSION
Поз.
Артикул
Описание
32
FRONT SPRING (TRAPEZOIDAL SPRING),NUMBER OF LEAVES: "13",K 063501
32
FRONT SPRING 13-LEAF
35
SPRING LEAFNO.1,K 063501
35
SPRING LEAFNO.1
38
BUSHING FRONT
38
BUSHING FRONT
39
RUBBER MOUNTING
41
SPRING LEAFNO.2,K 063501
41
SPRING LEAFNO.2
43
SPRING LEAFNO.3,K 063501
43
SPRING LEAFNO.3
47
SPRING LEAFNO.4
47
SPRING LEAFNO.4
50
SPRING LEAFNO.5
50
SPRING LEAFNO.5
53
SPRING LEAFNO.6
53
SPRING LEAFNO.6
56
SPRING LEAFNO.7
56
SPRING LEAFNO.7
59
SPRING LEAFNO.8
59
SPRING LEAFNO.8
62
SPRING LEAFNO.9
62
SPRING LEAFNO.9
65
SPRING LEAFNO.10
65
SPRING LEAFNO.10
68
SPRING LEAFNO.11
68
SPRING LEAFNO.11
71
SPRING LEAFNO.12
71
SPRING LEAFNO.12
74
SPRING LEAFNO.13
74
SPRING LEAFNO.13
77
SCREW (SPRING BOLT)
80
NUT STEERING SUPPORT TO FRAME
80
NUT , Replaced By: N910113014000
83
SPRING CLAMP SPRING EYE,FRONT AND REAR
86
WASHER FOR SPRING CLAMPS
89
SCREW FOR SPRING CLAMPS
