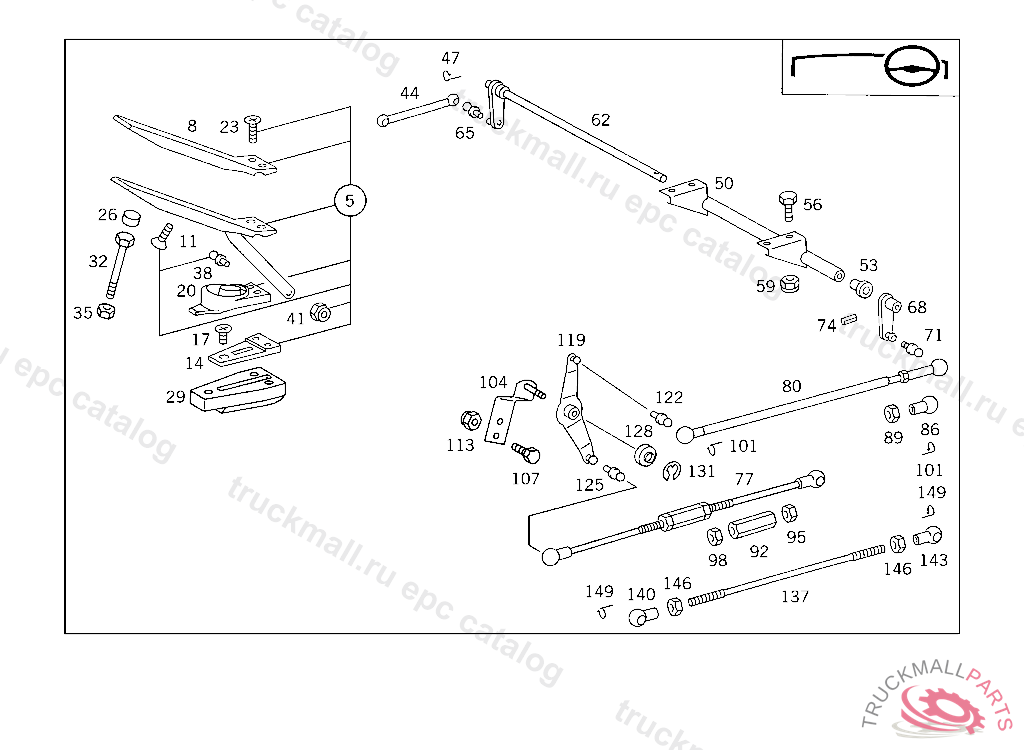

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
STOP ACCELERATOR PEDAL
29
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
32
SCREW VALVE TO BRACKET
32
SCREW VALVE TO BRACKET, Replaced By: N304014008002
35
NUT
38
BALL PIVOT LOAD SENSOR
41
NUT PUMP TO BRACKET
41
NUT , Replaced By: N913004006001
44
BALL SOCKET ROD TO ACCELERATOR PEDAL
47
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
50
BEARING TUBE CONTROL SHAFT
53
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
56
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
56
SCREW , Replaced By: N304017008016
59
NUT , Replaced By: N913004008001
59
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
59
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
SHAFT (CONTROL SHAFT)
65
BALL PIVOT
68
LEVER (CONTROL LEVER)
71
BALL PIVOT
74
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
74
CLAMPING SLEEVE , Replaced By: N308752004001
77
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
80
ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER
80
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
86
BALL SOCKET PULL ROD TO LEVER
89
NUT
92
NUT TURNBUCKLE
95
NUT BALL SOCKET TO ROD
98
NUT BALL PIVOT TO LEVER
101
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
104
BEARING BRACKET INTERMEDIATE BEARING
107
SCREW BRACKET TO CROSS CONNECTION STRUT
107
SCREW , Replaced By: N304017008034
113
NUT , Replaced By: N913004008001
113
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
113
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
119
LEVER (INTERMEDIATE LEVER)
122
BALL STUD. BALL PIVOT TOP B10X4,5 MM
125
BALL PIVOT BOTTOM B13X5 MM
128
COVERING INTERMEDIATE BEARING
131
LOCK PLATE INTERMEDIATE BEARING
137
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
140
BALL SOCKET ROD TO BALL PIVOT
143
BALL SOCKET ROD TO BALL PIVOT
146
NUT
149
SECURING CLIP. CIRCLIP
