Поз.
Артикул
Описание

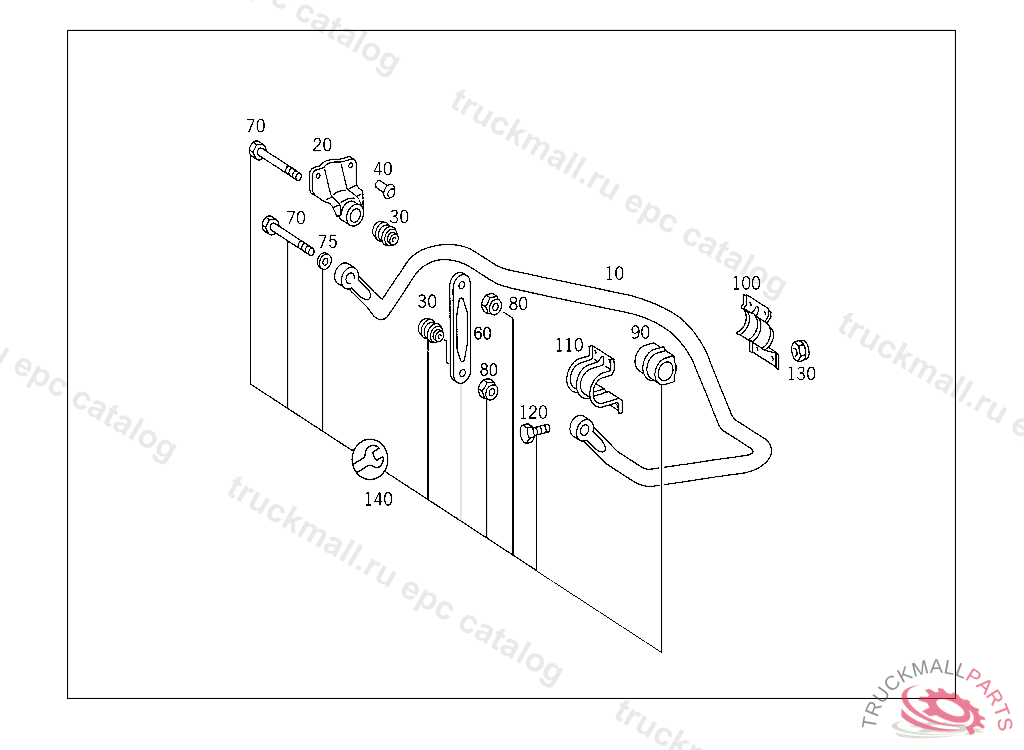

10
TORSION BAR50 MM, N 000001 P 108936
10
TORSION BAR , Replaced By: A6693260165
10
TORSION BAR ,B 898208D 054473, Replaced By: A6883208311
10
TORSION BAR46 MM, N 000001 P 108936
10
TORSION BAR50 MM
10
TORSION BAR ,D 054472, Replaced By: A6883208211
20
CONSOLE TORSION BAR,RIGHT, N 000001 P 108936
20
CONSOLE RIGHT, 850733 N 000001 P 000001 N 000000 P 108935
20
CONSOLE RIGHT,D 054472
20
CONSOLE TORSION BAR,LEFT, 850733 N 000001 P 000001
20
CONSOLE LEFT,D 054472
20
CONSOLE LEFT, N 000001 P 108936
30
BEARING BRACKET TO SHACKLE
30
BEARING TORSION BAR BEARING
40
RIVET REINFORCEMENT TO SIDE MEMBER
40
RIVET10X34 MM, TO BE ADAPTED DURING ASSEMBLY
40
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
60
SHACKLE TORSION BAR TO CONSOLE, N 000001 P 136823
60
SHACKLE
70
HEXAGON HEAD BOLT. SCREW REINFORCEMENT TO SIDE MEMBER M 12X55
70
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
75
WASHER COVER PLATE TO FRAME
80
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
90
RUBBER MOUNTING INCLUDED IN REPAIR KIT 50 MM
90
RUBBER MOUNTING INCLUDED IN REPAIR KIT, N 000001 P 108936
90
RUBBER MOUNTING I.D., 41 MM
90
RUBBER MOUNTING TORSION BAR 46 MM, N 000001 P 108936
90
RUBBER MOUNTING I.D., 46 MM
100
INTERMEDIATE PIECE TORSION BAR TO REAR AXLE
110
BRACKET TORSION BAR TO REAR AXLE, N 000001 P 108936
110
BRACKET TORSION BAR TO REAR AXLE
110
BRACKET TORSION BAR TO REAR AXLE
110
BRACKET , 861569 N 000000 P 000000, Replaced By: A6673261440, +008N000933008153
110
BRACKET TORSION BAR TO REAR AXLE
120
SCREW BRACKET TO CROSS CONNECTION STRUT
120
SCREW CABLE HARNESS MOUNTING
120
SCREW , Replaced By: N304014008001
120
SCREW SPRING BRACKET TO FRAME
120
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
130
NUT STRAP TO BRACKET
140
REPAIR KIT TORSION BAR,REAR TO 50 MM, N 000001 P 108936
140
REPAIR KIT TORSION BAR,REAR TO 46 MM, N 000000 P 108935
140
REPAIR KIT TORSION BAR,REAR 46 MM, N 000001 P 108936
140
REPAIR KIT , N 000000 P 108935, Replaced By: A6673204411
140
REPAIR KIT , Replaced By: A6673204511
140
REPAIR KIT TORSION BAR,REAR, N 000000 P 108935
140
REPAIR KIT TORSION BAR,REAR, DELIVER ADDITIONALLY 4X 667 320 00 73
