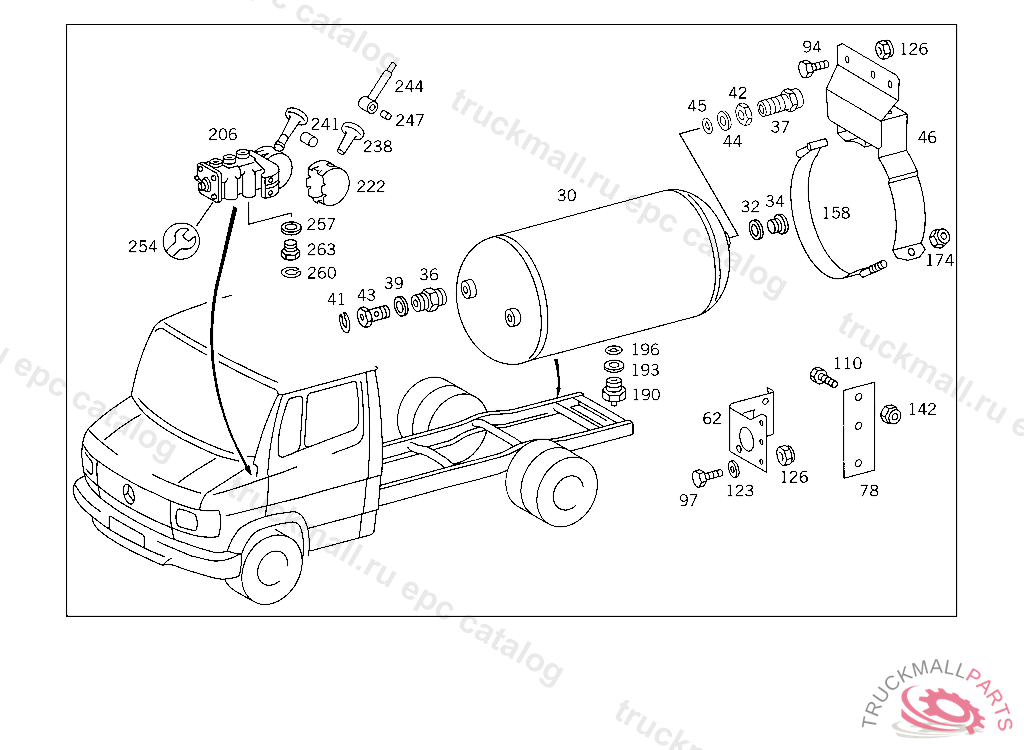

Поз.
Артикул
Описание
30
RESERVOIR10L,206 MM,8.5 BAR
30
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
32
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
34
SCREW PLUG , Replaced By: N000908022011
34
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
36
FITTING LINE CONNECTION
37
FITTING LINE CONNECTION
39
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
41
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
42
NUT CHECK VALVE TO AIR RESERVOIR
43
SCREW. UNION SCREW LINE CONNECTION
44
THRUST RING CHECK VALVE TO AIR RESERVOIR
44
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
45
O-RING CHECK VALVE TO AIR RESERVOIR
46
BRACKET AIR RESERVOIR, N 000000 P 153143
62
BRACKET RIGHT, N 000001 P 153144 N 001923 P 236565
62
BRACKET , Replaced By: A6684322740
62
BRACKET RIGHT, N 000001 P 153144 N 001923 P 236565
78
BRACKET AIR RESERVOIR
94
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE M 12X25, N 001923 P 236565
97
HEXAGON HEAD BOLT BRACKET TO BRACKET
110
SCREW STRUT TO CROSS MEMBER M 10X25
123
WASHER BRACKET TO COVERING
123
WASHER , Replaced By: N009021010209
126
NUT END PIECE TO EXHAUST PIPE
142
NUT CROSS MEMBER TO SIDE MEMBERS
158
STRAP VACUUM TANK
158
STRAP AIR RESERVOIR TO BRACKET
158
STRAP AIR RESERVOIR
158
STRAP AIR RESERVOIR TO BRACKET
174
NUT
190
VALVE DRAIN, Replaced By: A0004322407
190
VALVE. DRAIN VALVE DRAIN
190
VALVE DRAIN, Replaced By: A0004322107
193
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
193
THRUST RING CHECK VALVE TO AIR RESERVOIR
196
O-RING CHECK VALVE TO AIR RESERVOIR
206
VALVE PARKING BRAKE BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
206
VALVE PARKING BRAKE WABCO
206
VALVE PARKING BRAKE BOSCH
206
VALVE PARKING BRAKE WABCO
206
VALVE PARKING BRAKE BOSCH, 969903 N 000001 P 000001 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
222
PROTECTIVE CAPTO WABCO
222
COVERTO 001 430 37 81/46 81,BOSCH, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
222
PROTECTIVE CAPTO BOSCH
238
HANDLETO 002 430 29 81,WABCO
238
HANDLETO WABCO
238
HANDLETO 001 430 08 81,BOSCH
238
HANDLETO 000 430 85 81,WABCO,004 0
238
HANDLETO 345 430 73 81
238
HANDLE , Replaced By: A0009972477
238
HANDLE , Replaced By: A0009972877
241
BUSHINGBOSCH, 969903 N 000001 P 000001
244
CONNECTOR , Replaced By: A0004311064
244
ACTUATING PARTTO 001 430 37 81/46 81,BOSCH, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
244
ACTUATING PARTTO 001 430 07 81/20 81
247
PINTO 001 430 37 81/46 81,BOSCH, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
247
PINTO 001 430 37 81/46 81,BOSCH, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
254
BRAKE VALVE REPAIR KIT BOSCH,TO 001 430 37 81/46 81, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
254
REPAIR KITTO WABCO
254
LEVERTO 002 430 30 81
254
REPAIR KIT PARKING BRAKE TO 002 430 42 81/43 81,BOSCH
254
REPAIR KIT , Replaced By: A0004305206
254
REPAIR KIT , Replaced By: A0034303281
254
REPAIR KIT HAND BRAKE LEVER TO WABCO
254
REPAIR KITBOSCH,12 MM,001 430 37 81/46 81, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
257
SEAL RING , Replaced By: A0009940747
257
LOCK RING LINE CONNECTION
260
LOCK LINE CONNECTION
260
LOCK , Replaced By: A0009945448
263
SCREW. UNION SCREW , Replaced By: A0009973734
263
SCREW. UNION SCREW LINE CONNECTION
999
VALVE TAPPET22X4 MM,BOSCH
999
VALVE TAPPETTO 002 430 43 81,BOSCH
999
VALVE PARKING BRAKE BOSCH, 969903 N 000001 P 000001
999
REPAIR KIT BRAKE LINE COUPLING "WABCO"
999
REPAIR KIT BRAKE LINE COUPLING "KNORR"
