Поз.
Артикул
Описание

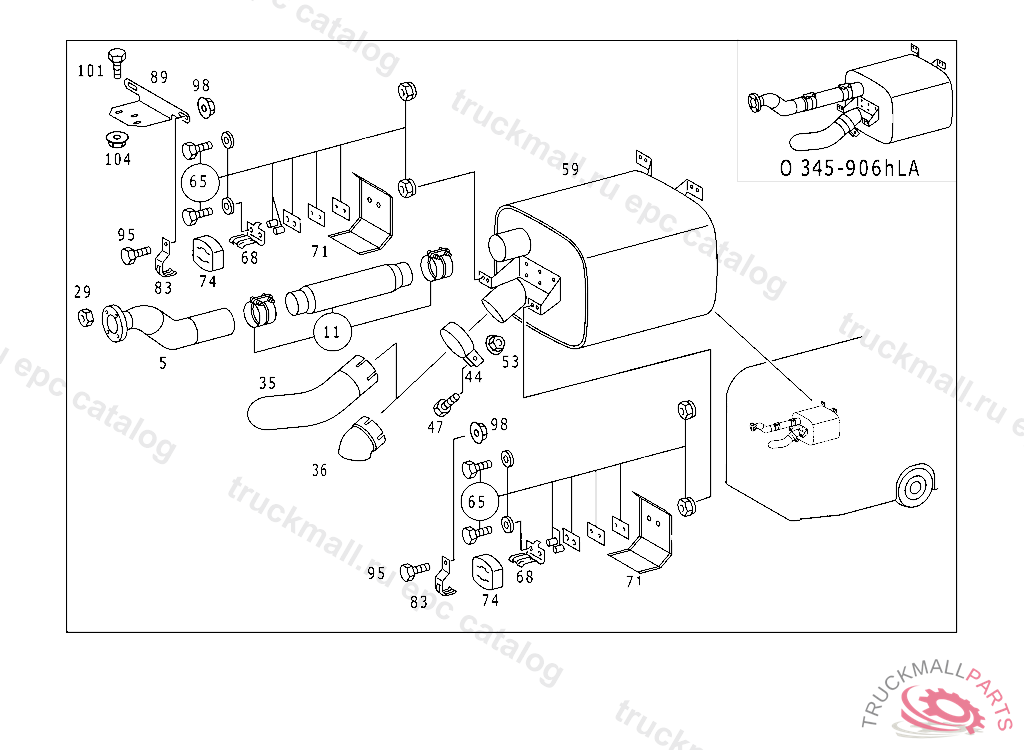

5
EXHAUST PIPE EXHAUST GAS TURBOCHARGER CONNECTION
5
CONNECTOR EXHAUST GAS TURBOCHARGER CONNECTION
11
FLEXIBLE METAL TUBE FRONT
29
NUT CONNECTING PIPE TO EXHAUST BRAKE
35
REAR EXHAUST PIPE AT MUFFLER
36
EXHAUST PIPE AT MUFFLER 120 MM, FROM IDENT NO. 097921
36
36
END PIECE AT MUFFLER TO A 628 490 23 14 / A 628 490 12 01
36
REAR EXHAUST PIPE AT MUFFLER
44
CLAMP , Replaced By: N071555124501
44
CLAMP END PIECE TO EXHAUST PIPE
44
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
47
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
47
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
47
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
53
NUT SUPPORTING STRUT AT BRACKET AT LEFT BOTTOM M12X1.5, A 20131120
53
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
53
NUT BRACKET TO SIDE MEMBER M12X1.5
59
EXHAUST MUFFLER
65
SUSPENSION EXHAUST MUFFLER SUSPENSION
68
CONSOLE EXHAUST MUFFLER
71
PROTECTIVE PLATE REAR EXHAUST MUFFLER
74
DAMPING PAD EXHAUST MUFFLER SUSPENSION
83
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
89
CONSOLE ON ENGINE SUPPORT
95
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
98
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
101
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
104
NUT HORN TO BRACKET M8
