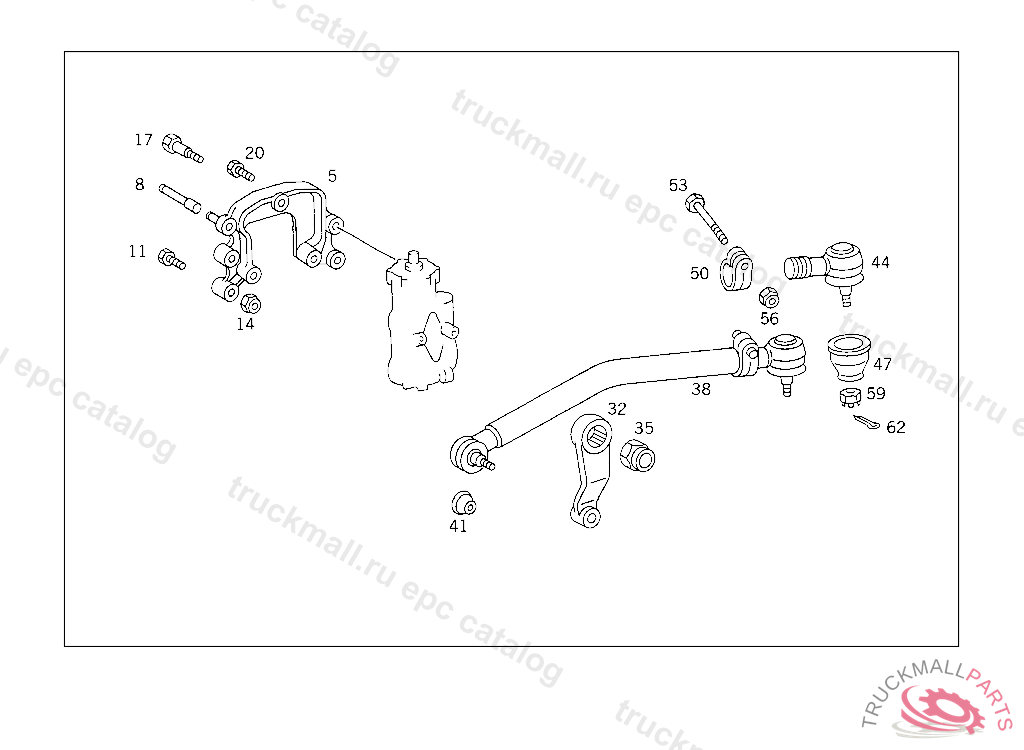

Поз.
Артикул
Описание
5
STEERING SUPPORT (STEERING BRACKET),K 244309
5
STEERING BRACKET
8
PIN
11
SCREW , Replaced By: N000960016206
11
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
14
NUT COMBINATION CYLINDER TO BEARING BRACKET
14
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
17
SCREW ,5 502947
20
SCREW , Replaced By: N308676014012
20
SCREW SUPPORT TO SIDE MEMBER M 14X45
32
PITMAN ARM , Replaced By: A6734630101
32
PITMAN ARM ,K 244309
32
PITMAN ARM ,K 244309
32
PITMAN ARM , Replaced By: A6734630101
35
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
38
DRAG LINKLEMFOERDER
38
DRAG LINKEHRENREICH
38
DRAG LINKLEMFOERDER
38
DRAG LINKEHRENREICH
38
DRAG LINK , Replaced By: A6734600805
38
DRAG LINK , Replaced By: A6734600905
38
DRAG LINK , Replaced By: A6734600705
38
DRAG LINK , Replaced By: A6734600605
41
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300885
41
BOOT FIXED PART OF JOINT
44
JOINT TO BE SCREWED INTO DRAG LINK EHRENREICH, Replaced By: A0024601048
44
JOINT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0013300335
44
BALL JOINT TO BE SCREWED INTO DRAG LINK EHRENREICH
44
JOINT , Replaced By: A0013300435
44
JOINT TO BE SCREWED INTO DRAG LINK LEMFOERDER
47
BOOT
47
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003301185
50
CLAMP , Replaced By: A4619955044
50
CLAMP , Replaced By: A4619955044
50
CLAMP CLAMP, ONE-HOLE
53
SCREW CLAMP TO DRAG LINK TO 344 338 73 45
56
NUT , Replaced By: N910113010002
56
HEXAGON NUT
59
NUT DRAG LINK TO PITMAN ARM
62
COTTER PINROCKINGER TYP 260 G140
