Поз.
Артикул
Описание

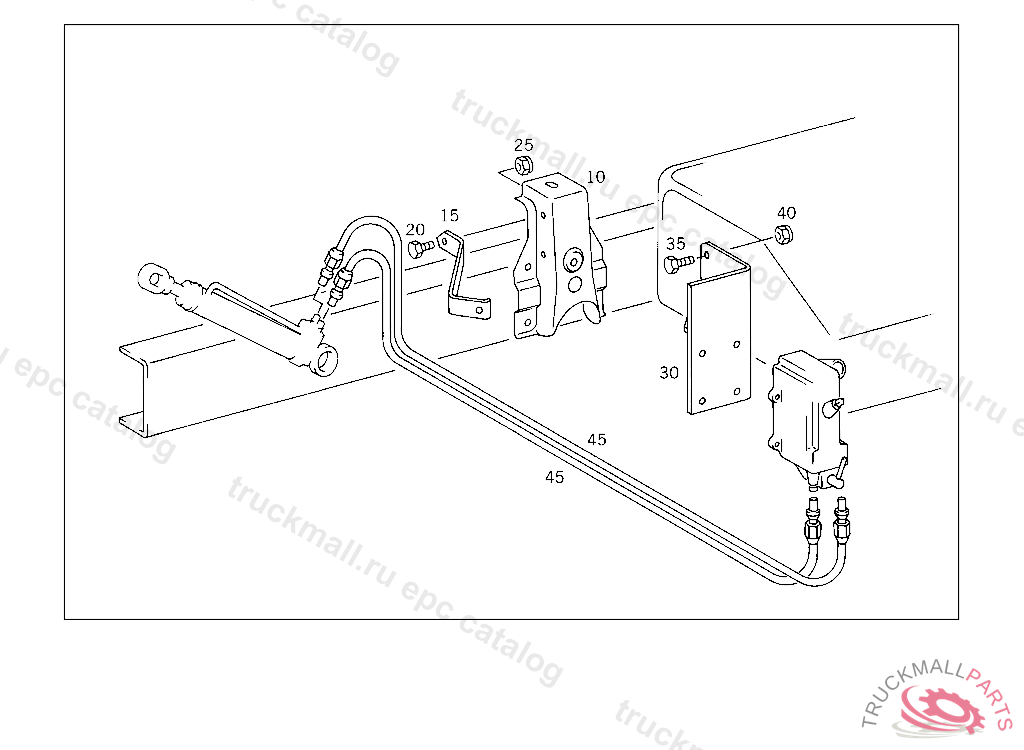

10
CONSOLE CAB SUSPENSION,REAR
15
BRACKET AT CONSOLE
20
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
25
NUT STRAP TO BRACKET
25
NUT , Replaced By: N910113010000
30
BRACKET BATTERY SUPPORT
30
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 470587, Replaced By: A6745500140
35
SCREW END PIECE TO EXHAUST PIPE M 10X25
40
NUT , Replaced By: N910113010000
40
NUT STRAP TO BRACKET
45
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
999
NUT SUPPORT TO SIDE MEMBER
999
SCREW CONSOLE TO SIDE MEMBER
999
BRACKET CAB SUSPENSION,REAR LEFT
999
BRACKET , Replaced By: A6753200943
999
HOSE FROM HYDRAULIC LINE TO CYLINDER
999
BRACKET AT CONSOLE
999
HOSE FROM HYDRAULIC LINE TO CYLINDER
