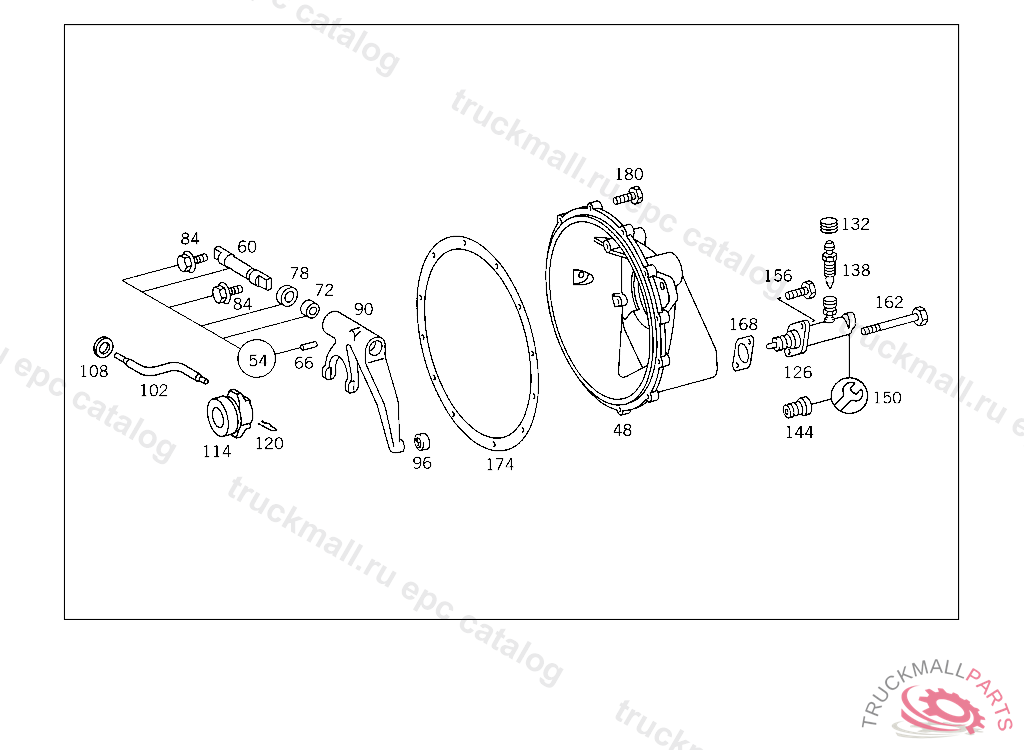

Поз.
Артикул
Описание
48
BELL HOUSING
54
SHAFT (PARTS KIT),RELEASE SHAFT
60
SHAFT (CLUTCH RELEASE SHAFT)
66
CLAMPING SLEEVE RELEASE LEVER TO SHAFT
72
NEEDLE BEARING RELEASE LEVER
78
SEAL RING RELEASE LEVER
84
SCREW RELEASE LEVER TO BELL HOUSING
90
RELEASE LEVER ,5 418252
96
BEARING RELEASE LEVER,5 418252
102
HOSE , Replaced By: A3205730036
108
SEAL RINGTO 000 553 03 05,000 553 18 05,
114
RELEASE BEARING
120
SPRING RELEASE LEVER TO RELEASE BEARING
120
SPRING , Replaced By: A6799930025
126
SLAVE CYLINDER CLUTCH ACTUATION
132
PROTECTIVE CAP ,5 962906
138
VALVE CLUTCH SLAVE CYLINDER
144
BOOT
150
REPAIR KIT CLUTCH SLAVE CYLINDER
156
SCREW END PIECE TO EXHAUST PIPE M 10X25
162
SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING M 10X170
168
GASKET CLUTCH SLAVE CYLINDER TO BELL HOUSING
168
GASKET , Replaced By: A6152510380
174
GASKET BELL HOUSING TO FLYWHEEL HOUSING
174
GASKET , Replaced By: A3812510680
180
SCREW REAR EXHAUST PIPE TO MUFFLER
999
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002524719, +002A0002523975
999
LEAF SPRING
999
STUD STARTING MOTOR MOUNTING
999
SLAVE CYLINDER , Replaced By: A0022952007
999
CLUTCH PRESSURE PLATE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE4 188090-4 277323 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0022508704, +001A0032508403, +008N000931008311
999
CLUTCH LINING ASBESTOS-FREE
999
CLUTCH DISC
999
CLUTCH PRESSURE PLATE CLUTCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CLUTCH DISC
999
CLUTCH DISC , Replaced By: A0062508003
999
CLUTCH DISC
999
CLUTCH DISC
999
CLUTCH DISC ASBESTOS-FREE LINING
999
CLUTCH DISC ASBESTOS-FREE LINING, COMPONENT PARTS NOT AVAILABLE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
HOSE RELEASE BEARING LUBRICATION
999
PROTECTIVE PLATE , Replaced By: A3522510106
999
SEAL RING RELEASE YOKE
999
BEARING RELEASE YOKE
999
SEAL RING RELEASE YOKE
999
BRACKET OUTSIDE
999
BRACKET INSIDE
999
BOOT RELEASE YOKE
999
HOUSING , Replaced By: A6762510002
999
BELL HOUSING
