Поз.
Артикул
Описание
5

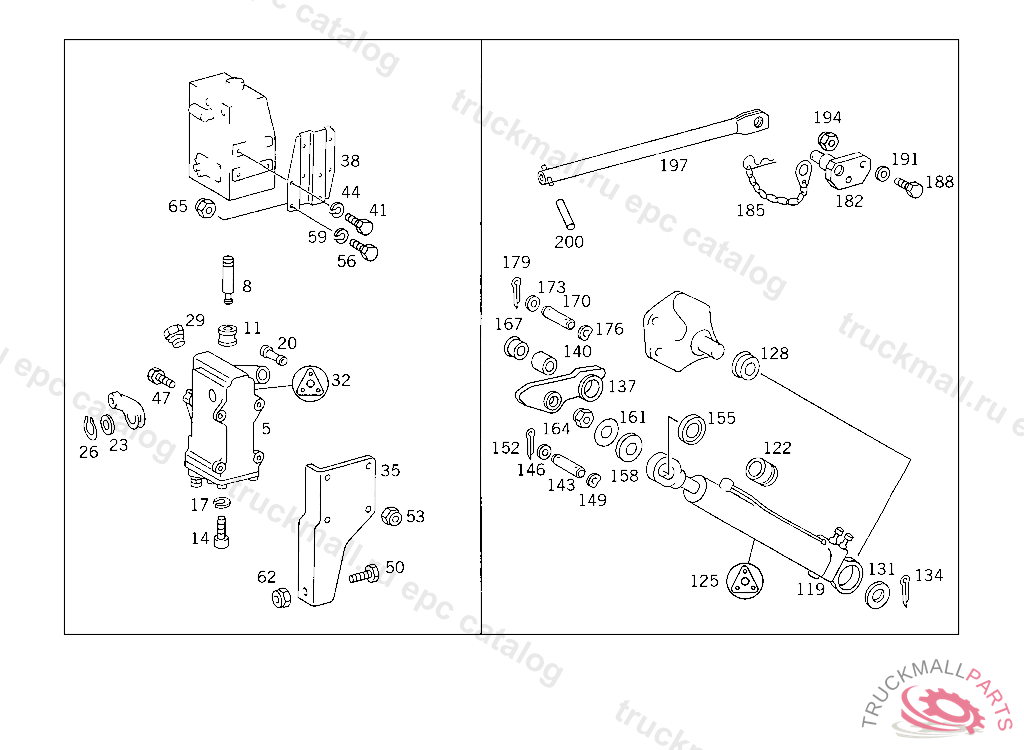

PUMP (HAND PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
5
PUMP , Replaced By: A0005537901
8
PISTONTO 000 553 89 01
8
PISTONTO 000 553 39 01,WEBER
11
VALVETO 000 553 39 01,WEBER
11
VALVETO 000 553 23 01,000 553 37 01,
11
VALVETO 000 553 89 01
14
SCREW
14
SCREW , Replaced By: N000000000190
17
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
20
FILTER
23
FITTED WASHER
26
LOCK RING
29
SCREW
29
SCREW , Replaced By: A0009901310
29
SCREW OIL FILLING TO 000 553 89 01
32
GASKET KIT HAND PUMP TO 000 553 37 01,000 553 39 01,WEBER
32
GASKET KIT HAND PUMP
35
BRACKET HYDRAULIC PUMP, 10/50 UP TO IDENT NO. 5 202493 20/60 UP TO IDENT NO. 5 202933
47
SCREW , Replaced By: N304017010002
47
SCREW BRACKET TO SIDE MEMBER
47
SCREW SUPPORT TO CROSS MEMBER M 10X28
50
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
53
NUT , Replaced By: N910113010000
53
NUT STRAP TO BRACKET
62
NUT STRAP TO BRACKET
62
NUT , Replaced By: N910113010000
119
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING
119
CYLINDER , Replaced By: A6745530405
122
GUIDE
122
GUIDETO 674 553 04 05
125
GASKET KIT HYDRAULIC CYLINDER WEBER
125
GASKET KIT HYDRAULIC CYLINDER
125
REPAIR KIT. GUIDE , Replaced By: A0015535005
128
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
131
WASHER , Replaced By: N000125025008
131
WASHER HYDRAULIC CYLINDER TO BEARING BRACKET, 387.006-154, 389.006-154, UP TO IDENT-NO. 4 646673,387.214-227, 393.311-586, 395.312-454 UP TO IDENT NO. 4 646483
134
COTTER PIN6.3X63 MM
155
WASHER HYDRAULIC CYLINDER TO CAB
158
WASHER HYDRAULIC CYLINDER TO CAB
161
WASHER HYDRAULIC CYLINDER TO CAB
161
WASHER HYDRAULIC CYLINDER TO CAB
164
NUT COMBINATION CYLINDER TO BEARING BRACKET
164
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
