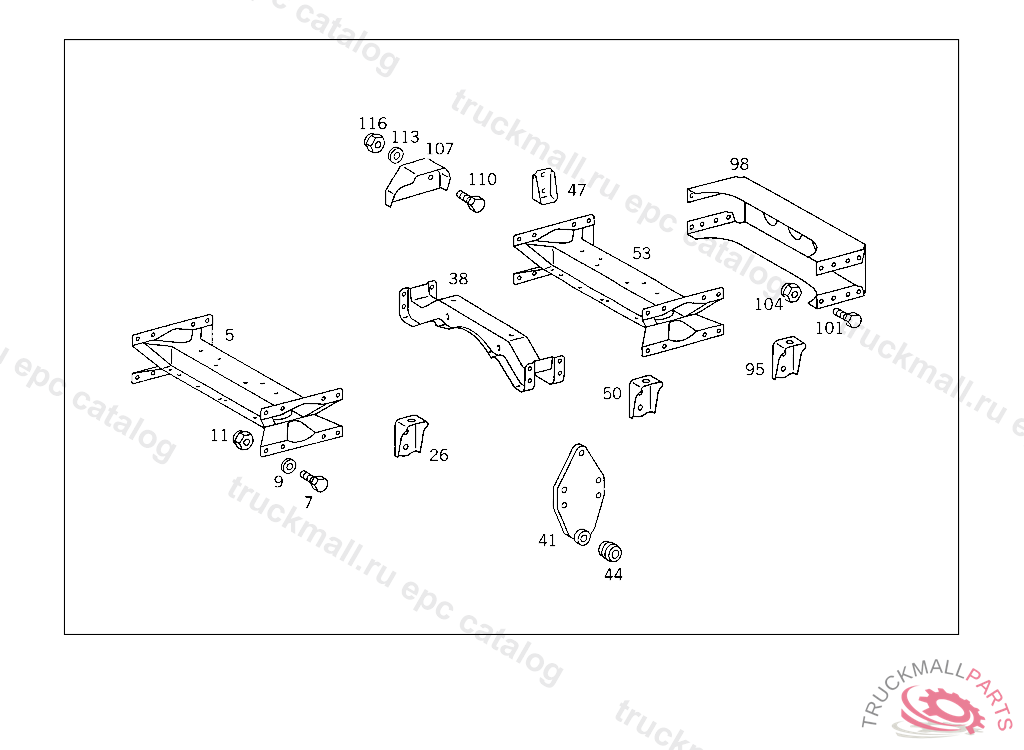

Поз.
Артикул
Описание
5
CROSS MEMBER REAR SPRING BRACKET NO.9
26
CONSOLE BODY MOUNTING
38
CROSS MEMBER SHOCK ABSORBER
47
REINFORCEMENT AT SIDE MEMBER
50
CONSOLE BODY MOUNTING
53
CROSS MEMBER IN FRONT OF REAR CROSS MEMBER
98
CROSS MEMBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 403207, Replaced By: A6743100132
98
CROSS MEMBER (REAR CROSS MEMBER),H.D.
101
SCREW , Replaced By: N308676014008
101
SCREW MOUNTING TO CONSOLE M 14X35
104
NUT STEERING SUPPORT TO FRAME
104
NUT , Replaced By: N910113014000
107
CONSOLE BODY MOUNTING
110
SCREW BRACKET TO SIDE MEMBER
110
SCREW , Replaced By: N304017010002
113
WASHER RADIATOR TO RUBBER MOUNTING
113
WASHER , Replaced By: N000125010532
116
NUT , Replaced By: N910113010000
116
NUT STRAP TO BRACKET
