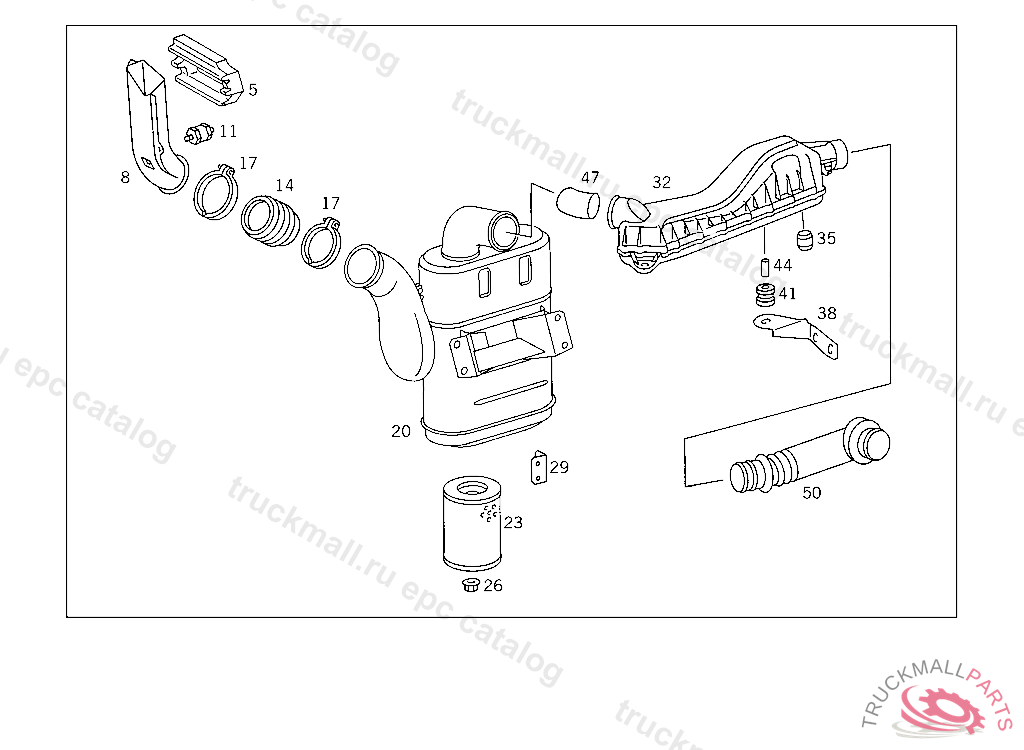

Поз.
Артикул
Описание
5
SEAL AIR INTAKE
8
AIR INTAKE PIPE
11
BUFFER REFRIGERANT LINE TO CAB
14
BOOT AIR INTAKE
17
CLAMP BOOT TO INTAKE PIPE
20
AIR CLEANERMANN & HUMMEL
23
FILTER ELEMENT
26
NUT
26
NUT
29
BRACKET AT SIDE MEMBER
32
MUFFLER (INTAKE MUFFLER)
35
RUBBER MOUNTING BRACKET TO BEARING BRACKET
38
BRACKET INTAKE MUFFLER
41
RUBBER MOUNTING INTAKE MUFFLER TO BRACKET
44
SPACER TUBE PUMP TO FRAME SIDE MEMBER 12X21 MM
47
HOSE TO OIL BATH AIR CLEANER
50
HOSE FROM MUFFLER TO ENGINE
999
PIPE SOCKET
999
CLAMP
999
NUT
999
FILTER ELEMENT AIR CLEANER
999
COVER LOWER PART
999
AIR CLEANER , Replaced By: A0160945902
999
AIR CLEANERMANN & HUMMEL
999
HOSE FROM MUFFLER TO AIR CLEANER
999
BOOT AIR INTAKE
