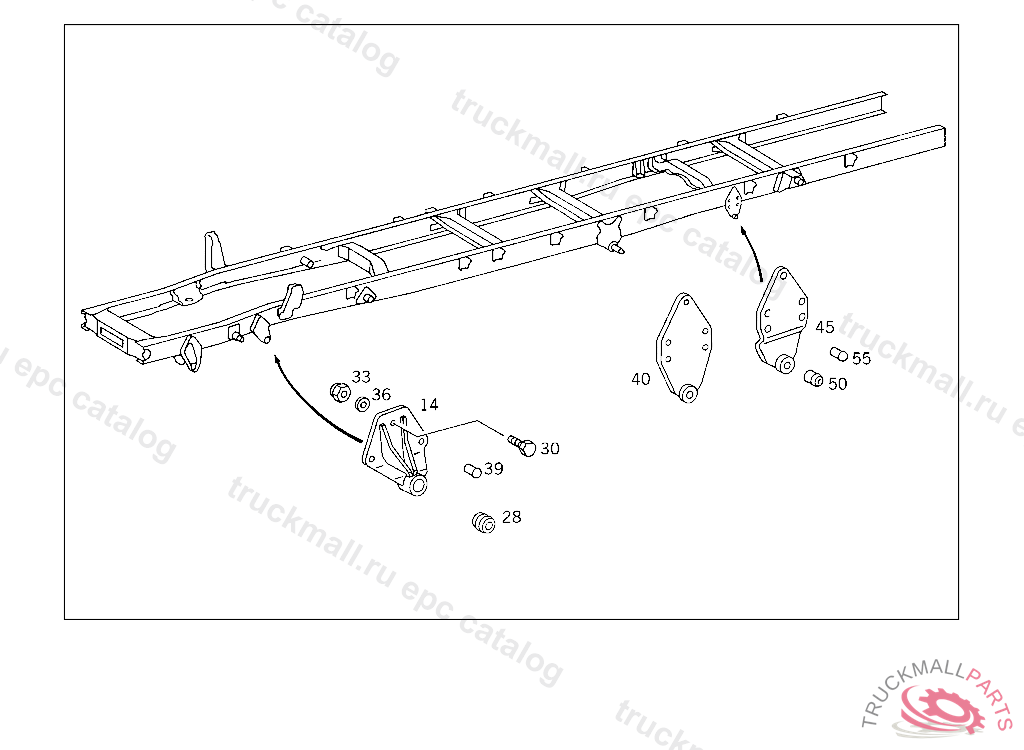

Поз.
Артикул
Описание
14
CONSOLE TORSION BAR,FRONT
14
CONSOLE TORSION BAR,FRONT
14
CONSOLE TORSION BAR,FRONT
28
BEARING SHACKLE TO FRAME
30
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
30
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
30
SCREW , Replaced By: N308676012026
30
HEXAGON HEAD BOLT , Replaced By: A0029902704
30
SCREW , Replaced By: N308676012013
30
SCREW LEFT AND RIGHT CONSOLES TO CAB
30
SCREW BRACKET TO FRAME M 12X35
30
SCREW BRACKET TO FRAME M 12X35
33
NUT , Replaced By: N910113012003
33
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
33
NUT SUPPORT TO SIDE MEMBER
36
WASHER
39
RIVET REAR CROSS MEMBER 12X42 MM
40
CONSOLE TORSION BAR,REAR
45
CONSOLE TORSION BAR,REAR
50
BEARING TORSION BAR BEARING
50
BEARING SHACKLE TO FRAME
55
RIVET REAR CROSS MEMBER 12X42 MM
999
NUT STRAP TO SUPPORT
999
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
999
SCREW STRUT TO FRAME, RIGHT
