Поз.
Артикул
Описание

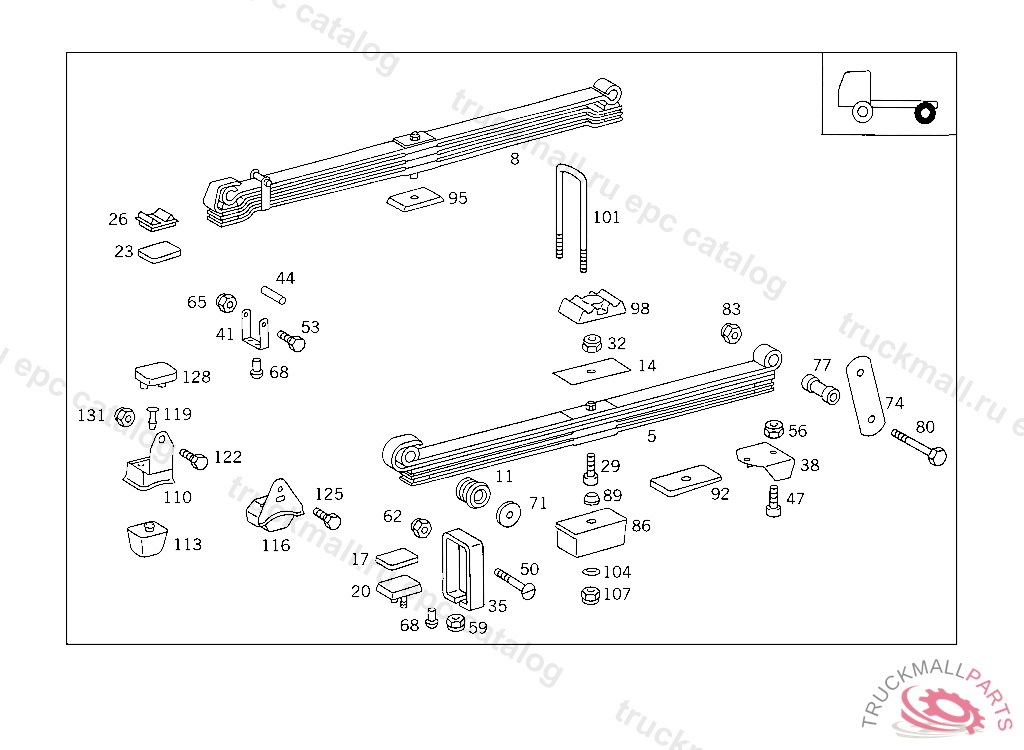

5
REAR SPRING (SUPPORTING SPRING),3 LEAVES
5
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6753203106
11
BUSHING SPRING EYE,REAR
11
BUSHING SPRING EYE,FRONT
14
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
14
SHIM , Replaced By: A9703210184
14
SHIM , Replaced By: A9703210184
17
SHIM BETWEEN THE SPRING LEAVES
20
RUBBER BUFFER
26
RUBBER BUFFER BETWEEN THE SPRING EYES
29
SPRING BOLT
32
NUT , Replaced By: N910113012005
32
HEXAGON NUT. NUT SPRING BOLT
35
SPRING CLAMP AT SPRING LEAF NO.5
35
SPRING CLAMP , Replaced By: A6763210033
59
NUT , Replaced By: N913004008001
59
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
71
THRUST WASHER REAR SPRING TO REAR SPRING FRONT BRACKET
74
SHACKLE (SPRING SHACKLE)
74
SHACKLE ,5 078346 THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY THE SET, Replaced By: A6733250620
77
BUSHING REAR SPRING TO REAR SPRING REAR BRACKET
80
SCREW CONTROL ARM TO REAR SPRING REAR BRACKET
83
NUT , Replaced By: N910113018004
83
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
86
SHIM REAR SPRING,5 3618875 437116
86
SHIM ,5 361886, Replaced By: A6743220484, +001A3229910060
89
DOWEL PIN , Replaced By: A6749910060
89
DOWEL PIN (CENTERING CONE),5 361886
89
DOWEL PIN BETWEEN SPRING AND FRONT AXLE
98
PLATE REAR SPRING TO REAR AXLE
101
U-BOLT REAR SPRING TO REAR AXLE 320 MM
104
WASHER FRONT SPRINGS TO FRONT AXLE
107
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
110
BRACKET AXLE STOP
110
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6733200243
113
HELPER SPRING RUBBER BUFFER
119
PIN RUBBER BUFFER
122
SCREW , Replaced By: N304017010002
122
SCREW BRACKET TO SIDE MEMBER
128
SHIM , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 532118, Replaced By: A6753250484
128
SHIM BRACKET TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
131
NUT , Replaced By: N910113010000
131
NUT STRAP TO BRACKET
