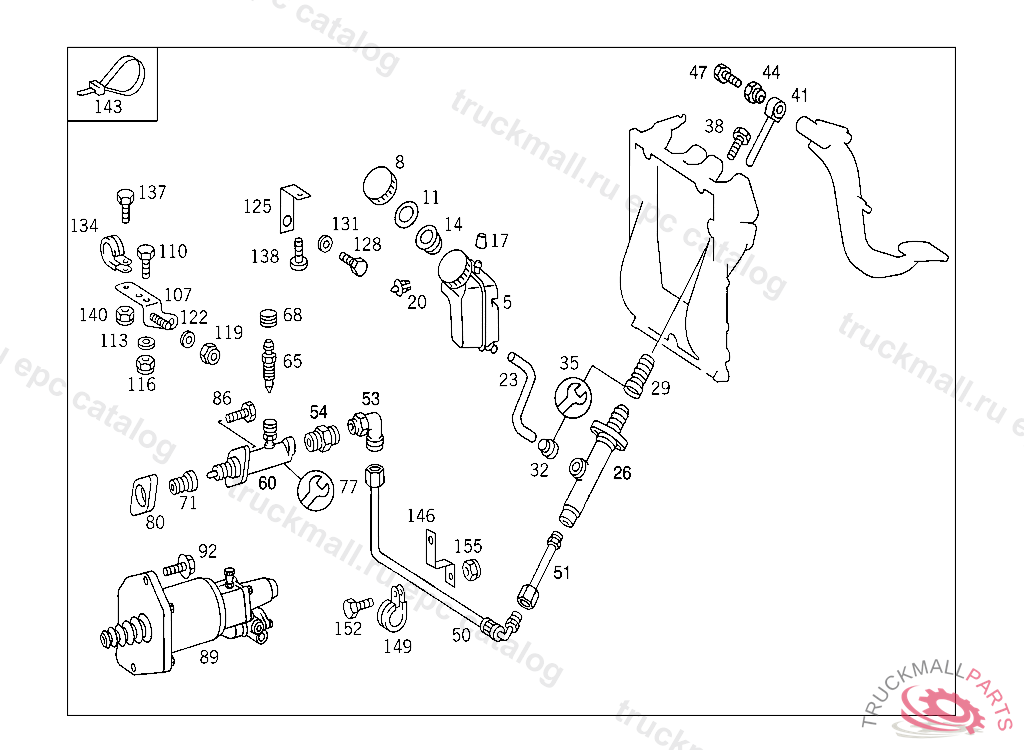

Поз.
Артикул
Описание
5
RESERVOIR EXPANSION TANK
8
LOCKING CAP
11
SEAL RING
14
STRAINER
17
CAP RESERVOIR DE-AERATION
20
RIVET RESERVOIR TO FIRE WALL
23
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
26
MASTER CYLINDER CLUTCH
26
MASTER CYLINDER , Replaced By: A0012959606
26
MASTER CYLINDER CLUTCH,K 032902
29
BOOT
32
PLUG
35
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER,5 366604
38
SCREW COVER PLATE TO BRACKET
41
ROD CLUTCH MASTER CYLINDER,5 366604
44
BUSHING PISTON ROD TO CLUTCH PEDAL
47
SCREW FITTING TO TRANSMISSION M8X32
50
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
50
PIPE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER,K 032903
50
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
50
PIPE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER,K 032903
50
50
51
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE
53
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
54
FITTING
60
SLAVE CYLINDER CLUTCH,5 599536
65
VALVE CLUTCH SLAVE CYLINDER
68
PROTECTIVE CAP , Replaced By: A0004217187
71
BOOT
77
REPAIR KIT CLUTCH SLAVE CYLINDER
80
FLANGE CLUTCH SLAVE CYLINDER,5 599536
86
SCREW BRACKET TO SIDE MEMBER
86
SCREW , Replaced By: N304017010002
86
SCREW END PIECE TO EXHAUST PIPE M 10X25
89
CLUTCH BOOSTER ,5 962907
92
SCREW CLUTCH BOOSTER TO BELL HOUSING M 10X30,5 962907
107
BRACKET CLUTCH LINE
110
SCREW SUPPORT TO FENDER
110
SCREW , Replaced By: N304017008018
113
WASHER , Replaced By: N000125008443
113
WASHER EXHAUST MUFFLER TO STRAP
116
NUT , Replaced By: N913004008001
119
NUT STRAP TO BRACKET
122
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
125
BRACKET CLUTCH LINE
128
SCREW BRACKET TO SUPPORT M 16X20
131
SPACER WASHER BRACKET TO FRAME
134
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
134
CLAMP LINE MOUNTING
137
SCREW PUMP TO BRACKET
138
SCREW CLAMP TO BRACKET
140
NUT PUMP TO BRACKET
140
NUT , Replaced By: N913004006001
143
LOOM TIE LINE MOUNTING 280 MM
146
BRACKET BRACKET ON SUPPORT,ENTRANCE,RIGHT
149
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
149
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
149
CLAMP ,K 147121, Replaced By: N000000000319
149
CLAMP PIPE ON FAN SHROUD
152
SCREW , Replaced By: N304017006020
152
SCREW LICENSE PLATE TO BRACKET
152
SCREW PUMP TO BRACKET
155
NUT PUMP TO BRACKET
155
NUT , Replaced By: N913004006001
