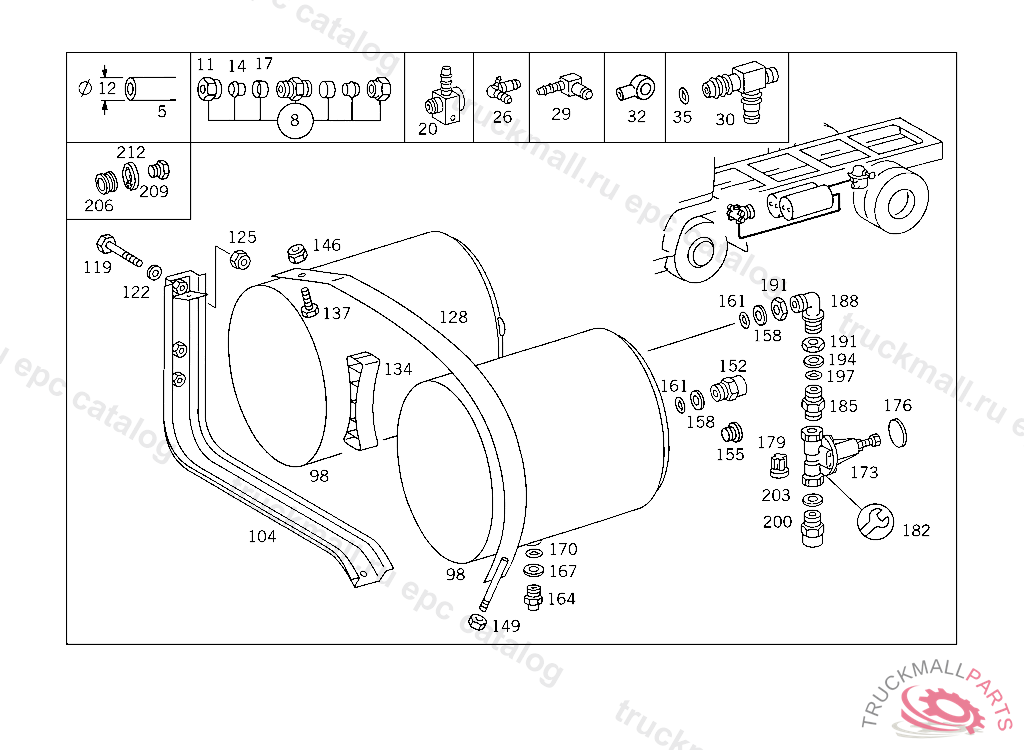

Поз.
Артикул
Описание
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
5
HOSE , Replaced By: A0009872827
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT LINE CONNECTION
11
UNION NUT LINE CONNECTION, Replaced By: N000000006239
14
GLAND , Replaced By: A0019901967
14
SEAL CONE LINE CONNECTION
17
SLEEVE LINE CONNECTION
20
CONNECTOR RELEASE BEARING LUBRICATION
20
CONNECTOR , Replaced By: A0019904078
26
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
29
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
30
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
32
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
35
SEAL RING CONNECTOR 11.8X2 MM
119
SCREW BEARING BRACKET TO FRAME
119
SCREW , Replaced By: N000961012051
122
WASHER BRACKET TO FRAME
146
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
146
NUT , Replaced By: N913004008001
146
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
149
NUT BRACKET TO SUPPORT AND TO END PIECE
152
FITTING LINE CONNECTION
155
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
155
SCREW PLUG , Replaced By: N000908022011
158
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
158
THRUST RING CHECK VALVE TO AIR RESERVOIR
161
O-RING CHECK VALVE TO AIR RESERVOIR
164
VALVE. DRAIN VALVE DRAIN
164
VALVE DRAIN, Replaced By: A0004322107
164
VALVE DRAIN, Replaced By: A0004322407
167
THRUST RING CHECK VALVE TO AIR RESERVOIR
167
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
170
O-RING CHECK VALVE TO AIR RESERVOIR
173
VALVE (OVERFLOW VALVE) WABCO
173
VALVE (OVERFLOW VALVE) GRAU
176
DIAPHRAGM
179
VALVE
182
REPAIR KITTO 001 429 52 44
188
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
191
NUT CHECK VALVE TO AIR RESERVOIR
194
THRUST RING CHECK VALVE TO AIR RESERVOIR
194
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
197
O-RING CHECK VALVE TO AIR RESERVOIR
200
FITTING LINE CONNECTION
203
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
206
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
209
SCREW. UNION SCREW LINE CONNECTION
212
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
