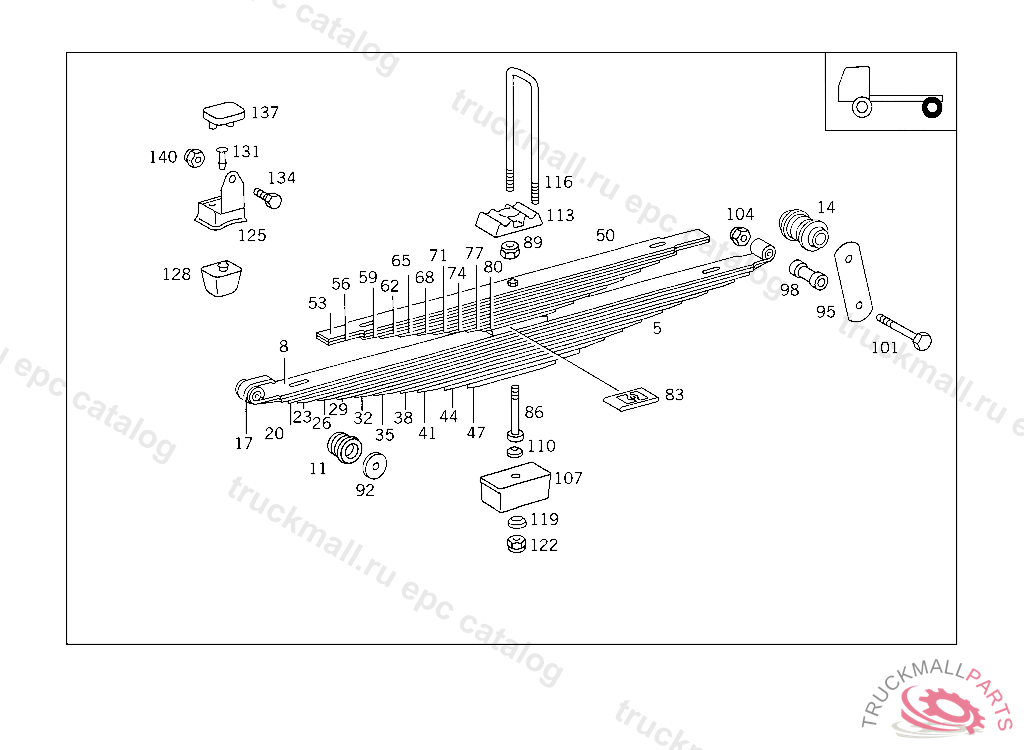

Поз.
Артикул
Описание
5
REAR SPRING 8-LEAF,WITH 8-LEAF HELPER SPRING
5
REAR SPRING 12-LEAF,WITH 10-LEAF HELPER SPRING,5 437116
8
SPRING LEAFNO.1,5 201989
8
SPRING LEAFNO.1,5 437116
14
BUSHING SPRING EYE,REAR
14
BUSHING SPRING EYE,FRONT AND REAR
17
SPRING LEAFNO.2,5 437116
17
SPRING LEAFNO.2,5 201989
20
SPRING LEAFNO.3,5 201989
20
SPRING LEAFNO.3,5 437116
23
SPRING LEAFNO.4,5 201989
23
SPRING LEAFNO.4,5 437116
26
SPRING LEAFNO.5,5 437116
26
SPRING LEAFNO.5
29
SPRING LEAFNO.6,5 201989
29
SPRING LEAFNO.6,5 437116
32
SPRING LEAFNO.7,5 437116
32
SPRING LEAFNO.7,5 201989
35
SPRING LEAFNO.8,5 201989
35
SPRING LEAFNO.8,5 201988
38
SPRING LEAFNO.9,5 437116
41
SPRING LEAFNO.10,5 201988
44
SPRING LEAFNO.11,5 437116
47
SPRING LEAFNO.12,5 437116
50
HELPER SPRING 6-LEAF
50
HELPER SPRING 8-LEAF
53
SPRING LEAFNO.1
53
SPRING LEAFNO.1,5 201988
56
SPRING LEAFNO.2,5 437116
56
SPRING LEAFNO. 2,5 201989
59
SPRING LEAFNO.3,5 437116
59
SPRING LEAFNO. 3,5 201989
62
SPRING LEAFNO.4,5 201988
62
SPRING LEAFNO. 4,5 201989
65
SPRING LEAFNO.5,5 437116
65
SPRING LEAFNO.5,5 201989
68
SPRING LEAFNO.6
68
SPRING LEAFNO.6,5 437116
71
SPRING LEAFNO.7,5 437116
71
SPRING LEAFNO.7
74
SPRING LEAFNO.8
74
SPRING LEAFNO.7,5 201988
77
SPRING LEAFNO.9,5 437116
80
SPRING LEAFNO.10,5 201988
83
SPACER BETWEEN THE SPRING LEAVES,CENTER
86
SPRING BOLT
86
SPRING BOLT ,5 437116
89
HEXAGON NUT. NUT SPRING BOLT
89
NUT , Replaced By: N910113012005
92
THRUST WASHER REAR SPRING TO REAR SPRING FRONT BRACKET
95
SHACKLE (SPRING SHACKLE)
98
BUSHING REAR SPRING TO REAR SPRING REAR BRACKET
101
SCREW , Replaced By: N000960018072
101
SCREW VIBRATION ABSORBER TO CONSOLE
104
NUT , Replaced By: N910113018004
104
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
107
SHIM REAR SPRING,5 3618875 437116
113
PLATE REAR SPRING TO REAR AXLE
116
U-BOLT REAR SPRING TO REAR AXLE 440 MM
116
U-BOLT , Replaced By: A6753510725
116
U-BOLT REAR SPRING TO REAR AXLE 480 MM
119
WASHER FRONT SPRINGS TO FRONT AXLE
122
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
122
NUT , Replaced By: N910113018004
125
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6733200243
125
BRACKET AXLE STOP
128
HELPER SPRING RUBBER BUFFER
131
PIN RUBBER BUFFER
134
SCREW BRACKET TO SIDE MEMBER
134
SCREW , Replaced By: N304017010002
137
SHIM , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 532118, Replaced By: A6753250484
137
SHIM BRACKET TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
140
NUT STRAP TO BRACKET
140
NUT , Replaced By: N910113010000
