Поз.
Артикул
Описание
5

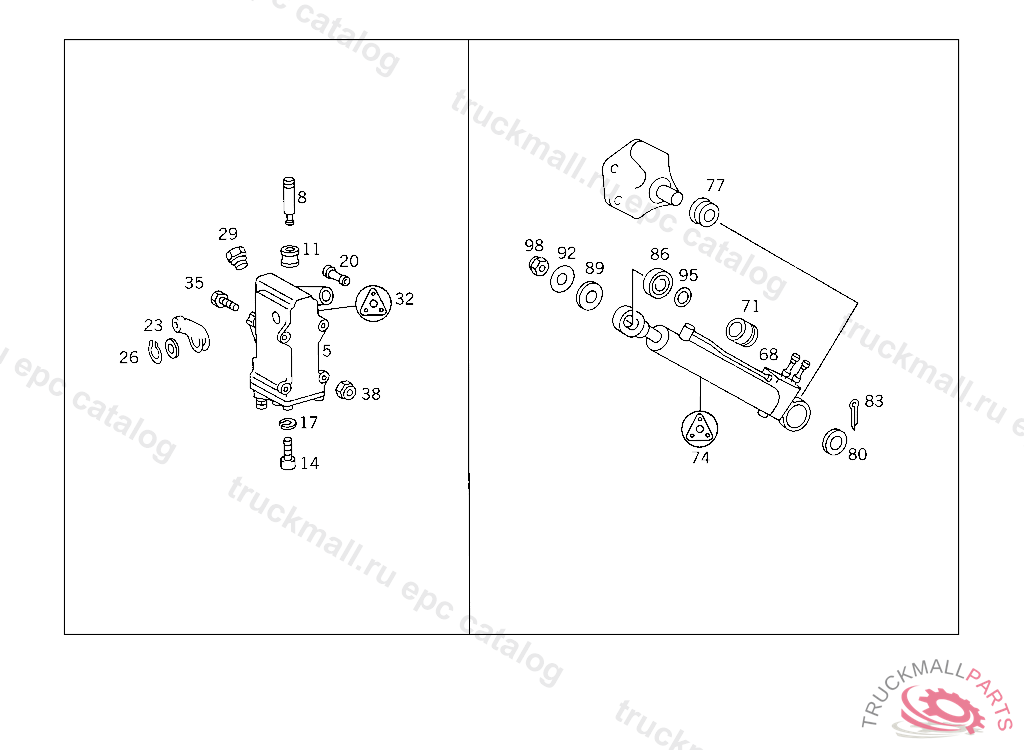

PUMP (HAND PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
5
PUMP , Replaced By: A0005537901
8
PISTONTO 000 553 39 01,WEBER
8
PISTONTO 000 553 89 01
11
VALVETO 000 553 89 01
11
VALVETO 000 553 39 01,WEBER
14
SCREW
14
SCREW , Replaced By: N000000000190
17
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
20
FILTER
23
FITTED WASHER
26
LOCK RING
29
SCREW
32
GASKET KIT HAND PUMP
32
GASKET KIT HAND PUMP TO 000 553 37 01,000 553 39 01,WEBER
35
SCREW BRACKET TO SIDE MEMBER
35
SCREW , Replaced By: N304017010002
38
NUT , Replaced By: N910113010000
38
NUT STRAP TO BRACKET
68
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING
71
GUIDETO 674 553 04 05
74
GASKET KIT HYDRAULIC CYLINDER
77
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
80
WASHER HYDRAULIC CYLINDER TO BEARING BRACKET, 387.006-154, 389.006-154, UP TO IDENT-NO. 4 646673,387.214-227, 393.311-586, 395.312-454 UP TO IDENT NO. 4 646483
80
WASHER , Replaced By: N000125025008
83
COTTER PIN6.3X63 MM
86
WASHER HYDRAULIC CYLINDER TO CAB
89
WASHER HYDRAULIC CYLINDER TO CAB
92
WASHER HYDRAULIC CYLINDER TO CAB
95
WASHER HYDRAULIC CYLINDER TO CAB
98
NUT COMBINATION CYLINDER TO BEARING BRACKET
98
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
