Поз.
Артикул
Описание
5

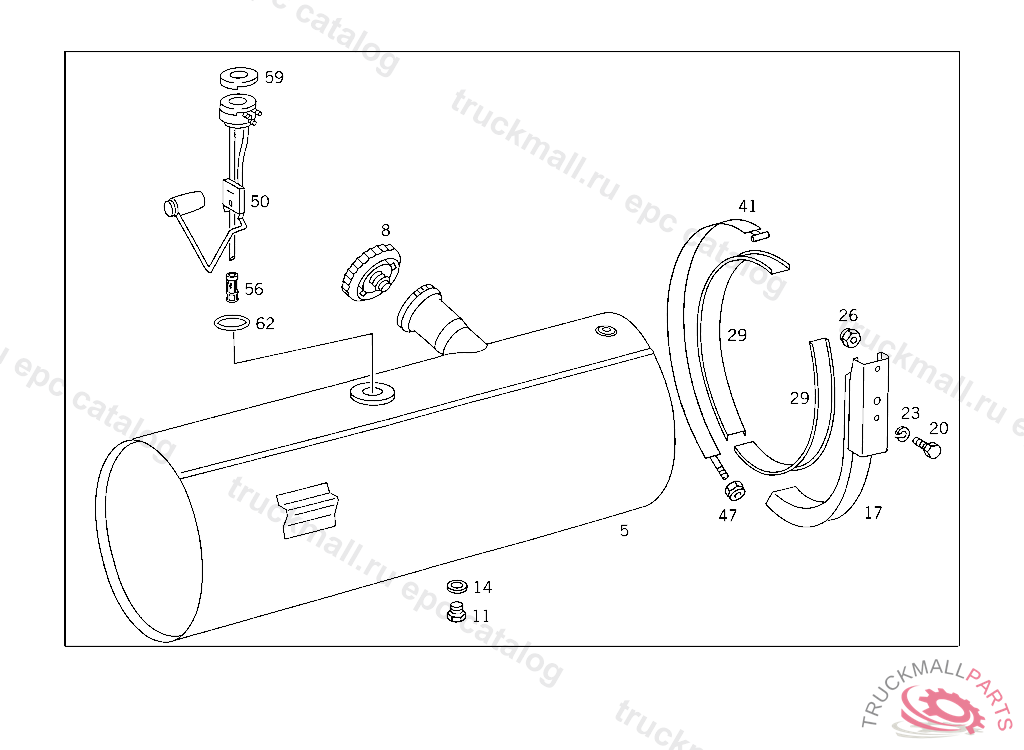

FUEL TANK210 L,B 899980
5
FUEL TANK210 L,B 899980
8
FILLER CAP
8
FILLER CAP
11
SCREW PLUG AT TANK
14
SEAL RING AT TANK
17
SUPPORT FUEL TANK
20
SCREW BATTERY CASE TO SIDE MEMBER
20
SCREW , Replaced By: N308676014012
23
LOCK WASHER SUPPORT TO SIDE MEMBER
26
NUT , Replaced By: N910113014000
29
SHIM FUEL TANK TO CONSOLE 60 MM
29
PAD SUPPORT TO SIDE MEMBER
41
STRAP , Replaced By: A3864707340, +002A6884757120
41
STRAP FUEL TANK TO SUPPORT
47
NUT FUEL TANK TO SUPPORT
50
SENDER UNIT"VDO"
50
SENDER UNIT
50
SENDER UNIT
56
FUEL STRAINERTO 386 542 74 17
56
FUEL STRAINERTO 386 542 78 17, 79 17
59
COVERING AT SENDER UNIT TO 386 542 74 17
59
COVERING AT SENDER UNIT TO 386 542 78 17
62
SEAL RING AT WATER PUMP
62
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0209971148
62
SEAL RING , Replaced By: A0249972848
