Поз.
Артикул
Описание

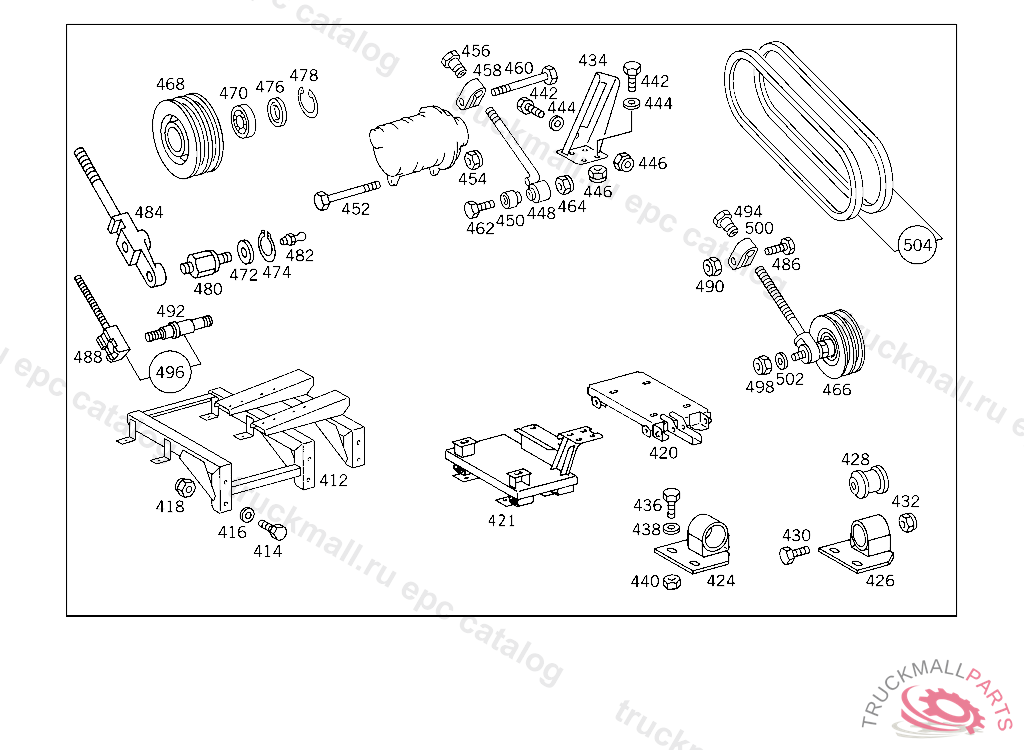

412
SUPPORT COMPRESSOR BEARING,D 127793
412
SUPPORT COMPRESSOR BEARING,D 127794
412
SUPPORT COMPRESSOR BEARING
414
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
414
SCREW BRACKET TO FRAME
416
WASHER
416
WASHER SUPPORT TO FRAME,D 127794
418
NUT ALTERNATOR TO SUPPORT
418
NUT , Replaced By: N910113014000
420
SUPPORT BELT TIGHTENER,D 124754
421
SUPPORT COMPRESSOR BEARING
424
BEARING COMPRESSOR BEARING
426
BEARING COMPRESSOR BEARING
428
BUFFER BEARING BRACKET TO CONSOLE
430
SCREW ALTERNATOR TO SUPPORT
430
SCREW BEARING BRACKET TO CONSOLE
432
NUT ALTERNATOR TO SUPPORT
434
BRACKET COMPRESSOR BEARING
434
BRACKET , Replaced By: A6645508740
436
SCREW BRACKET TO BUMPER,LEFT M 10X25
438
WASHER GROUND CABLE
440
NUT BRACKET TO FRAME
442
SCREW , Replaced By: N304017010040
444
WASHER GROUND CABLE
446
NUT BRACKET TO SIDE MEMBER,XB209706
448
CLAMPING BOLT ALTERNATOR TO SUPPORT
450
BUSHING
452
SCREW ALTERNATOR TO SUPPORT
454
NUT ALTERNATOR TO SUPPORT
456
NUT ALTERNATOR
456
NUT TIGHTENER PULLEY TO LEVER
458
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
460
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
462
SCREW CLAMPING BOLT TO BRACKET
464
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
466
TIGHTENER PULLEY
468
PULLEY BELT TIGHTENER
470
GROOVED BALL BEARING BELT TIGHTENER
472
SPACER WASHER BELT TIGHTENER 0.50 MM
472
SPACER WASHER BELT TIGHTENER 0.20 MM
472
SPACER WASHER BELT TIGHTENER 0.20 MM
472
SPACER WASHER BELT TIGHTENER 1.00 MM
472
SPACER WASHER BELT TIGHTENER 1.00 MM
472
SPACER WASHER BELT TIGHTENER 0.20 MM
474
LOCK RING BELT TIGHTENER
476
SPACER TUBE BELT TIGHTENER
478
LOCK RING BELT TIGHTENER
480
PIN BELT TIGHTENER,D 124753
482
GREASE NIPPLE INTERMEDIATE LEVER
484
SUPPORT BELT TIGHTENER,D 124753
486
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
486
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
488
SUPPORT BELT TIGHTENER
490
NUT ALTERNATOR TO SUPPORT
492
PIN BELT TIGHTENER
494
NUT ALTERNATOR
494
NUT TIGHTENER PULLEY TO LEVER
496
TIGHTENER PULLEY BELT TIGHTENER
498
NUT , Replaced By: N910113014000
498
NUT TIGHTENER PULLEY TO LEVER M16X1,5,D 124754
498
NUT TIGHTENER PULLEY TO LEVER M16X1,5,D 124754
500
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
502
WASHER
502
WASHER TIGHTENER PULLEY TO LEVER,D 124754
502
WASHER , Replaced By: N000125017016
504
V-BELT SET2 PIECES
504
V-BELT SET2 PIECES
999
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
999
TEST CONNECTION
999
BANJO UNION AIR RESERVOIR, NOT USED
999
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
FITTING DELIVERY LINE TO PUMP
999
MUFFLER (INTAKE MUFFLER)
999
SCREW AIR RESERVOIR
999
CLAMP , Replaced By: A3129952420
999
BRACKET AT CROSS MEMBER,D 030553
999
CLAMP , Replaced By: A1109950401
999
BRACKET AT CROSS MEMBER
999
LINE FROM OIL PUMP TO HIGH PRESSURE HOSE
999
LINE FROM HOSE TO OIL PUMP
999
CLAMP HOSE TO FILLER NECK
999
CONNECTOR AIR RESERVOIR
999
BRACKET COMPRESSED AIR LINE, BRAKE
999
LINE FROM HOSE TO POWER STEERING PUMP
999
STRAP FUEL TANK TO SUPPORT
999
SHIM BRAKE ANCHOR
999
LOOM TIE LINE TO BRACKET 508 MM
999
FITTING SOLENOID VALVE,CONNECTION: "2"
999
REINFORCEMENT BRACKET TO CROSS MEMBER,024208
999
FITTING POWER STEERING PUMP M16X1,5/M22X1,5,D 084765
999
CLAMP , Replaced By: A6739950001
999
LOCKING CAP AIR COMPRESSOR
999
THROTTLE HOUSING EXHAUST BRAKE
999
FRAME
999
CROSS MEMBER
999
CROSS MEMBER
999
CROSS MEMBERNR.8, NOT USED
999
ROD
999
ROD
999
LINE FROM FITTING TO CONNECTION FITTING
999
LINE FROM FITTING TO PRESSURE REGULATOR
999
VALVE
999
SCREW
999
SCREW
999
RET ELECTRONICS
999
LINE
999
LINE
999
SUPPORT
999
FLEXIBLE SHAFT RETARDER
999
COUPLER RETARDER
999
SCREW
999
SPACER RING
999
SNAP RING
999
SPRING LEAF CAB SUSPENSION
999
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15 MM,1B 936133
999
CONSOLE FUEL TANK,FRONT AND REAR
999
BRACKET BREATHER LINE TO REAR AXLE
999
LOCKING SPRING COUPLING PIN
999
LINE ,B 936133
999
LINE FROM PUMP TO HIGH PRESSURE HOSE
999
PAD FUEL TANK TO CONSOLE
999
BRACKET LINE TO REAR AXLE, NOT USED
999
FUEL TANK , Replaced By: A3884706901, +001A0004700605
999
SWITCH
999
LINE SUCTION LINE TO OIL PUMP
999
SHIFTING ROD AIR SPRING VALVE TO BRACKET
999
HOSE
999
HOLLOW SHAFT
999
LINE
999
SCREW
999
LINE
999
SENDER UNIT
999
WASHER
999
SCREW , NOT USED
999
LOCK
999
BUFFER REFRIGERANT LINE TO CAB
999
PROTECTIVE PLATE COMPRESSED AIR LINES
999
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15 MM,B 936133
999
LINE , Replaced By: A6824208836
999
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15 MM
999
BRACKET
999
LINE FROM PUMP TO HIGH PRESSURE HOSE
999
LINE FROM OIL TANK TO SUCTION LINE
999
EXHAUST PIPE FRONT EXHAUST PIPE TO MUFFLER,B 884219
999
PANELLING RADIATOR,FRONT,B 884220
999
BRACKET DISTRIBUTOR
999
FILLER CAP , Replaced By: A3888937003
999
CAP STEERING WHEEL TO A 695 464 70 01, .......INO.9985I I I II I
999
SENDER UNIT FUEL GAUGE
999
NUT FUEL TANK TO SUPPORT
999
SCREW BATTERY CASE
999
SEAL RING FUEL LINE TO FEED PUMP
999
BANJO UNION
999
HOLLOW SCREW , Replaced By: N915036010108
