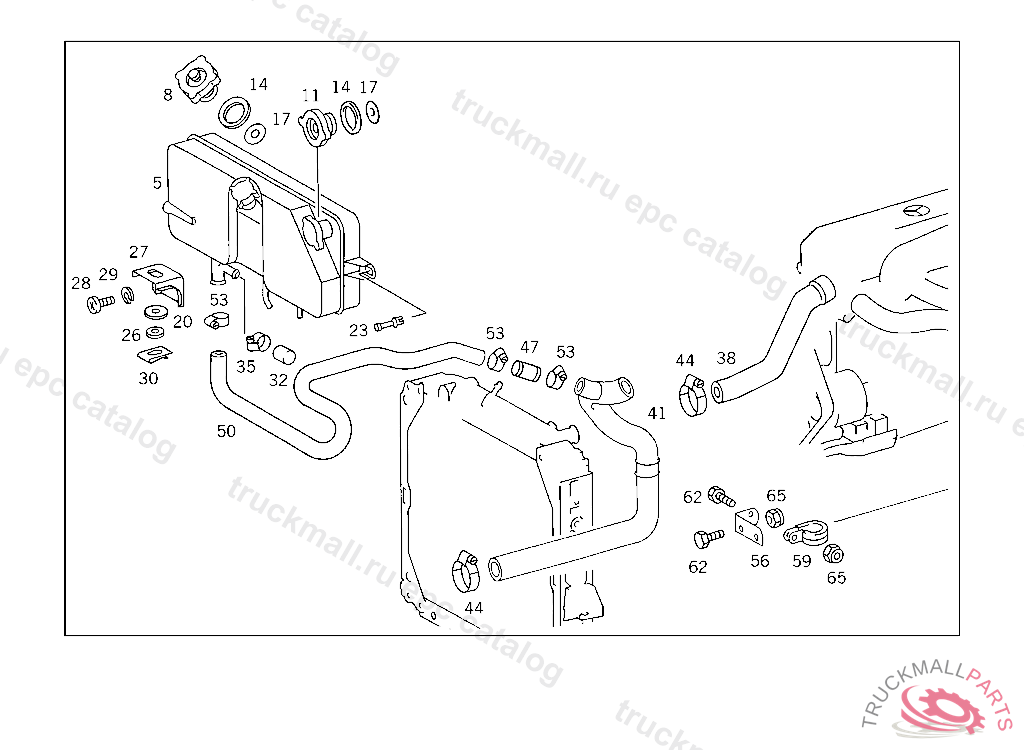

Поз.
Артикул
Описание
5
TANK EXPANSION TANK
5
TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 941451, Replaced By: A6745000049, +001A6745012082, +001A6745012182
8
RADIATOR CAP FILLER NECK
11
RADIATOR CAP
14
GASKET O.D., 52 MM
17
GASKET O.D., 37 MM
20
RUBBER MOUNTING RESERVOIR TO CAB FRONT PANEL
23
RIVET COOLANT LINE ON FAN SHROUD
26
WASHER , Replaced By: N000125017016
27
BRACKET , Replaced By: A6736250214
27
BRACKET RESERVOIR TO CAB FRONT PANEL
28
SCREW RESERVOIR TO CAB FRONT PANEL M 6X12
29
LOCK WASHER CABLE TO FUSE BOX
30
CLIP RESERVOIR TO CAB FRONT PANEL
30
LOCK AT WATER EXPANSION TANK
32
LOCKING CAP AT WATER EXPANSION TANK
35
LOOM TIE HOSE TO HEATING PIPE
35
CLAMP HOSE TO HEATING PIPE
38
HOSE FROM RADIATOR TO THERMOSTAT,5 463262
41
HOSE FROM RADIATOR TO WATER PUMP
41
HOSE ,5 422712K 053730
44
LOOM TIE HOSE TO FILLER NECK
47
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
50
HOSE RETURN LINE AUXILIARY RADIATOR ON ENGINE, TO BE ADAPTED DURING ASSEMBLY
53
CLAMP HOSE TO FILLER NECK
53
LOOM TIE HOSE TO FILLER NECK
56
BRACKET , Replaced By: A6765010320
59
CLAMP FROM MOLDED HOSE TO WATER PUMP
59
CLAMP HOSE TO BRACKET,5 4227125 484924
62
SCREW PLUG SOCKET TO FRAME
65
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
65
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
