Поз.
Артикул
Описание

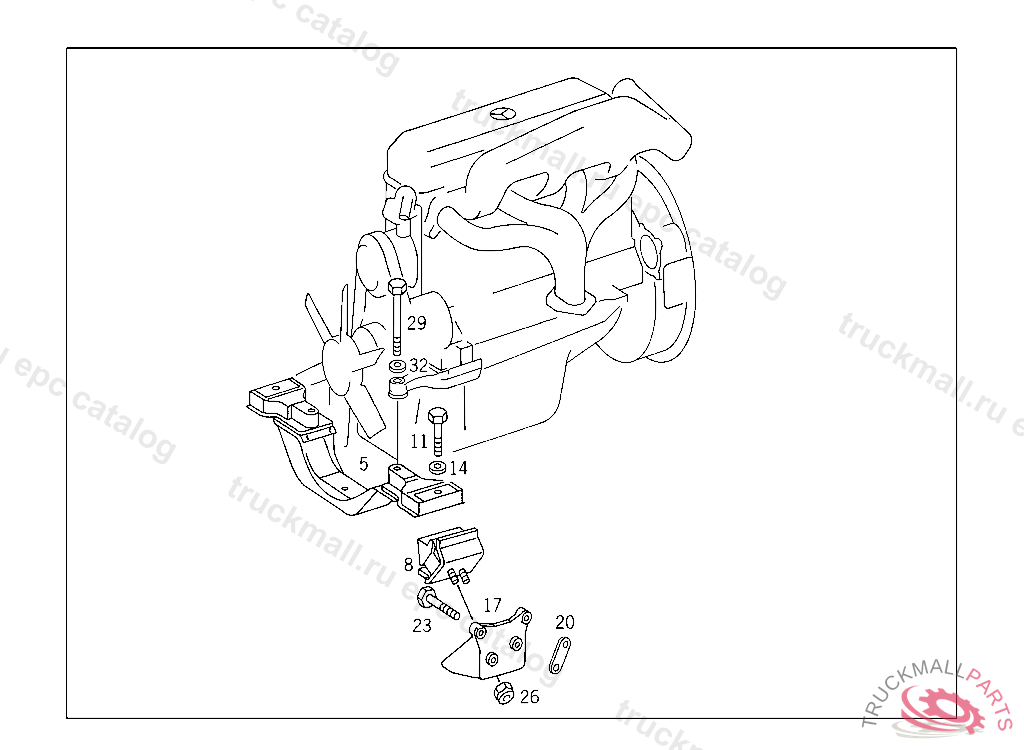

5
ENGINE SUPPORT ENGINE FRONT SUSPENSION
8
RUBBER MOUNTING ENGINE SUSPENSION
8
RUBBER MOUNTING FRONT,D 034635
8
RUBBER MOUNTING FRONT,D 034635
8
RUBBER MOUNTING FRONT,D 034636
11
SCREW BEARING BRACKET AND PLATE TO FRAME M 16X1.5X40
14
WASHER CONSOLE TO FRAME
17
SUPPORT FRONT LEFT,D 034635
17
CONSOLE FRONT RIGHT,D 034636
17
SUPPORT FRONT RIGHT
17
CONSOLE FRONT LEFT,D 034636
20
SHIM LEFT AND RIGHT CONSOLES TO SUBSTRUCTURE
23
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
23
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
23
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
23
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
26
NUT ALTERNATOR TO SUPPORT
29
SCREW , Replaced By: N308676016014
32
WASHER CONSOLE TO FRAME
999
SHIM FRONT LEFT AND RIGHT,D 034636
999
ENGINE STAY RUBBER MOUNTING TO FRONT CROSS MEMBER
