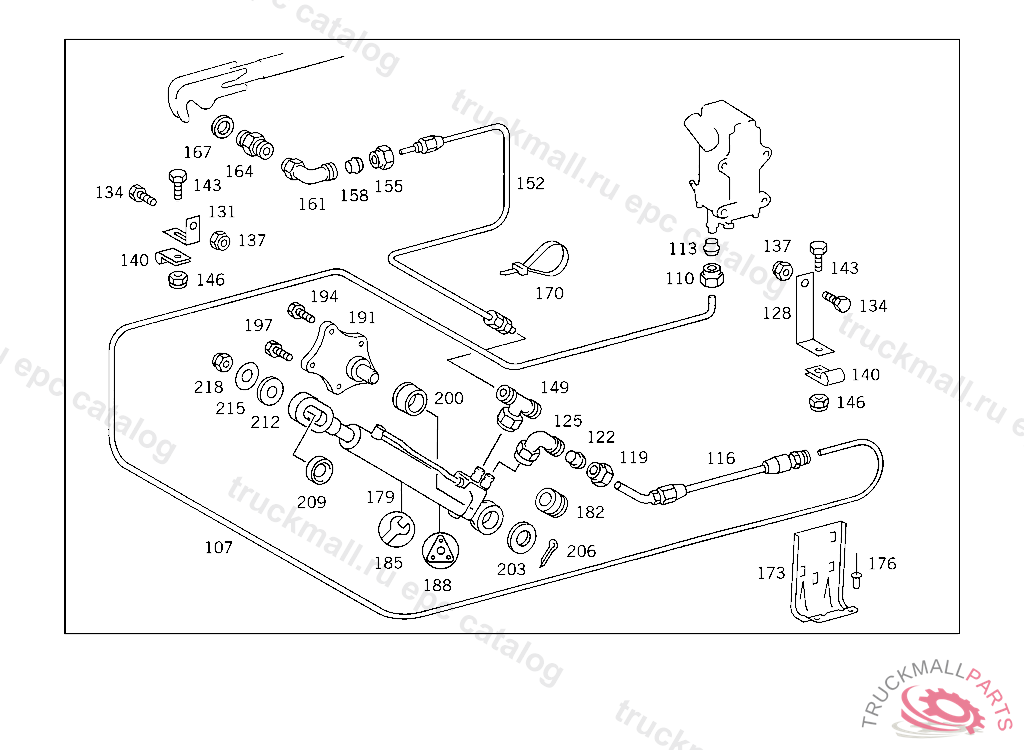

Поз.
Артикул
Описание
107
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
110
UNION NUT
113
GLAND , Replaced By: A0019901667
116
HOSE FROM HYDRAULIC LINE TO CYLINDER
119
UNION NUT
122
GLAND , Replaced By: A0019901667
125
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
125
FITTING , Replaced By: A0019909871
128
BRACKET SUCTION LINE
134
SCREW , Replaced By: N304017008034
137
NUT , Replaced By: N913004008001
140
CLAMP LINE MOUNTING
143
SCREW COVER PLATE TO BRACKET
146
NUT , Replaced By: N913004006001
149
T-FITTING. FITTING AT INJECTION PUMP
152
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
155
UNION NUT
158
GLAND , Replaced By: A0019901667
161
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
161
FITTING , Replaced By: A0019909871
164
FITTING 3/2-WAY VALVE,CONNECTION: "30"
167
SEAL RING , Replaced By: N007603010110
170
LOOM TIE LINE MOUNTING
173
BRACKET HIGH PRESSURE HOSE TO CAB
176
RIVET , NOT USED
179
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
179
CYLINDER , Replaced By: A0015539505
179
CYLINDER , Replaced By: A0015533505
182
GUIDEWEBER
185
GUIDE , Replaced By: A0015534905
188
GASKET KIT HYDRAULIC CYLINDER WEBER
188
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
191
BEARING BRACKET HYDRAULIC CYLINDER
194
SCREW HYDRAULIC CYLINDER TO BEARING BRACKET M 12X22
197
SCREW SUPPORT TO FRAME M 14X32,5 129244
200
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
203
WASHER HYDRAULIC CYLINDER TO CAB
206
COTTER PIN6,3X36 MM
209
WASHER HYDRAULIC CYLINDER TO CAB
212
WASHER HYDRAULIC CYLINDER TO CAB
215
WASHER HYDRAULIC CYLINDER TO CAB
218
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
