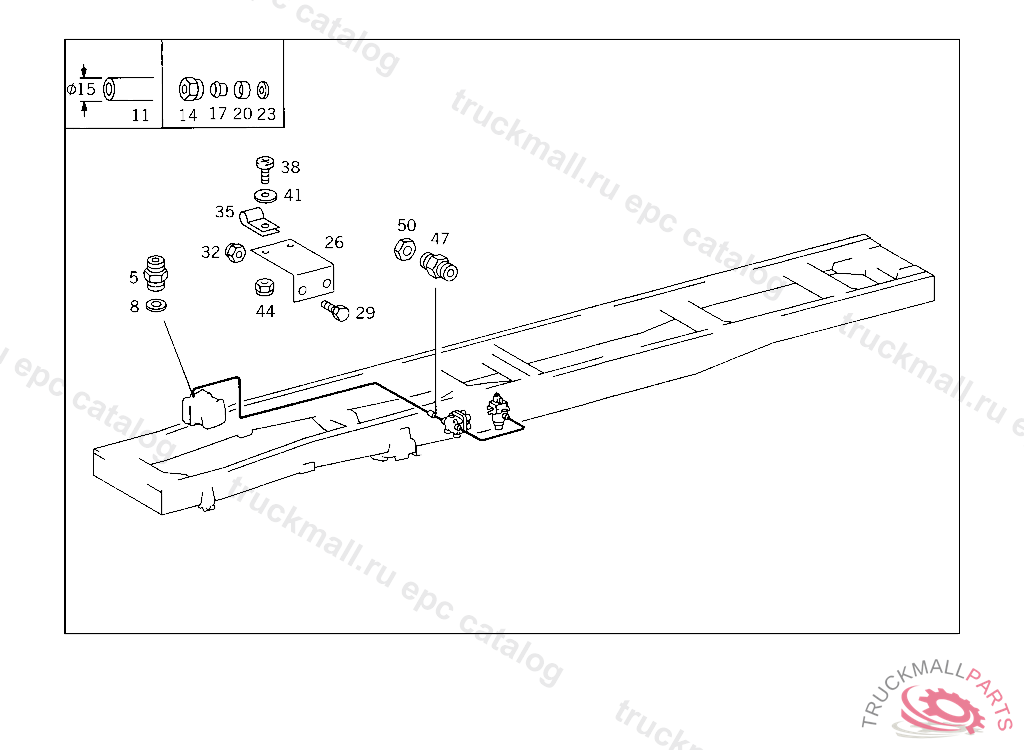

Поз.
Артикул
Описание
5
FITTING AIR RESERVOIR,CONNECTION: "13"
8
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
11
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
14
UNION NUT BUTT SCREW CONNECTION
17
GLAND LINE CONNECTION
20
THRUST RING BUTT SCREW CONNECTION
23
SEAL RING , Replaced By: N007603012121
26
BRACKET COMPRESSED AIR LINES
29
SCREW , Replaced By: N308676014020
32
NUT , Replaced By: N910113014001
35
CLAMP , Replaced By: A6739950001
38
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
41
WASHER , Replaced By: N009021006208
44
NUT , Replaced By: N913004006001
47
FITTING SHUTTLE VALVE,CONNECTION: "20"
50
NUT CHECK VALVE TO AIR RESERVOIR
