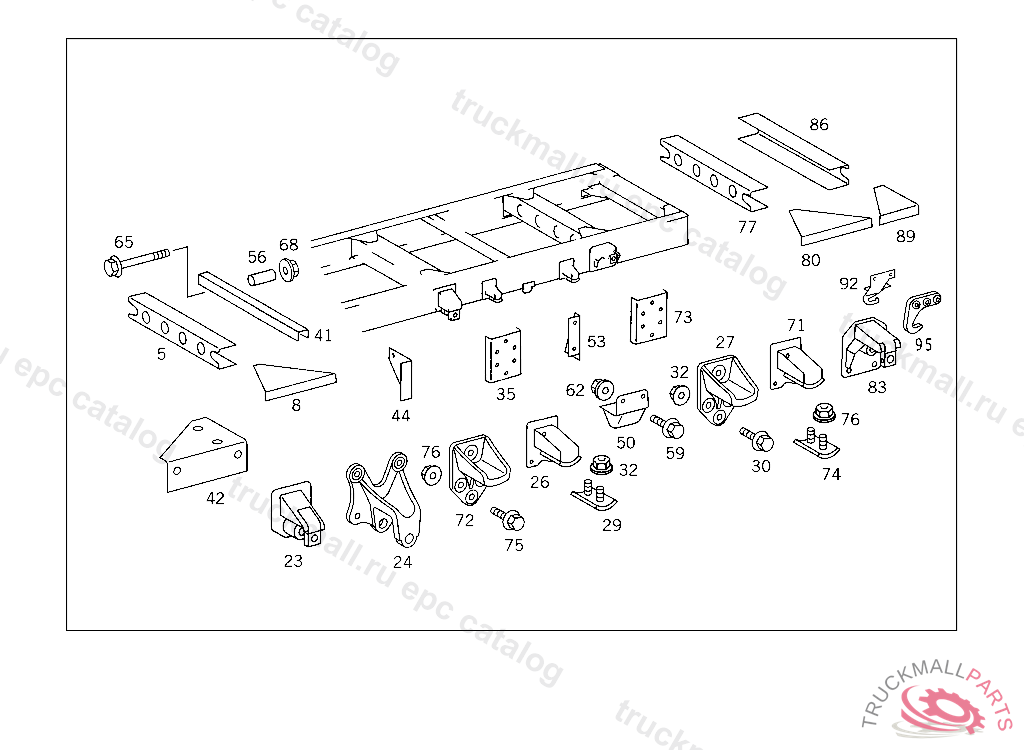

Поз.
Артикул
Описание
5
CROSS MEMBERNO.4
5
CROSS MEMBERNO.5,002447
8
ANGLE CROSS MEMBER TO SIDE MEMBERS
8
ANGLENO.3
23
SPRING BRACKET FRONT
24
REAR SPRING BRACKET FRONT
26
HELPER SPRING BRACKET FRONT,001316
27
HELPER SPRING BRACKET REAR
29
PLATE REAR,001316
30
SCREW EXHAUST PIPE TO SIDE MEMBER
32
NUT EXHAUST PIPE TO SIDE MEMBER
35
STIFFENING HELPER SPRING BRACKET
41
CROSS MEMBERNO.6,001317
42
ANGLE RIGHT
42
ANGLE LEFT,001317
44
ANGLE LEFT
44
ANGLE RIGHT,001317
50
STOP REAR SPRING,001316
53
STIFFENING LEFT,001316
53
STIFFENING RIGHT,001317
56
SPACER TUBE (CROSS MEMBER),001317
56
SPACER TUBE (CROSS MEMBER),001316
59
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
62
NUT EXHAUST PIPE TO SIDE MEMBER
65
SCREW EXHAUST PIPE TO EXHAUST MANIFOLD
68
NUT BRACKET TO BEARING BRACKET
71
HELPER SPRING BRACKET REAR,001316
72
HELPER SPRING BRACKET FRONT
73
STIFFENING HELPER SPRING BRACKET
74
PLATE REAR,001316
75
SCREW EXHAUST PIPE TO SIDE MEMBER
76
NUT EXHAUST PIPE TO SIDE MEMBER
77
CROSS MEMBERNO.4
80
ANGLE CROSS MEMBER TO SIDE MEMBERS
83
REAR SPRING BRACKET REAR
86
CROSS MEMBER (REAR CROSS MEMBER)
89
ANGLE RIGHT
89
ANGLE LEFT
95
TOW HOOK
